Link Bridge LBC-SPH8-1H7B-EIR 1x7 HDMI Splitter to 1 HDMI & 7 HDBaseT

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

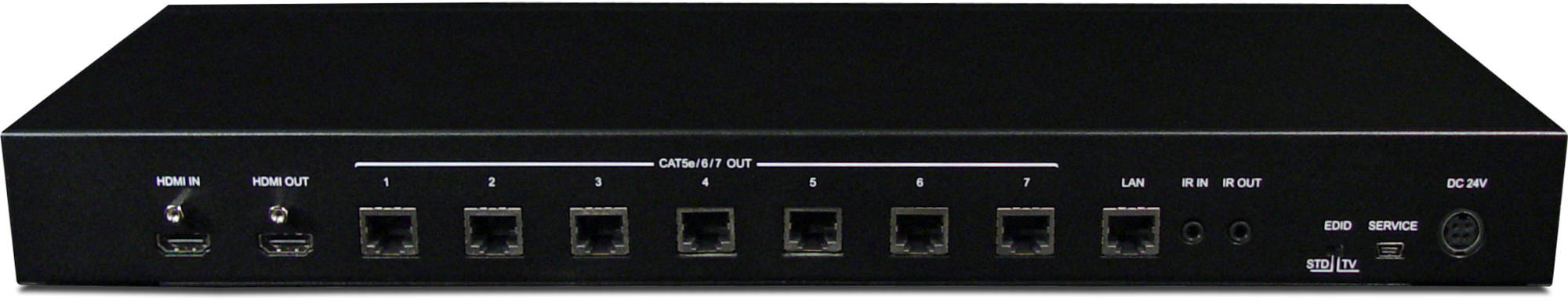

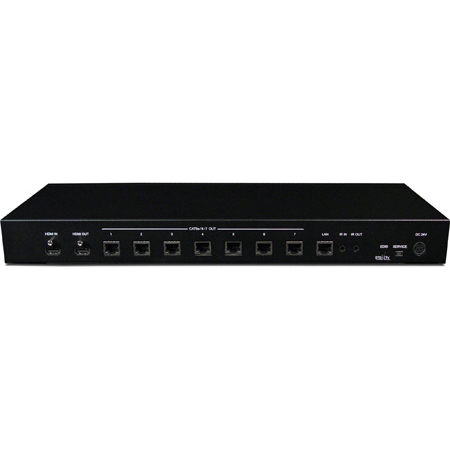

    Link Bridge LBC-SPH8-1H7B-EIR 1x7 HDMI Splitter to 1 HDMI & 7 HDBaseT

    Item #: BD-LBCSPH81H7BEI   •   MFG #: LBC-SPH8-1H7B-EIR



    List Price:$2,666.40
    Our Price:$1,859.00

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The LBC-SPH8-1H7B-EIR is a Link Bridge 1x7 HDMI Splitter to 1 HDMI & 7 HDBaseT that extends HDMI Signals up to 100 meters Over One CAT 5e/6 Cable. The unit provides 7x HDBaseT output transmission ports and supports 4K2K & Full HDTV Video Resolutions up to 720p/1080i/[email protected] Hz.

      The LBC-SPH8-1H7B-EIR features fully Uncompressed Video & Audio Provides Zero Loss of Quality and Video/Audio+IR+LAN, Over 1 CAT 5e/6 Cable. It supports True DDC/EDID/HDCP Transmission Over One Ethernet Cable, PoC (Power over Cable) with compatible receivers, and network rates up to 100Mbps and IR Control Data.


      • Features

        • Extend HDMI Signals up to 100 meters Over One CAT 5e/6 Cable
        • Supports 4K2K & Full HDTV Video Resolutions up to 720p/1080i/[email protected] Hz
        • Fully Uncompressed Video & Audio Provides Zero Loss of Quality
        • Supports True DDC/EDID/HDCP Transmission Over One Ethernet Cable
        • Video/Audio+IR+LAN, Over 1 CAT 5e/6 Cable
        • Supports PoC (Power over Cable) with compatible receivers
        • Provides 7x HDBaseT output transmission ports
        • Supports network rates up to 100Mbps and IR Control Data

      • Specifications

        • Video/Audio
        • HDMI: Version 1.4 with 3D, 4Kx2K support
        • Video Resolution: 4K2K & up to [email protected] or [email protected]
        • Protocol: DDC/EDID/HDCP Capable
        • Video Bandwidth: 340MHz / 10.2Gbps
        • Audio Operating Mode: Stereo Audio
        • Audio Formats: Supports up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
        • Audio Sampling Rate: 32KHz to 192KHz
        • HDMI/Audio Connector: HDMI Female plug

          Data
        • Network: LAN
        • Data Rate: 100Mbps
        • Connector: RJ45
        • IR Control: Infrared
        • Data Rate: 30 - 50KHz
        • In/Out Connectors: 3.5mm Stereo

          HDBT Transmission
        • Cable Type: CAT 5e/6 or higher
        • Number of Cables: 1
        • Connector/ Distance: 7x RJ-45 / Up to 100m

          Physical
        • Dimensions (W x D x H): 17.02" x 6.45" x 1.69"
        • Power Consumption: +24VDC @ 6.25 Amps (Max.)
        • Operating Temperature: 0 to +40°C
        • Humidity: 20 to 90% RH, Non-Condensing
