BirdDog BDP200B-EDU P200 1080P NDI 30x PTZ Camera and Software Education Bundle - Black

ITEM #: BDS-BDP200B-EDU MFG #: BDP200B-EDU

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    BDP200B-EDU - Overview

    BirdDog P200 PTZ Camera and Software Education Bundle

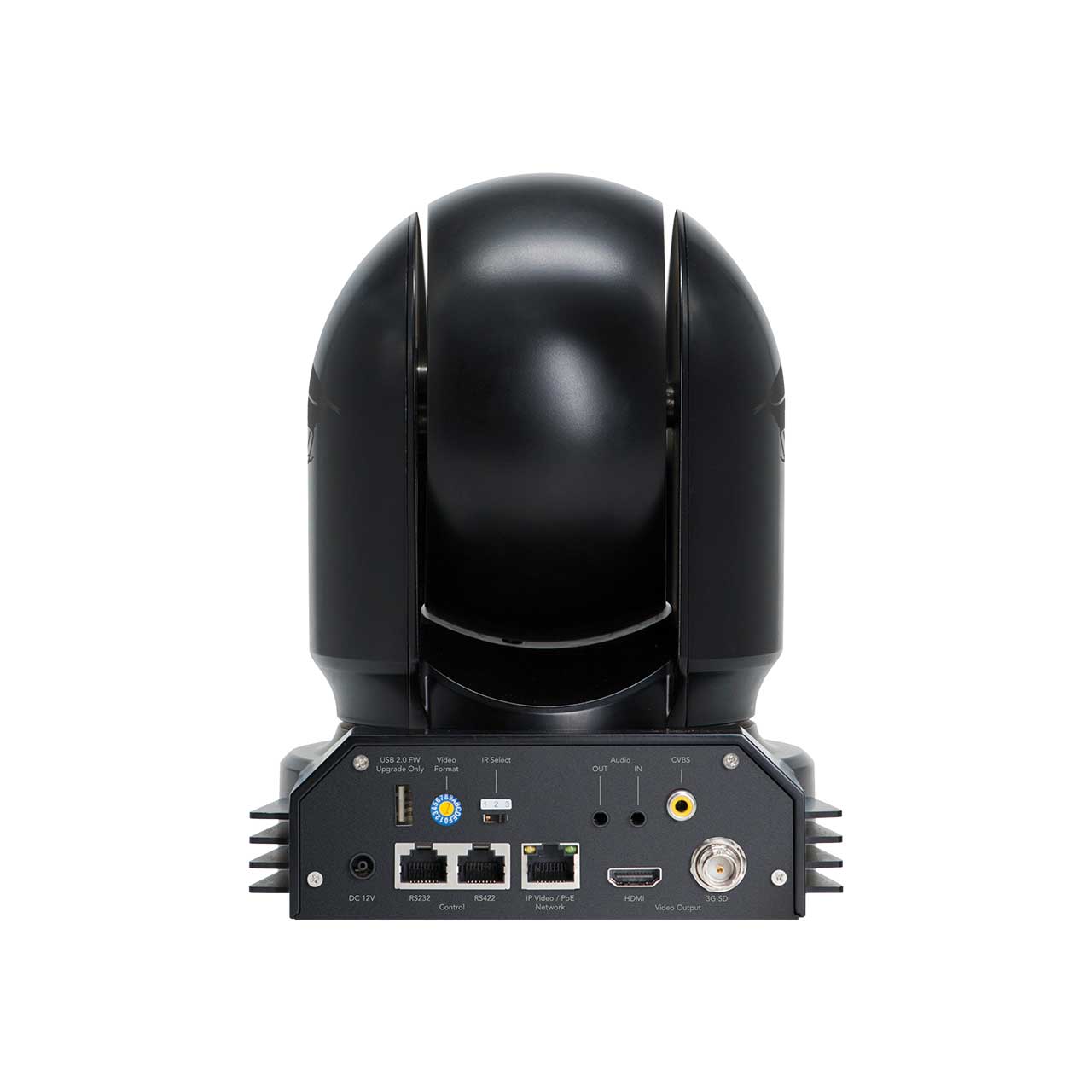

    The BDP200B PTZ camera utilizes BirdDog's custom NDI silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.

    Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI simultaneously. 3.5mm audio connectors allow P200 to work with BirdDog Comms, the world's first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.

    P200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. P200 can also be used as a traditional PTZ camera with SDI, RS422, RS485, and RS232 control allowing you to move into the world of NDI when you are ready.

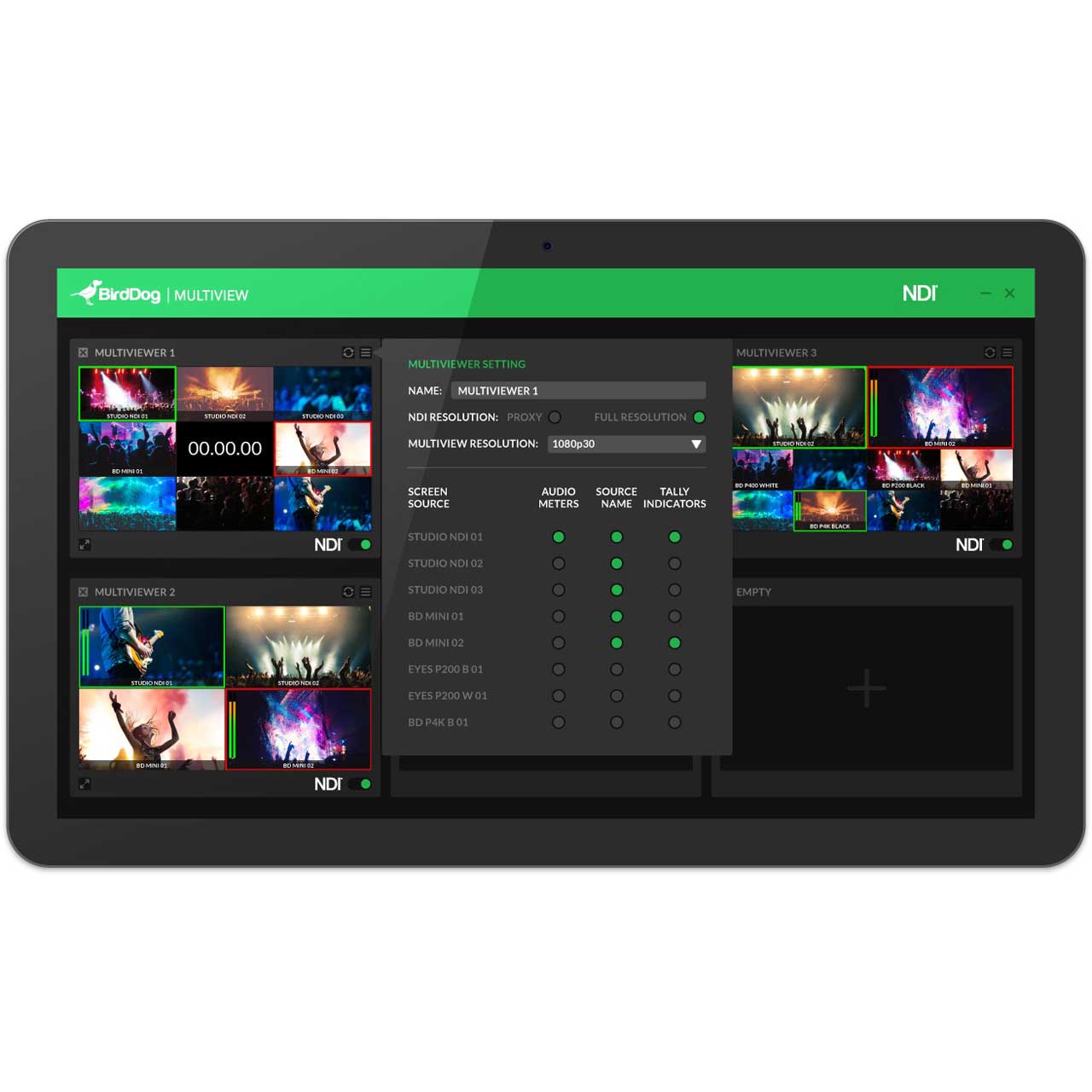

    Create NDI Multiviews in Seconds with Multiview Pro License.
    NDI Multiview Pro supports up to 6 Multiview outputs and each can be independently configured with any of the 5 preset layouts. Choose between full screen, 2x2, 3x3, 4x4 and the traditional 2&8 (two large and eight small windows). With all NDI sources on your network automatically detected you can create your NDI Multiview outputs in an insanely short amount of time.

    NDI Multiview Lite supports 6 outputs with a maximum layout of 2x2.

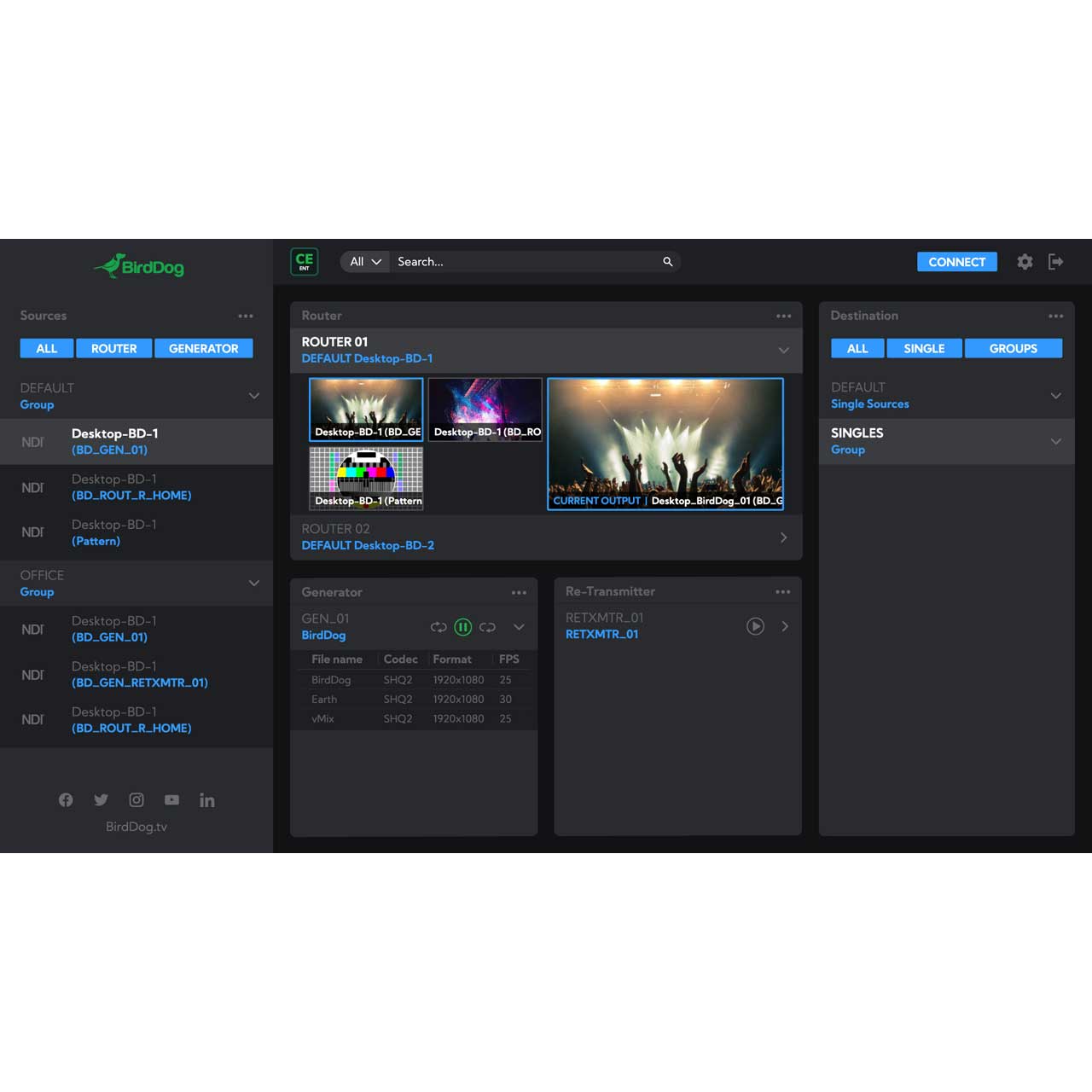

    Central 2.0 Pro License - Enterprise Grade NDI® Routing.
    Central 2.0 ushers in a new era of NDI® routing control. Browser-based with SSO support, smart grouping of NDI® receivers, real-time NDI® routing, media playback engine, and support for thousands of sources, Central 2.0 is your ultimate NDI® management tool.

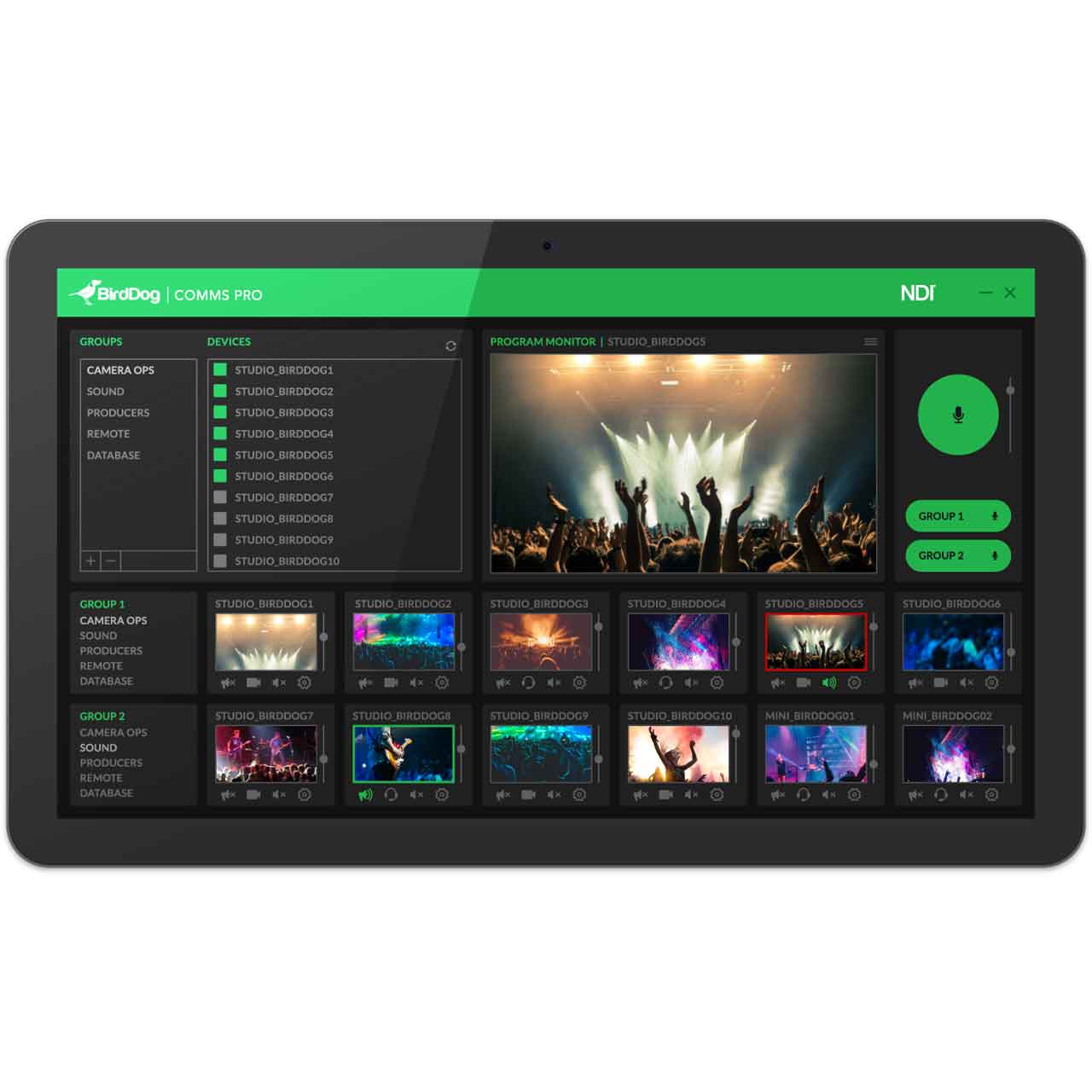

    BirdDog Comms Pro License - World's Best NDI® Audio Intercom System.
    Harnessing the true power of NDI®, BirdDog Comms Pro is the world's first audio intercom system integrating live camera feeds. Be in total control and see every angle of your live production with live video windows from every BirdDog NDI® enabled camera source.

    • Features:

      • Resolution: Up to 1080P60, 1080i59.94
      • NDI® Resolution: Up to 1080P60, 1080P30
      • Zoom: Optical 30X
      • Image stabilizer and true WDR 130dB
      • Video Output: HDMI, 3G-SDI, NDI®, CVBS simultaneously
      • ±350-degree continuous pan, ±120-degree continuous tilt
      • 128 presets, Speed up to 150 degrees/sec
      • Standard mounting and ceiling mounting with E-Flip function
      • Control supports RS-232 control, RS-422/485 control, VISCA-over-IP, NDI® Control, IR Remote Controller

    • Specifications:

      • Camera
      • Image Sensor: 1 / 2.8 inch CMOS 2.13MP
      • Lens: 4.3-129mm
      • Optical Zoom: 30x
      • Digital Zoom: 12x
      • Horizontal Angle of View: 63.7°(W) - 2.3°(T)
      • Aperture: F1.6(W) - F4.7 (T)
      • Min. Illumination: Color: 0.01 lux, 0.1 lux
      • Shutter Speed: 1/1 - 1/10000s
      • Focus: Auto, Push, Manual
      • White Balance: Auto,Indoor,Outdoor,Manual,OPW ,ATW
      • Exposure: Auto,Manual,Shutter/Iris Priority

        Mechanical
      • Pan Movement: Horizontal: ±175 degrees (Zoom Adaptive Speed Range: 0.05°- 100°/S )
      • Tilt Movement: Vertical: +90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05° - 50°/S)
      • Preset Positions: 128 (Speed adjustable: Up to 150°/s)
      • Preset Speed: 0-5 Level adjustable
      • Environmental: Indoor

        Video Interface
      • Video Output: NDI/HDMI/SDI
      • Video Formats
        1080P 60, 59.94, 50, 29.97, 25
        1080i 60, 59.94, 50
        720p 60, 59.94, 50, 29.97, 25
      • Audio I/O
        3.5mm Audio In (Stereo)
        3.5mm Audio Out (Stereo)

        Control Interface
      • IP PTZ Control: NDI Control (auto configuring) VISCA IP
      • Serial PTZ Control: 2x RJ45: RS232/RS422/RS485
      • Serial Control Protocol: VISCA / Pelco D

        Power & Dimensions
      • Operating Temperature: 14°F - 122°F
      • Operating Humidity: =< 80%
      • Power Input: 12vDCm, PoE+ (IEEE 802.3at)
      • Dimensions: 6.2" x 7.0" x 8.66"
      • Weight: 4.4lbs

        Network
      • Video Compression: Full NDI - i-frame high quality low latency NDI for production
      • Network Protocol: NDI - Discovery, configuration and control
      • Web Control interface: Full control via Web/Mobile UI including Scene presets

        Multiview Pro Requirements
      • macOS and Windows
      • Windows version: 10 and above
      • Intel Core i7 series processor and above recommended
      • macOS version: 12 and above
      • M1 and above recommended
      • Graphics Card with OpenGL support
      • Windows: NVIDIA devices can use GPU rendering (Cuda)
      • macOS: Can use GPU rendering (Metal)
      • Note: an active internet connection is required for licence activation/de-activation

        Central 2.0 Requirements
      • 64-bit Microsoft Windows 10 and above
      • Intel Core i5 series processor and above recommended
      • 16GB system memory
      • Gigabit connection or better
      • Graphics Card with OpenGL support.
      • Note: an active internet connection is required for licence activation/de-activation
      • Note: Central 2.0 must be installed on a Windows machine, but can be accessed by any device with a web browser on the same network, inc. Apple devices.

        Comms Pro Requirements
      • BirdDog compatible NDI Encoder/Decoder
      • Windows 10 and above
      • Intel Core i5 series processor and above recommended
      • Touch enabled device recommended

    • Item Includes:

      • 1x BirdDog P200
      • 1x BirdDog Multiview Pro license (PC or Mac)
      • 1x BirdDog Central 2.0 Pro license (PC, access web UI from anything)
      • 1x BirdDog Comms Pro license (PC)
