BirdDog X4E Ultra PTZ Camera Bundle - Three X4E Ultra PTZ Cameras and One KBD Controller - White

BDX4EUCOMBO-W - Overview

AI tracking and auto-framing PTZ Kit!

• Features:

  • 4K Brilliance: X4 Ultra features superior image quality with the latest Sony image sensor. Boasting enhanced low-light performance and High Frame rates up to 4k60p performance.
  • Halo Tally: X4 Ultra sports the most visible and effective Tally system available. Surrounding the lens with a large, daylight-visible border, it keeps your talent looking directly at the camera. On the back you have the unique rubber-insert numbering system for easy camera identification.
  • AI Tracking: X4 Ultra gives you remarkable control of AI tracking and auto-framing - enabling you up to produce your finest work.
  • NDI|HX3: X4 Ultra has the highest possible NDI® HX3 performance, even in 4K60. Superior image quality and low latency are guaranteed.
  • WiFi 6: Releasing you from the confines of a wired network, featuring extreme WiFi technology with an optional base station, X4 Ultra provides hassle-free connectivity for up to 4x cameras anytime, anywhere.
  • Always-On e-ink Label: Featuring a QR code for easy navigation to camera WebUI Controls, all the important information, always displayed... even when the camera is turned off!
  • Dual Network Output: X4 Ultra combines NDI HX and SRT/RTMP/RTSP protocols for seamless, on-premises and remote/CDN connectivity, offering ultimate flexibility in both streaming set-ups and video distribution.
  • Control Support: The X4 Ultra ships with its own IR remote, plus hardware control support for BirdDog PTZ Keyboard, Skaarhoj, and more.


• Specifications:

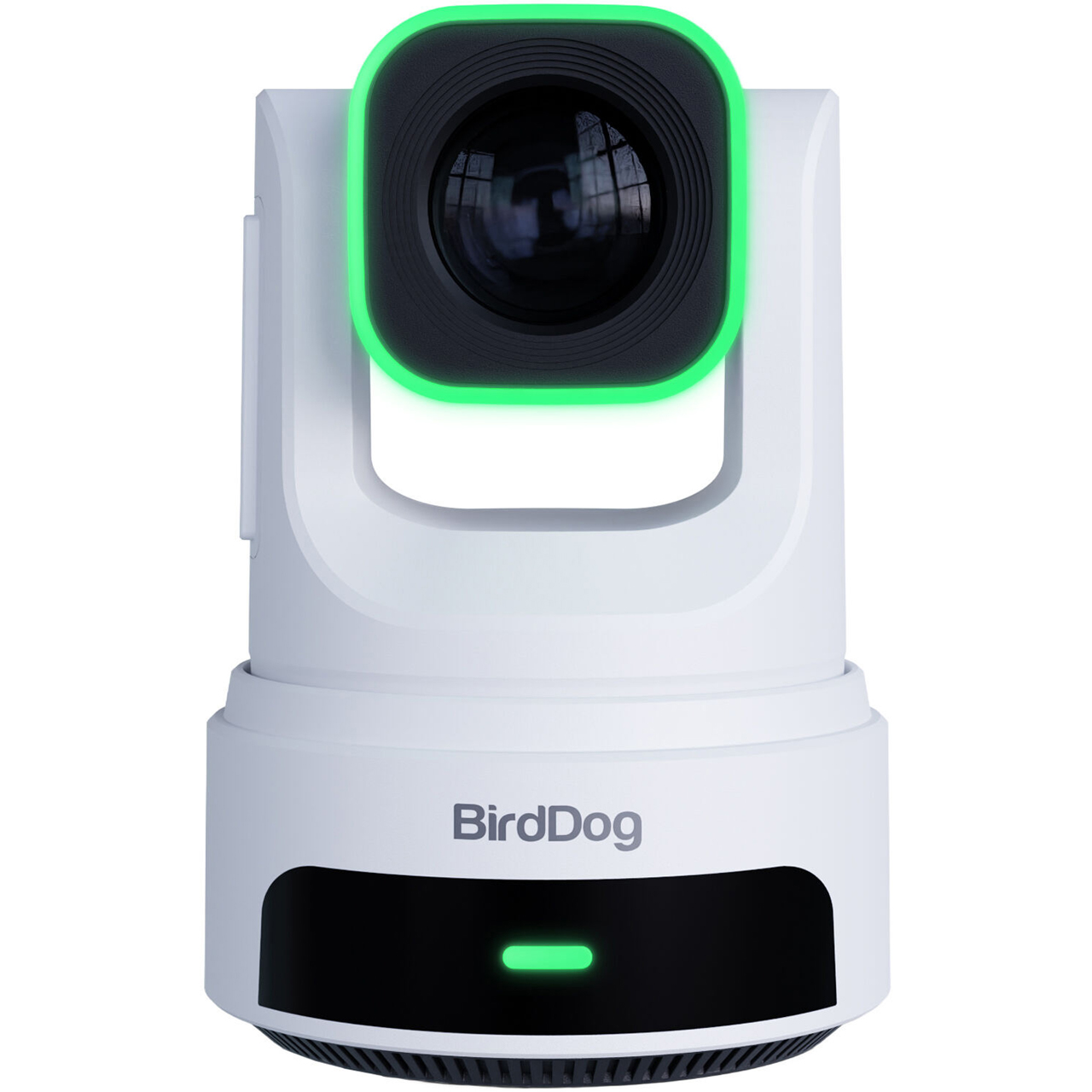

  X4E Ultra
  • Image Sensor: Sony 1/1.8" CMOS - ULTRA HD
  • Lens: f = 6.25 - 125mm
  • Optical Zoom: 20x
  • Video Format:
    - 2160p @ 60/59.94/50/30/29.97/25fps
    - 1080p @ 60/59.94/50/30/29.97/25fps
    - 1080i @ 59.94/50fps
    - 720p @ 60/59.94
  • Horizontal Angle of View: 60° (W) - 3.5° (T)
  • Vertical Angle of View: 35° (W) - 2.0° (T)
  • Aperture: F1.58 (W) - F3.95 (T)
  • Focus: Auto, Manual
  • Exposure: Auto, Shutter Priority, Iris Priority, Manual
  • Shutter Speed: 1/1s - 1/10000s
  • Backlight Compensation: Yes
  • Digital Noise Reduction: 3D Noise Reduction
  • SNR: =45dB
  • Effective Pixels: 8.42 MP
  • AI Tracking: Presenter Tracking, Zone
  • Pan/Tilt Rotation: ±170°, -30° - 90°
  • Pan Control Speed: 1.7° - 80°/sec
  • Tilt Control Speed: 1.7° - 60°/sec
  • Preset Number: 255 Presets
  • Integrated Tally Light: HALO tally and rear number tally system

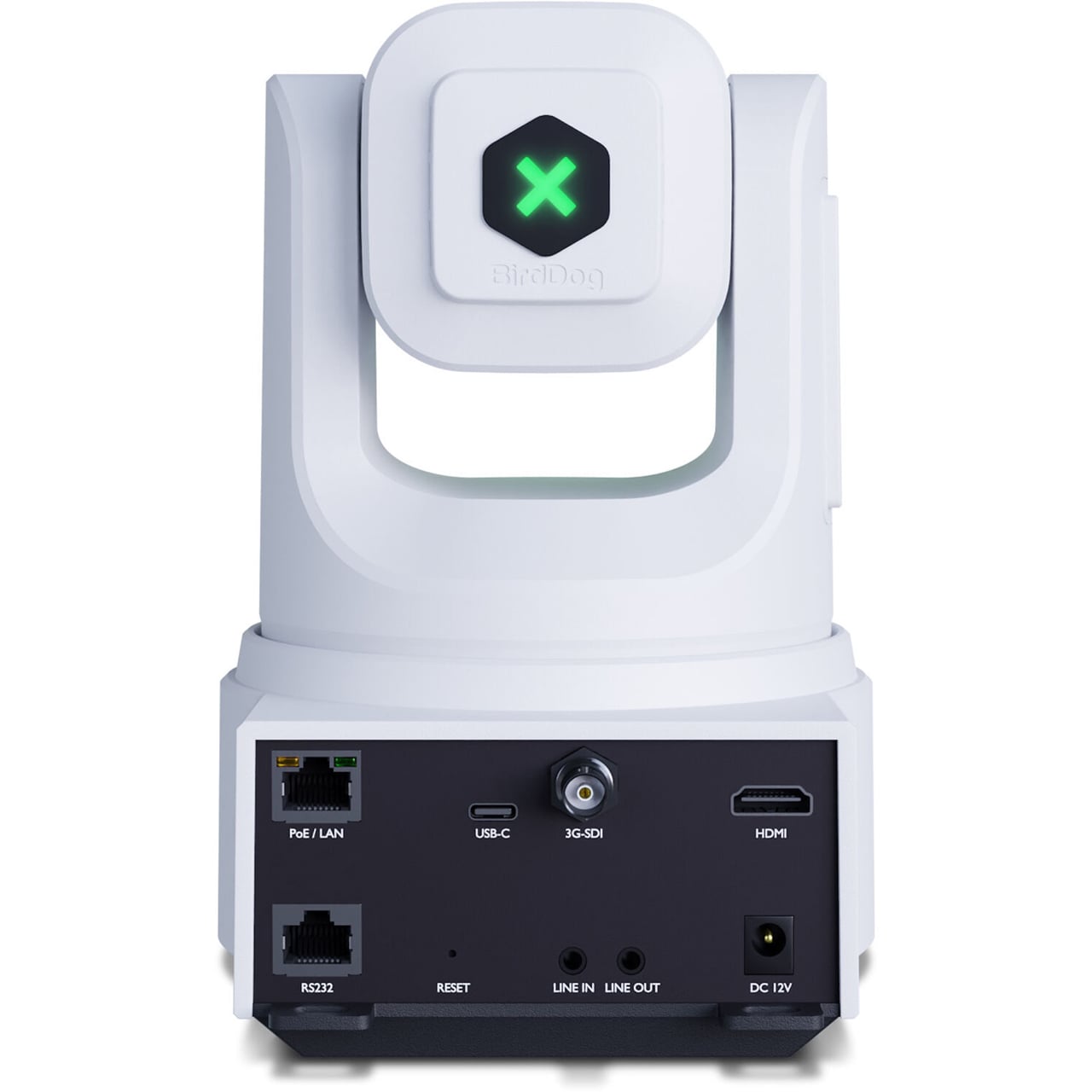

  • Video Output Interfaces: 3G-SDI, HDMI, USB-C UVC, Network
  • Video Compression Formats: H.264, H.265
  • Network Interfaces: 1Gbps adaptive Ethernet port; PoE IEEE 802.3at.
  • Encoder Network Protocols: NDI/HX2, NDI/HX3, RTSP, RTMP, SRT
  • Control Interfaces: 1Gbps Ethernet, USB-C, RS-232
  • Control Protocols:
    - VISCA Baud Rate: 38400/9600/4800/2400,
    - VISCA-IP, NDI, ONVIF
  • Analog Audio: 3.5mm TRS Line input/Mic Input.
  • Input Voltage: DC 12V, POE IEEE 802.3at
  • Input Current: 5.0A (Max)
  • Battery Capacity: N/A
  • Battery operating time (per charge): N/A
  • Working Temperature: 32°F - 104°F (0°C - 40°C)
  • Working Humidity: 20% - 80%
  • Dimension (WxHxD): 5.5" x 7.43" x 8.0" (140.2mm x 188.9mm x 203.2mm)
  • Weight: 4.83lbs (2.19kg)

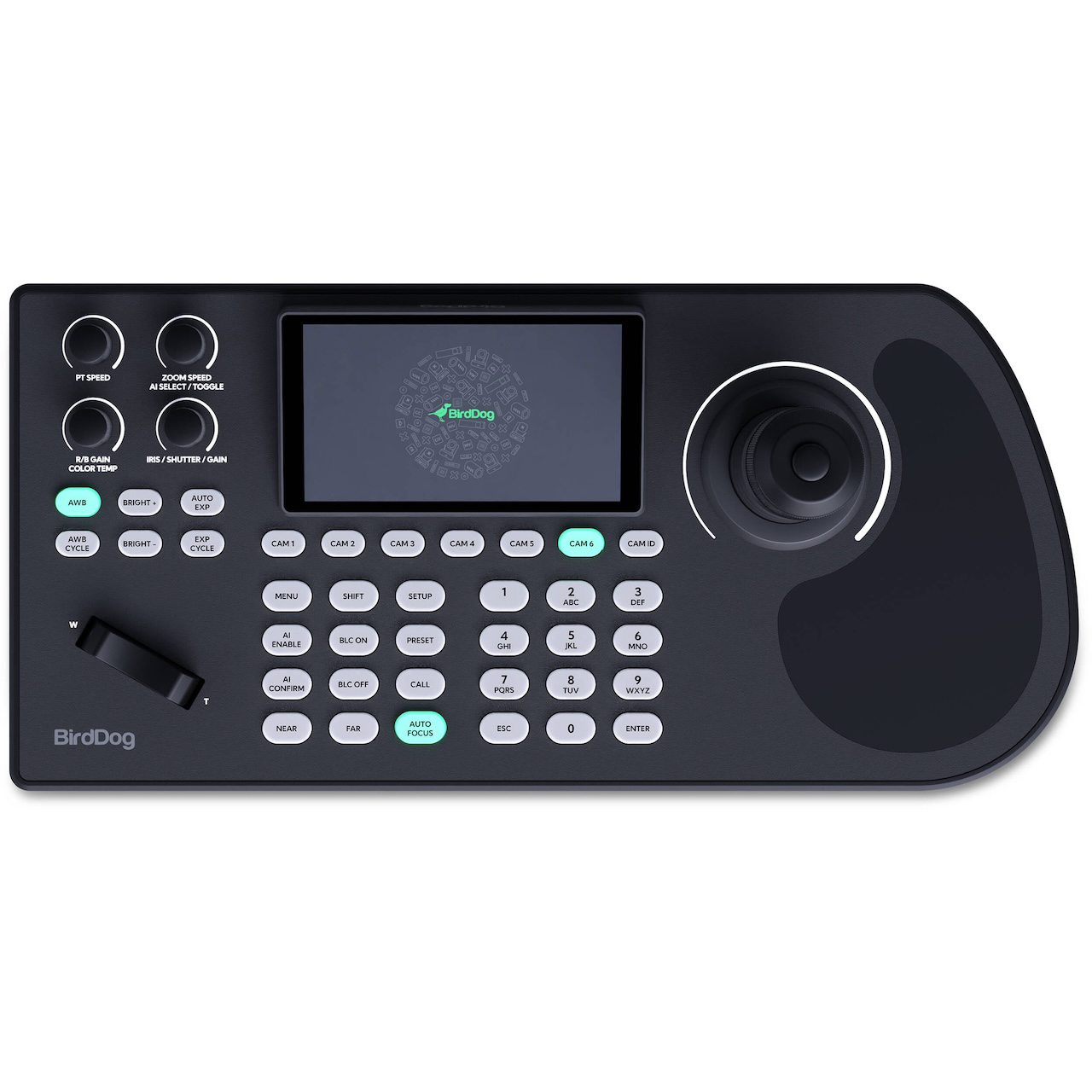

    PTZ Camera Controller
  • Max. Cameras Support: 255
  • Direct Camera Access Keys: 6
  • Direct Preset Access Keys: 10
  • Max Preset Support:255 per camera
  • OSD Camera Menu Menu Button/Interaction with Joystick
  • Display Resolution: 1280x720
  • Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • IP Video CODEC Support: H.264, H.265
  • Tally Borders: Selectable, Multiview and Full Screen mode
  • On Screen Menu: Fully configurable
  • Light/Dark Mode: Yes
  • NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
  • NDI Multiview: NDI HX2, NDI HX3
  • NDI Router: Yes, follows current active camera
  • NDI Discovery: Supported
  • NDI Access Manager: Supported
  • NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)
  • WebUI: BirdUI for setup and firmware updates
  • Light/Dark Mode: YES
  • API-Based Camera Selection: YES

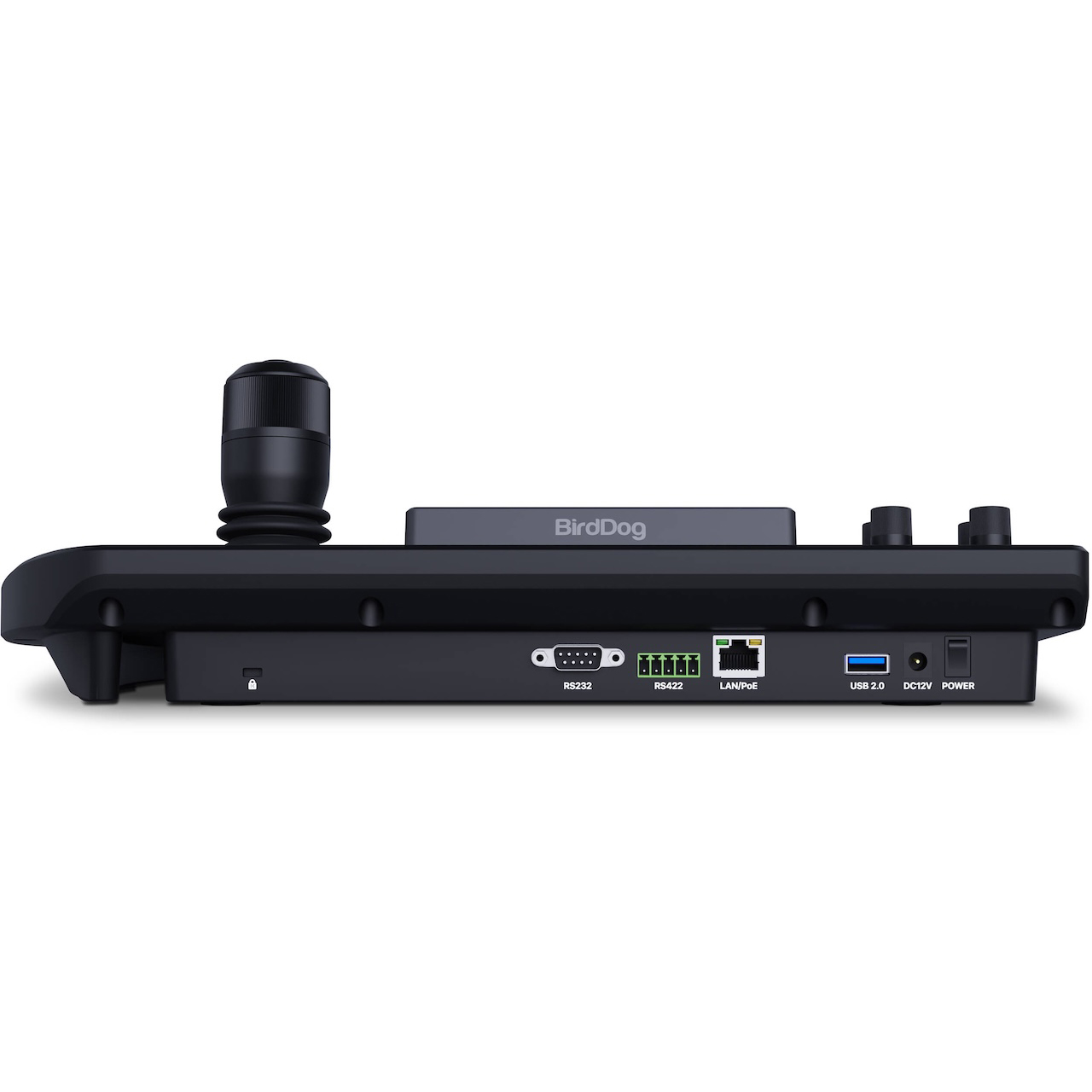

  • RS-232: D-Sub connector (9-pin)
  • RS-422: Phoenix connector
  • Joystick Type: 4D (Integrated Trigger button)
  • Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
  • Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
  • Zoom Rocket: Spring loaded, adjustable
  • Dimensions (LxWxH including Joystick): 14.84" x 6.96" x 4.64" (377mm x 177mmx 118mm)
  • Construction Material: Aluminium; OBP Ocean-Bound Plastic
  • Integrated Carry Handle: Yes
  • Operating Temperature: 14°F - 130°F (-10°C - 55°C)
  • Storage Temperature: 14°F - 130°F (-10°C - 55°C)
  • Operating Humidity: 20% - 80% (Non-condensing)
  • Storage Humidity: 0% - 90% (Non-condensing)
  • Power Supply: PoE (802.3af), DC12V
  • Power Consumption: ≤5W


• Item Includes:

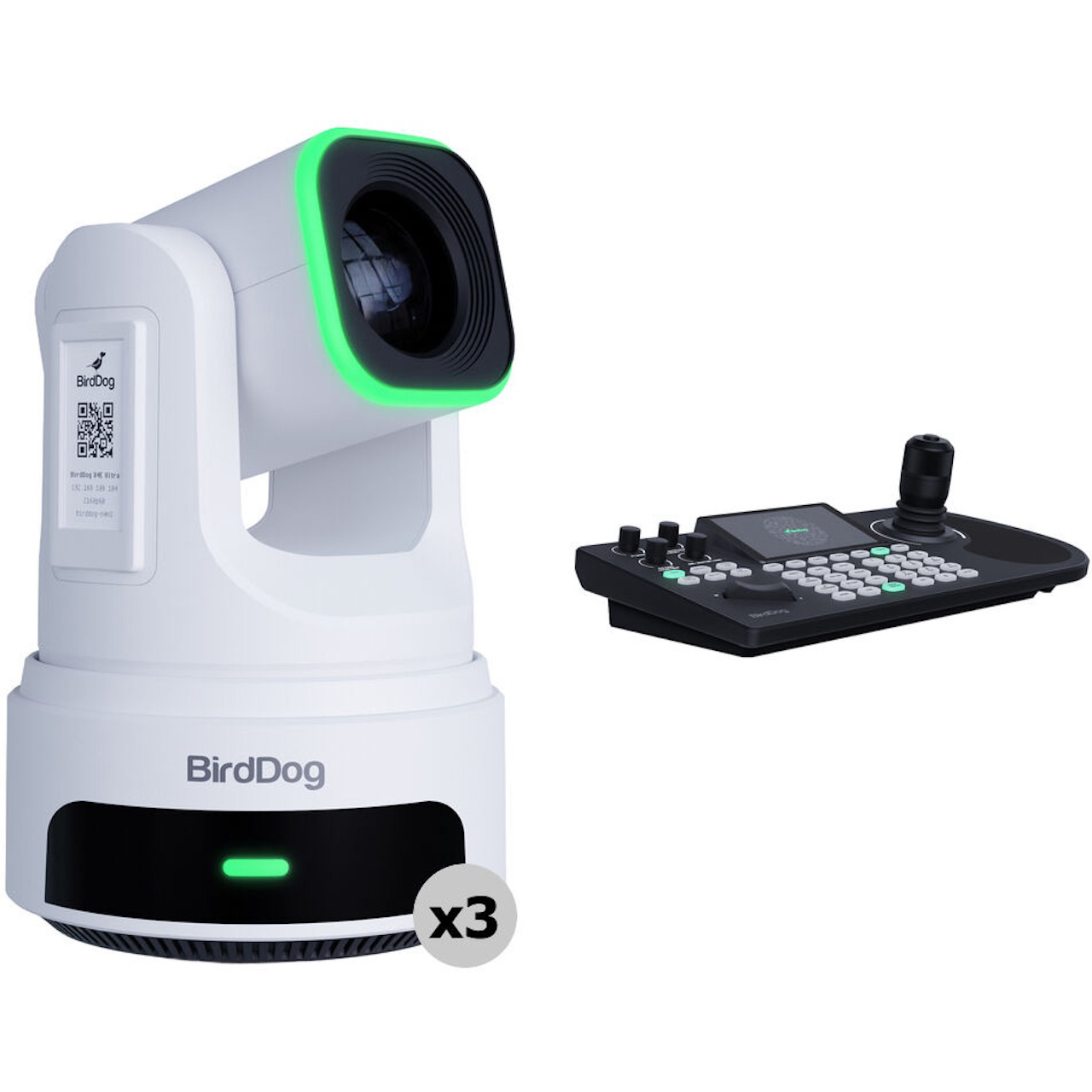

  • 3x BirdDog X4E Ultra PTZ Camera with AI Tracking - White
  • 1x IR Remote
  • 1x KBD Controller


• Warranty:

  • 5-Year Limited Warranty
