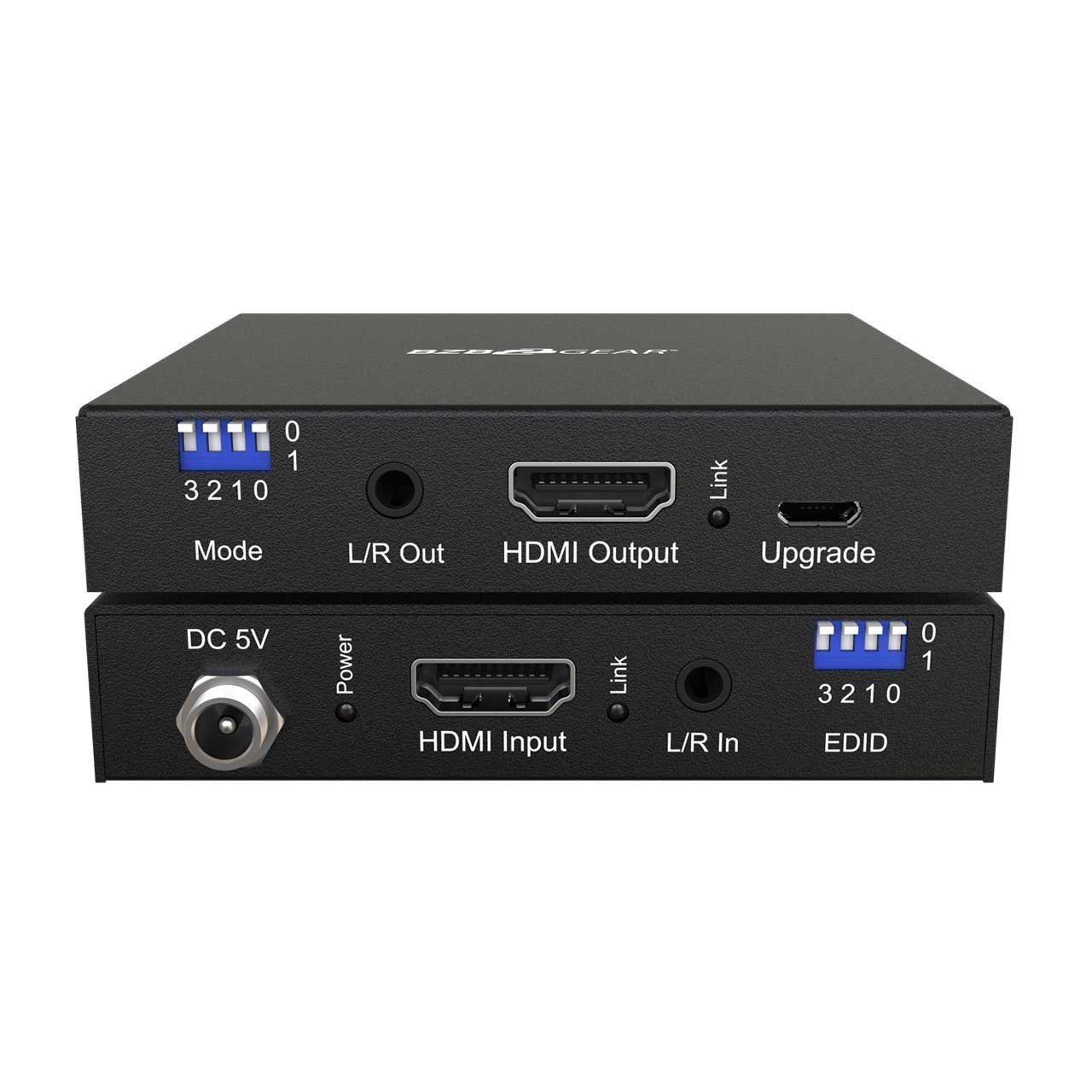

BZBGEAR BG-AEE 4K UHD 18Gbps HDMI Signal Fixer and Audio Embedder & De-Embedder

ITEM #: BG-AEE MFG #: BG-AEE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
BZBGEAR
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    BG-AEE - Overview

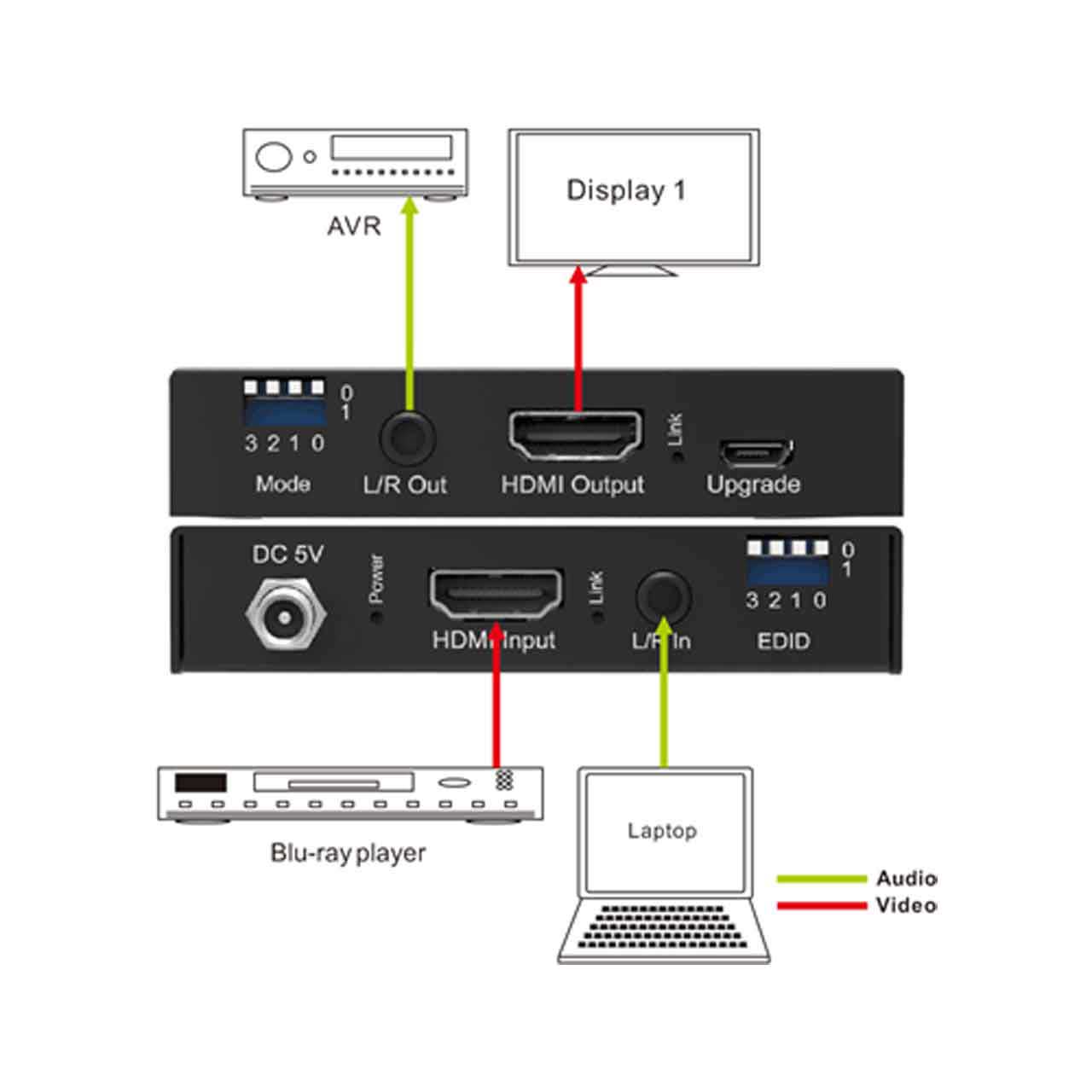

    The BZBGEAR BG-AEE is a HDMI 2.0 Audio Extractor and Embedder. It has two modes: audio extraction via L/R output from HDMI input source, and the other mode is for removing the original audio of HDMI source and embedding auxiliary audio via L/R input to the HDMI output. It also features EDID dip switches with the ability to lock the video signal to various formats to ensure signal quality.

    • Features:

      • Supports full 3D format
      • Audio embed to HDMI output
      • Audio de-embedded from HDMI input
      • CEC and ARC pass through
      • Relock and enhance output signal quality
      • ESD protection


    • Specifications:

      • Bandwidth: 18Gbps

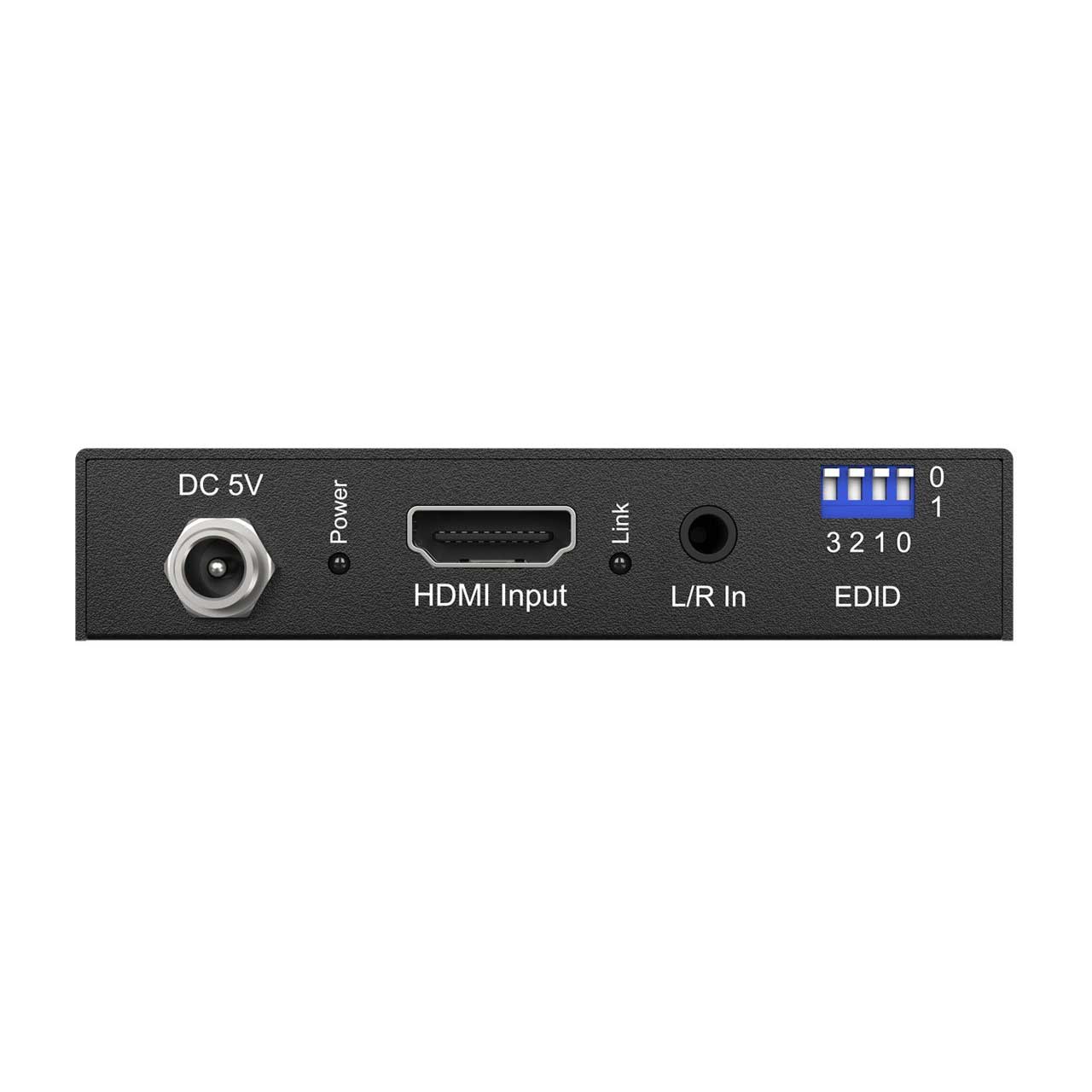

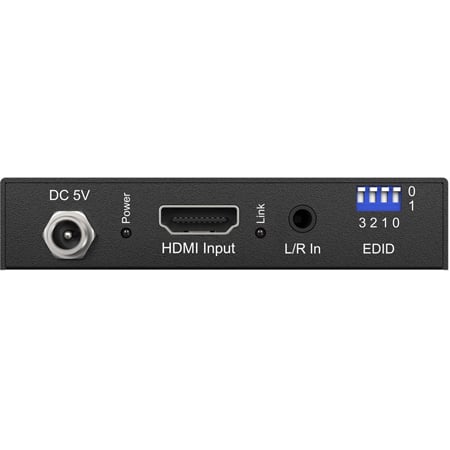

      • Video Input Connectors: 1x HDMI Type A, 19-pin, female
      • Audio Input Connectors: 1x 3.5mm stereo earphone jack (L/R)

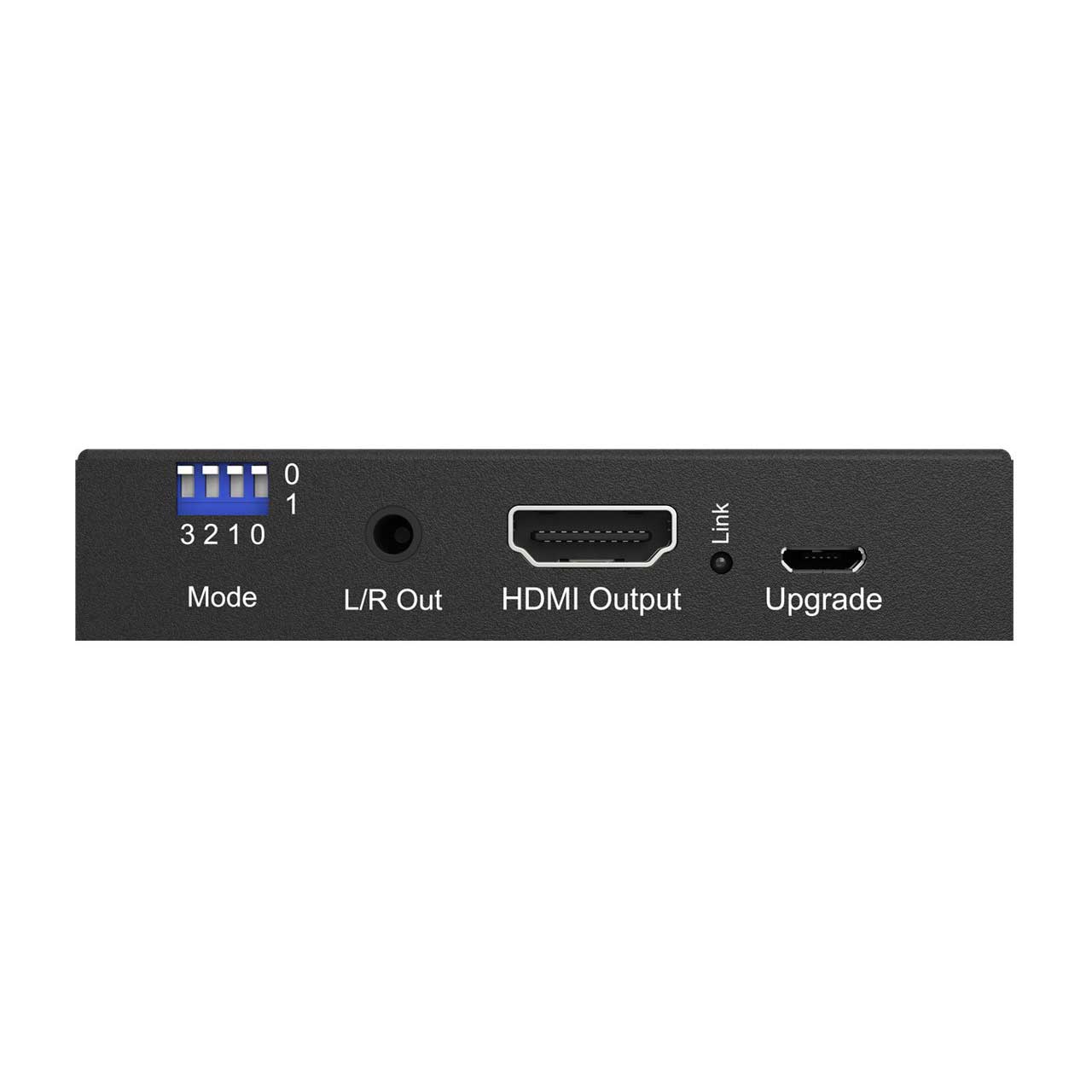

      • Video Output Connectors: 1x HDMI Type A, 19-pin, female
      • Audio Output Connectors: 1x 3.5mm stereo earphone jack (L/R)
      • EDID: 4-pin DIP Switcher
      • Mode: 4-pin DIP Switcher
      • Dimensions (WxDxH): 83mm x 83mm x 17mm, without feet
      • Shipping Weight: 0.67lbs (300g)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: - 4° to 140°F (-20° to 60°C)
      • Power Supply: 5V/1A DC


    • GTIN:

      0850033687590
