Bittree 968522A 2X48 2RU TT Patchbay Internally Selectable TRS Audio Punchdown Full Normal Looped 12 Inch Deep
  • Bittree 968522A 2X48 2RU TT Patchbay Internally Selectable TRS Audio Punchdown Full Normal Looped 12 Inch Deep
  • Bittree 968522A 2X48 2RU TT Patchbay Internally Selectable TRS Audio Punchdown Full Normal Looped 12 Inch Deep
  • Bittree 968522A 2X48 2RU TT Patchbay Internally Selectable TRS Audio Punchdown Full Normal Looped 12 Inch Deep

Questions? Ask a Markertek Expert:
800-522-2025 Email

Bittree 968522A 2X48 2RU TT Patchbay Internally Selectable TRS Audio Punchdown Full Normal Looped 12 Inch Deep

Manufacturer: Bittree

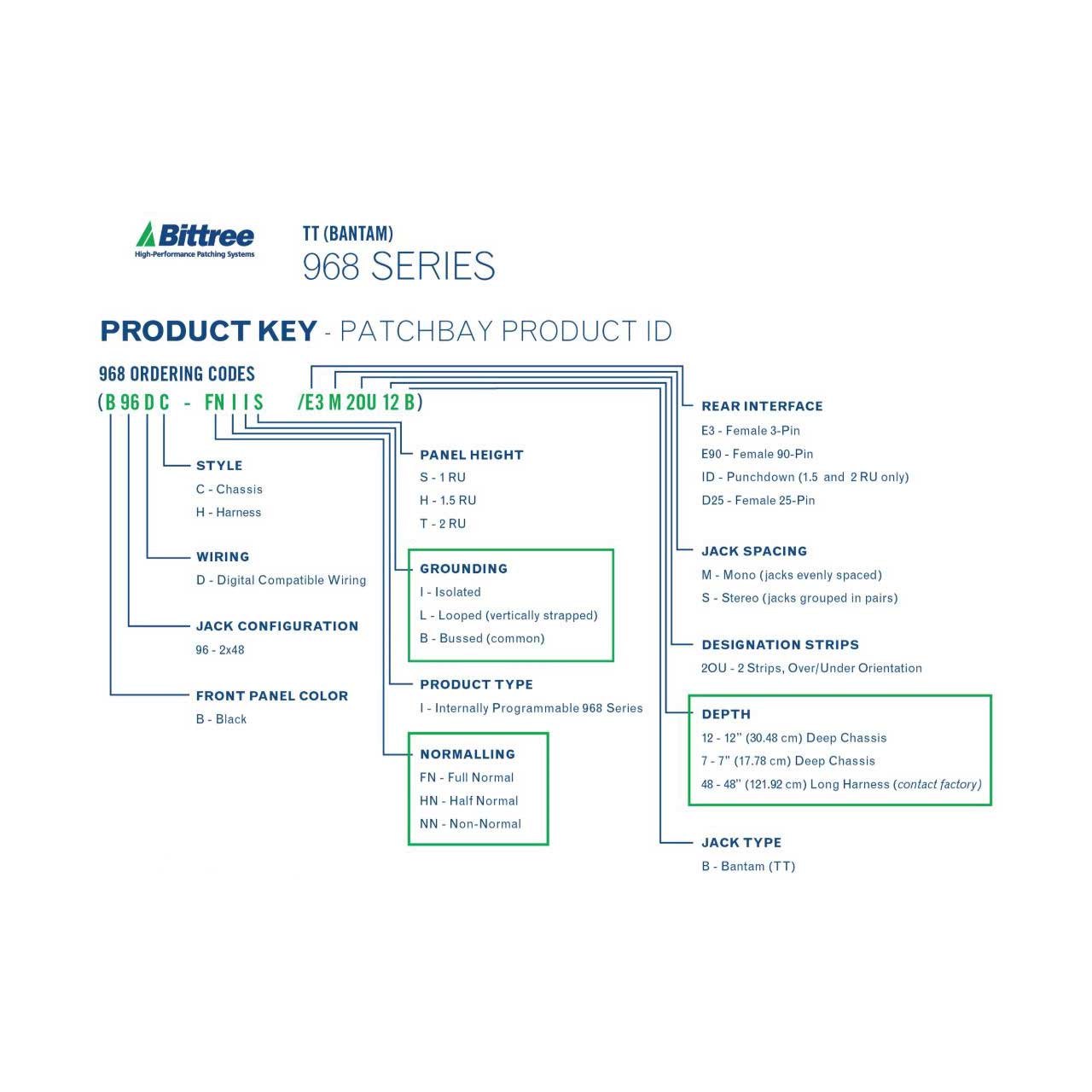

Item #: BIT-968522A   •   MFG #: B96DC-FNILT/ID M2OU12B




Our Price:$1,499.30

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

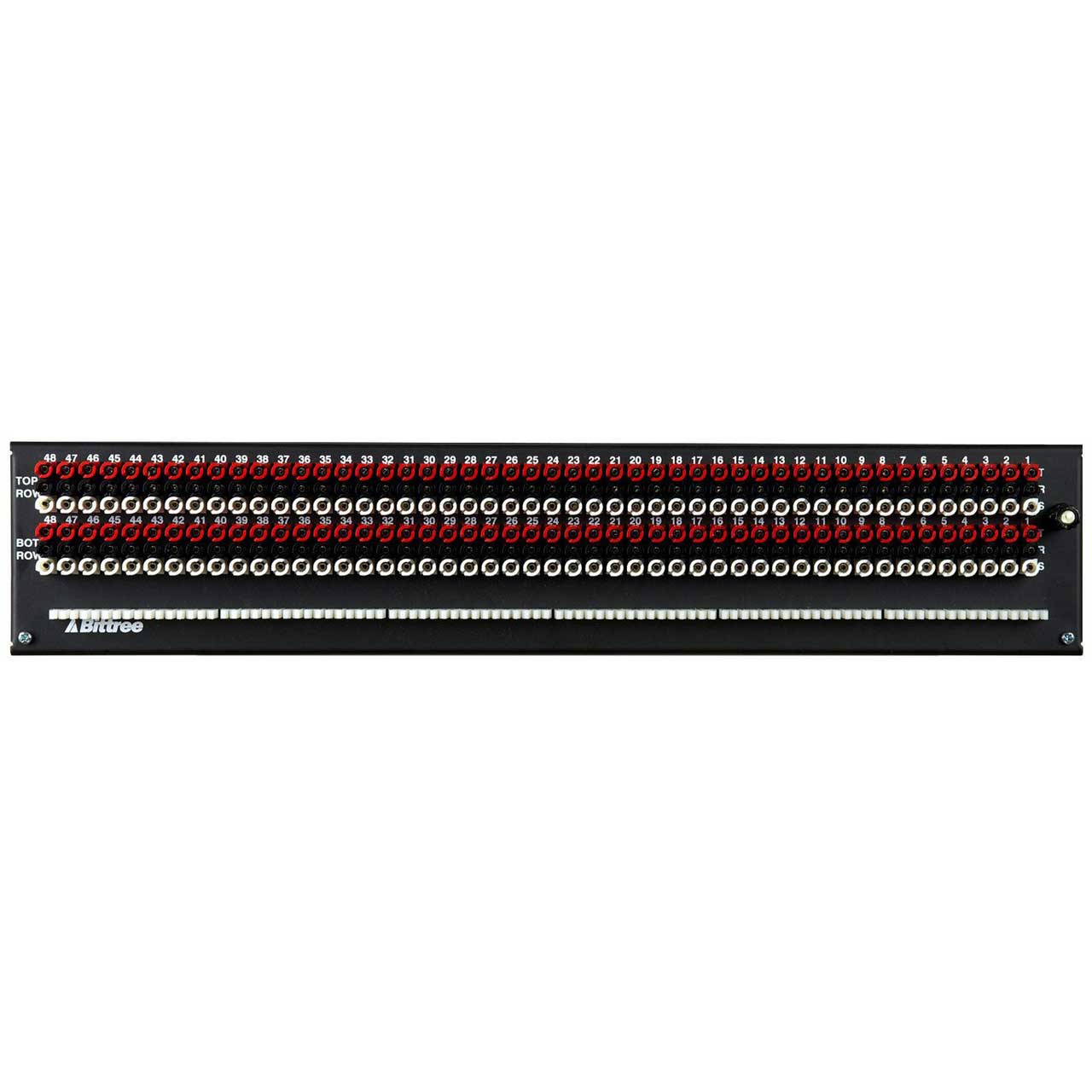

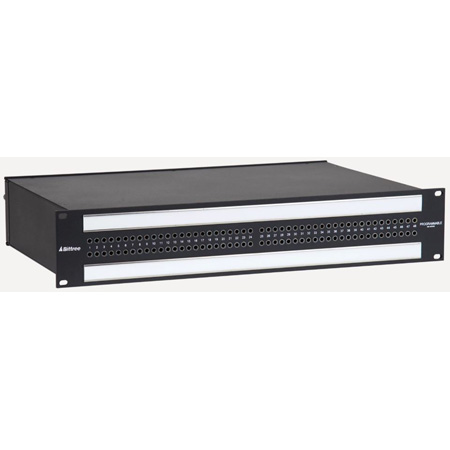

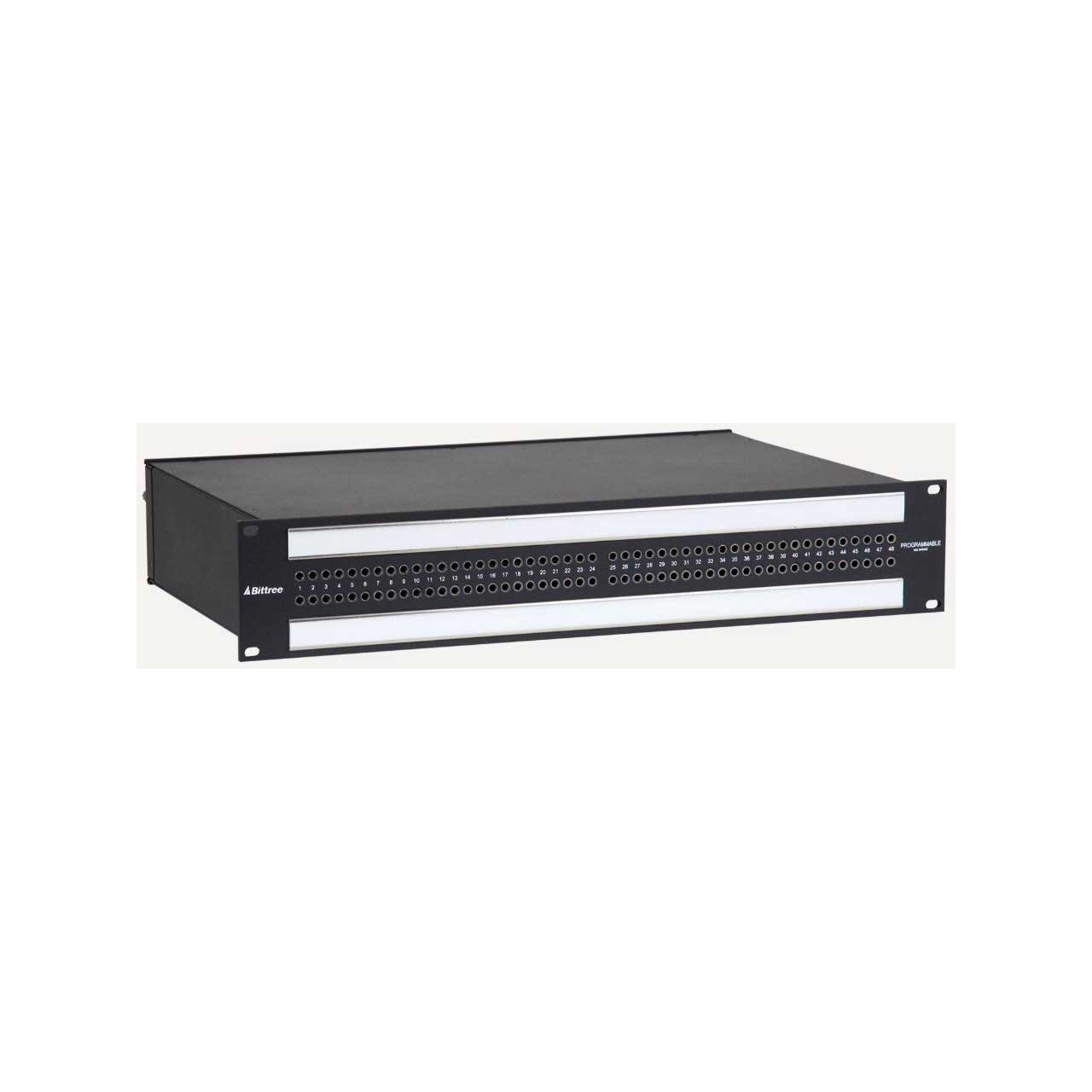

    The Bittree B96DC-FNILT/ID M2OU12B is a 2x48 2RU TT Bantam Patchbay with internally selectable TRS Audio. Rear interface features ID (punchdown) connectors and is fully normalled with looped grounds. Chassis depth is 12 inches. A 6" (15.24 cm) deep rear lacing bar included with the ID (Punchdown) rear interfaces. This versatile patchbay also features Digital AES wire used for internal wiring and selectable normalling and grounding, the circuits can be easily changed via shunts under both top and bottom dust covers. 1-48 left-to-right numbering on front panel for easy circuit identification


    • Features

      • High-density 2x48 jack configuration with mono (even) jack spacing
      • Selectable normalling and grounding: Circuits can be easily changed via shunts under both top and bottom dust covers
      • Digital AES wire used for internal wiring
      • 1-48 left-to-right numbering on front panel for easy circuit identification
      • 2 x DS870-10-ASSY designation strip assemblies, "Over/Under" orientation
      • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
      • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces: Alternative 3" (7.62 cm) deep lacing bar available

        Options
      • Rear Interface: choose from four standard rear interfaces: E3 (3 pin ELCO connectors); DB25; ID (Punchdown); E90 (90 pin ELCO connectors)
      • Normalling & Grounding: choose from eight standard configurations or specify your own; Normalling: circuits can be programmed to full normal, half normal or nonnormal; Grounding can be programmed to bussed, isolated, or looped
      • Chassis Depth: 12" (30.48 cm) deep, fully enclosed; 7" (17.78 cm) deep, fully enclosed
