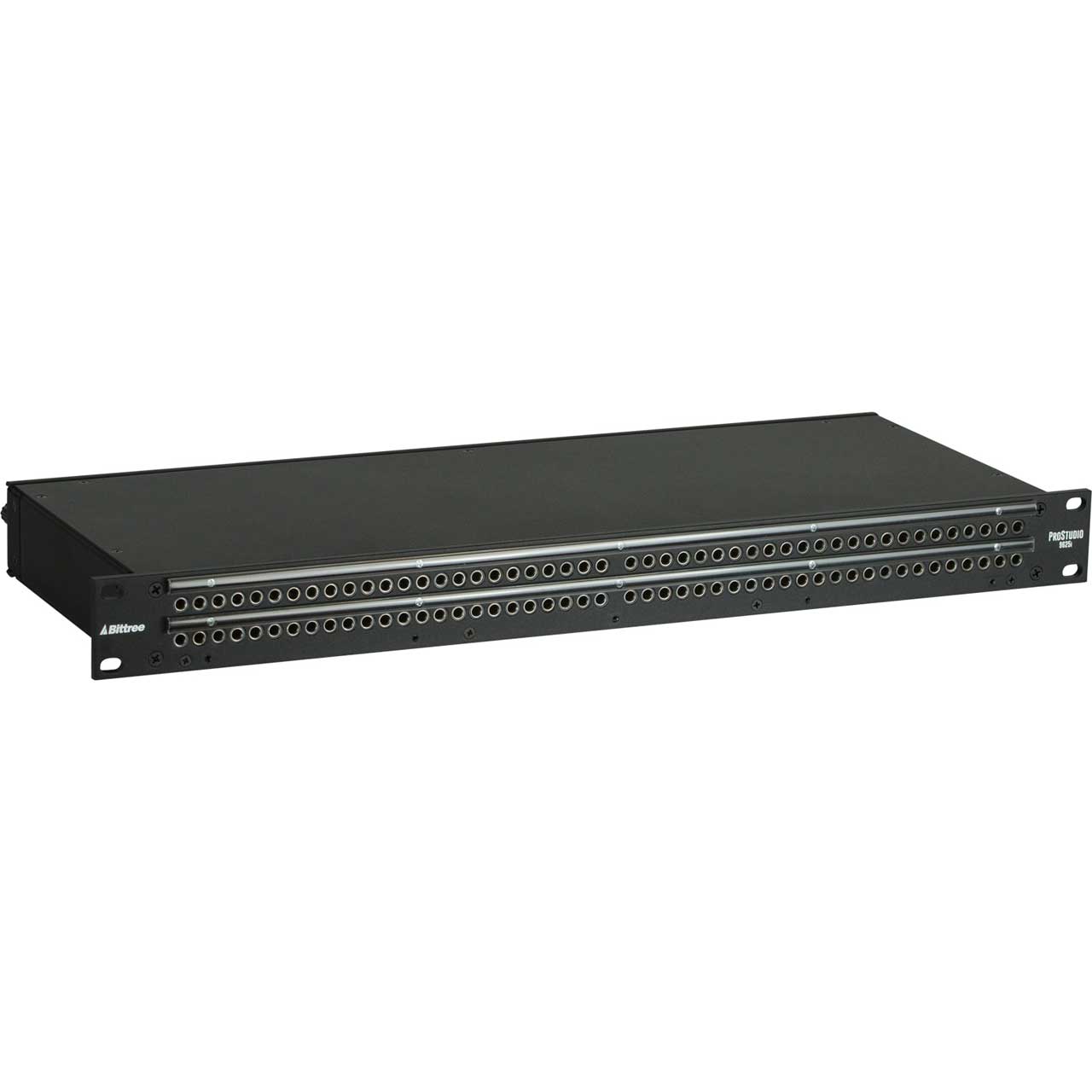

Bittree PS96DB25I ProStudio 2x48 TT Audio Patchbay - 1RU

ITEM #: BIT-PS96DB25I MFG #: PS96DB25I

Primary Image
Bittree
Free Shipping with $49 Minimum Order

Our Price:

$1,600.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PS96DB25I - Overview

The PS96DB25I is a high-density 2x48 jack configuration with mono (even) jack spacing. This unit features a DB25 rear interface with 12 x 25-pin female DB25 connectors. It features selectable normalling and grounding and ships full normal with bussed grounds. Circuits can be easily changed via shunts under both dust covers and can be set to full normal, half normal or non-normal and can be set to bussed, isolated, or looped.

  • Features:

    • High-density 2x48 jack configuration with mono (even) jack spacing
    • DB25 rear interface (12 x 25-pin female DB25 connectors) - Protools®, Tascam® DB25 Pinout
    • Selectable normalling and grounding - Ships full normal with bussed grounds
    • Circuits can be easily changed via shunts under both dust covers - Normalling - circuits can be set to full normal, half normal or non-normal; - Grounding - can be set to bussed, isolated, or looped
    • Analog and Digital 110 ohm compatible
    • 2 x DS250-10 designation strips, "Over/Over" orientation - Front panel will accommodate an optional third designation strip
    • 7" (17.78 cm) deep fully enclosed chassis
