Belden 10GX52F CMR/Riser CAT6A (625MHz) F/UTP Enhanced Premise Horizontal Cable 4-Pr BC 23AWG - Black - 1000 Ft

ITEM #: BL-10GX52F1000BK MFG #: 10GX52F 0101000

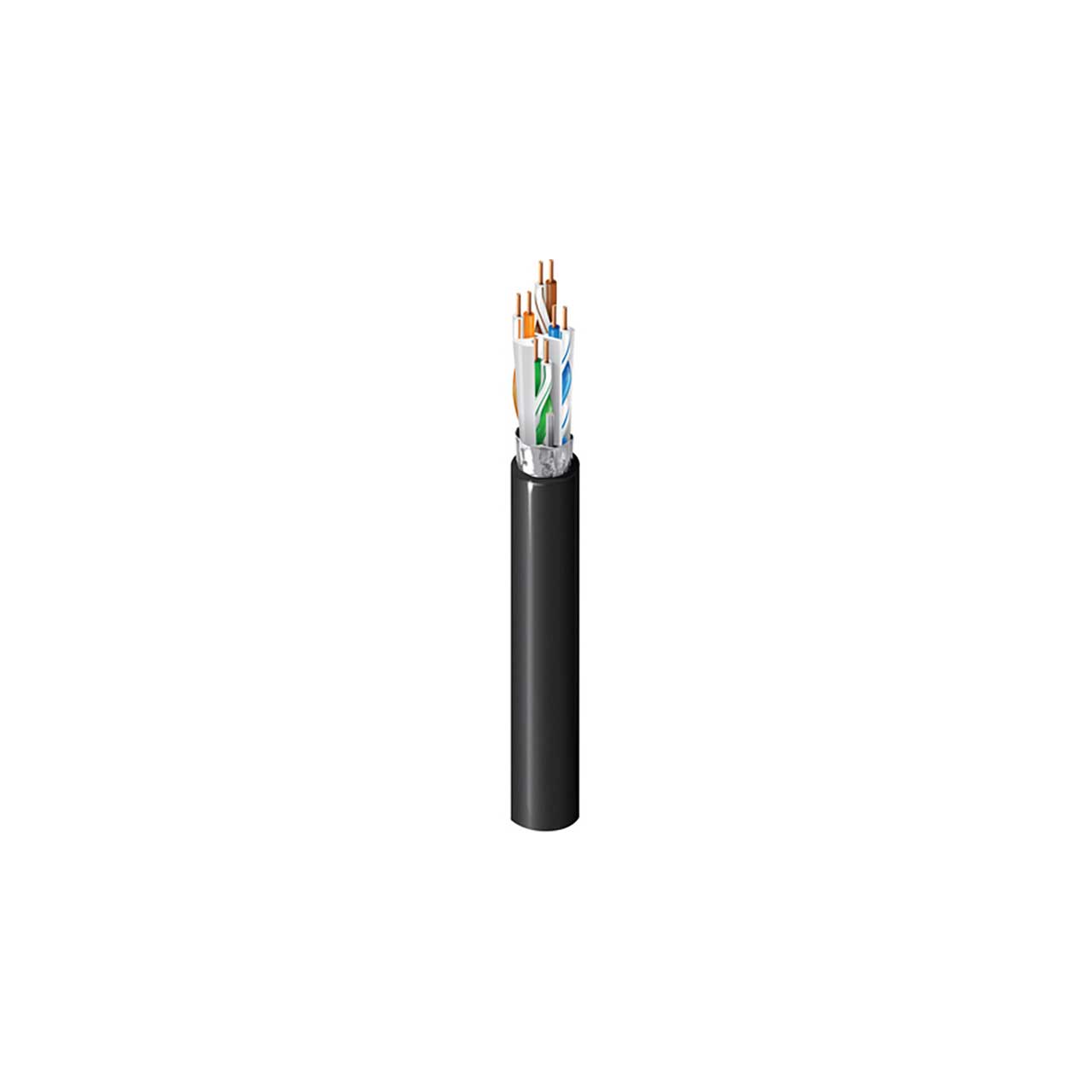

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$917.70

Our Price:

$659.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    10GX52F 0101000 - Overview

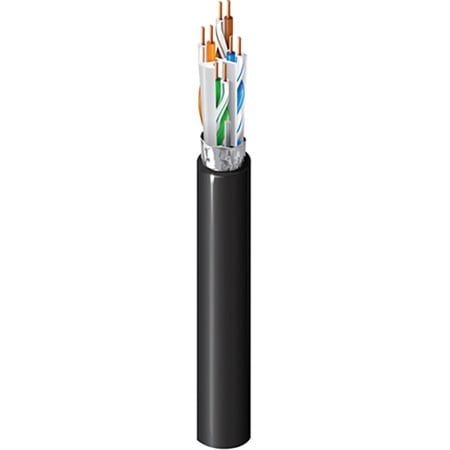

    Belden 10GX52F is a 10GX Category 6A Enhanced Premise Horizontal F/UTP Cable (625MHz). It features 4 Pair, 23 AWG Solid Bare Copper Conductors in a Foil Shielded, Riser-CMR rated PVC Jacket.

    Belden Category 6A Copper Cable offer a wide range of options for your CAT 6A network. Options available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry's gold standard for performance, while, Belden's 10GXW is the industry's smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.

    Applications
    Premise Horizontal Cable
    Ethernet up to 10GBASE-T
    Wi-Fi 6, Wi-Fi 5
    Surveillance
    HDBaseT
    PoE++, PoE+, PoE
    Noisy Environments

    • Features:

      • Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
      • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
      • Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
      • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
      • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

    • Specifications:

      • Conductor AWG: 23
      • Conductor Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Conductor Count: 8
      • Conductor Total Number of Pairs: 4
      • Insulation Material: PO - Polyolefin
      • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
      • Outer Shield Type: Tape
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Coverage: 100%
      • Outer Shield Drainwire Type: 26 AWG (7x34) TC
      • Outer Jacket Separator: Center Member (Patented EquiSpline®)
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. and Overall Cable Diameter: 0.275 in (6.99 mm)
      • Outer Jacket Ripcord: Yes
      • Installation Temp Range: +5°C To +50°C
      • UL Temp Rating: 90°C
      • Storage Temp Range: -20°C To +75°C
      • Operating Temp Range: -20°C To +75°C
      • Bulk Cable Weight: 41 lbs/1000ft
      • Max Recommended Pulling Tension: 25 lbs
      • Min Bend Radius During Installation: 2.75 in
      • Min Bend Radius/Minor Axis: 2.25 in
      • NEC/(UL) Specification: CMR
      • CEC/C(UL) Specification: CMR
      • ISO/IEC Compliance: 11801 ed 2.2 (2011) Class EA
      • CPR Euroclass: Eca
      • Data Category: Category 6A
      • ANSI Compliance: S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A
      • Telecommunications Standards: ANSI/TIA-568-C.2 Category 6A
      • IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
      • Other Specification: Verified Channel/Category 6A
      • Other Standards: C(UL)US CMR 90C OR (UL) CMR-LP (0.6A) OR CL3R-LP (0.6A)
      • UL Flammability: UL 1666 Riser
      • ISO/IEC Flammability: IEC 60332-1-2
      • UL voltage rating: 300 V RMS

    • Item Includes:

      • 10GX52F CMR/Riser CAT6A (625MHz) Cable - Black - 1000 Ft

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825003939
