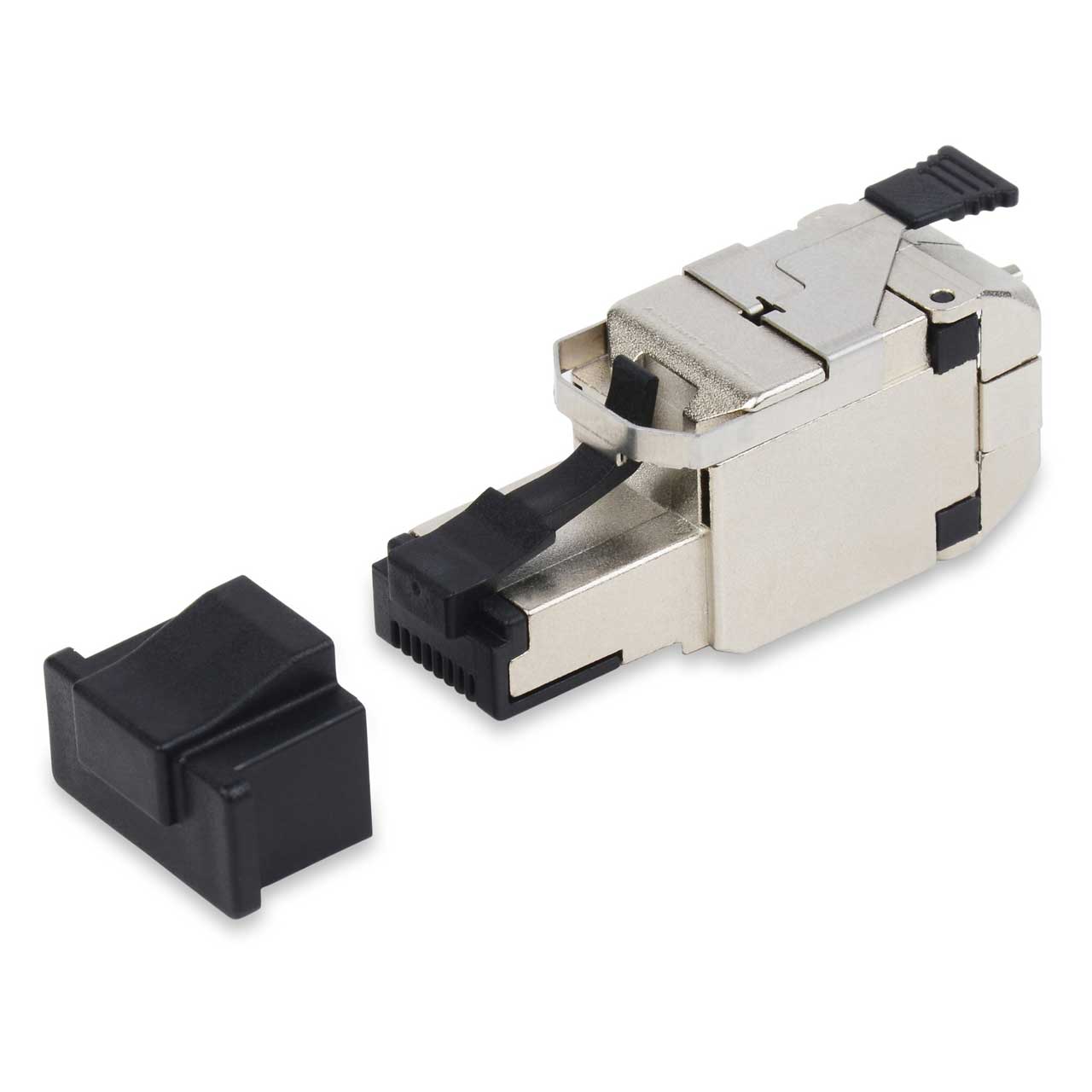

Belden RVAFPSME-B24 REVConnect Plug 10GX T568 A/B UTP Cable RJ45 Connector Plug Shielded - 24-Pack


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    RVAFPSME-B24 - Overview

    The Belden 10GX REVConnect system is a future ready RJ45 connector system designed to meet the ongoing growth of IP Convergence and the increasing demand of power over Ethernet (POE) standards. REVConnect makes deployment easier and will put hours back in your day. Increasing the speed of your installation will allow you to complete more jobs, build your IT infrastructure quicker and increase your overall revenue. REVConnect limits the amount of rework and retesting required to achieve needed performance. Its simplified termination process and tools adapt to today's needs for high performance and emerging applications.

    Single Core for 8 Connector Types
    The single core termination is all an installer needs to know. The same terminated core can accept up to eight different modules including UTP jacks (Category 5e through 10GX), Shielded jacks (Category 5e through 10GX), and 10GX Shielded and Unshielded Field Mountable Plugs.

    Simplified Tooling & Termination
    This series of Belden connectors will reduce the size of your tool bag needs with its simplified bonded pair separation and termination system. A universal tool features a jacket stripper and cross web cutter. All of the barriers to terminating bonded pair cable are eliminated by this fool-proof system. Gone are the punch down tools contractors, installers, system integrators and IT professionals have come to loath. Wire maps for 568A and 568B can be ahcieved using the same connector core.

    100 Watt POE Support
    The 10GX series is next generation device ready by supporting up to 100 Watts of power to further simplify installs by reducing cable runs.

    10GX Shielded System
    TIA Screened Category 6A
    ISO Class EA

    • Features:

      • Single REVConnect Core can be Terminated with CAT5e, CAT6 or CAT6A Connectors
      • Versatile - Switch from a Jack to a Plug with No Retermination
      • Installs Faster to Complete Projects Quicker
      • Gas-tight Connections
      • Easy - Terminate All 8 Conductors at Once
    • Specifications:

      • Front Connection: RJ45 Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel
      • Rear Connection: REVConnect Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel
      • Connector Body: Nickel plated zinc alloy diecast
      • Footprint/Type: KeyConnect
      • Plug / Jack Compatibility: RJ45
      • Cable/Connector Retention: 66.723 N
      • Connector/Hardware Retention: 88.964 N
      • Plug/Connector Retention: 50.042 N
      • Storage Temperature Range: -40°C To +70°C
      • Installation Temperature Range: -10°C To +60°C
      • Operating Temperature Range: -10°C To +60°C
      • Tool Compatibility: RVUTT01 Termination Tool
      • UL Rating: UL94V-0
      • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
      • EU Directive 2002/95/EC (RoHS): Yes
      • EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006
      • MII Order #39 (China RoHS): EUP 50
      • Telecommunications Standards: Category 6A - ISO/IEC 11801:2002 Ed.2, TIA 568.2-D
      • Safety Listing: c(UL)us Listed
      • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
      • UL Flame Test: UL2043 Air Handling Spaces
      • Suitability - Indoor: Yes - Indoor
    • Item Includes:

      • RVAFPSME-B24 RJ45 Connector Plug Shielded - 24-Pack
