Belden 10GX63F CMP/Plenum 10GX CAT6a Enhanced Premise Horizontal F/UTP 4-Pr Shielded Cable 23AWG - Blue - 1000 Ft

ITEM #: BL-10GX63F1000BE MFG #: 10GX63F D151000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,632.10

Our Price:

$1,295.00

Availability: In Stock
iAvailability Description Popup

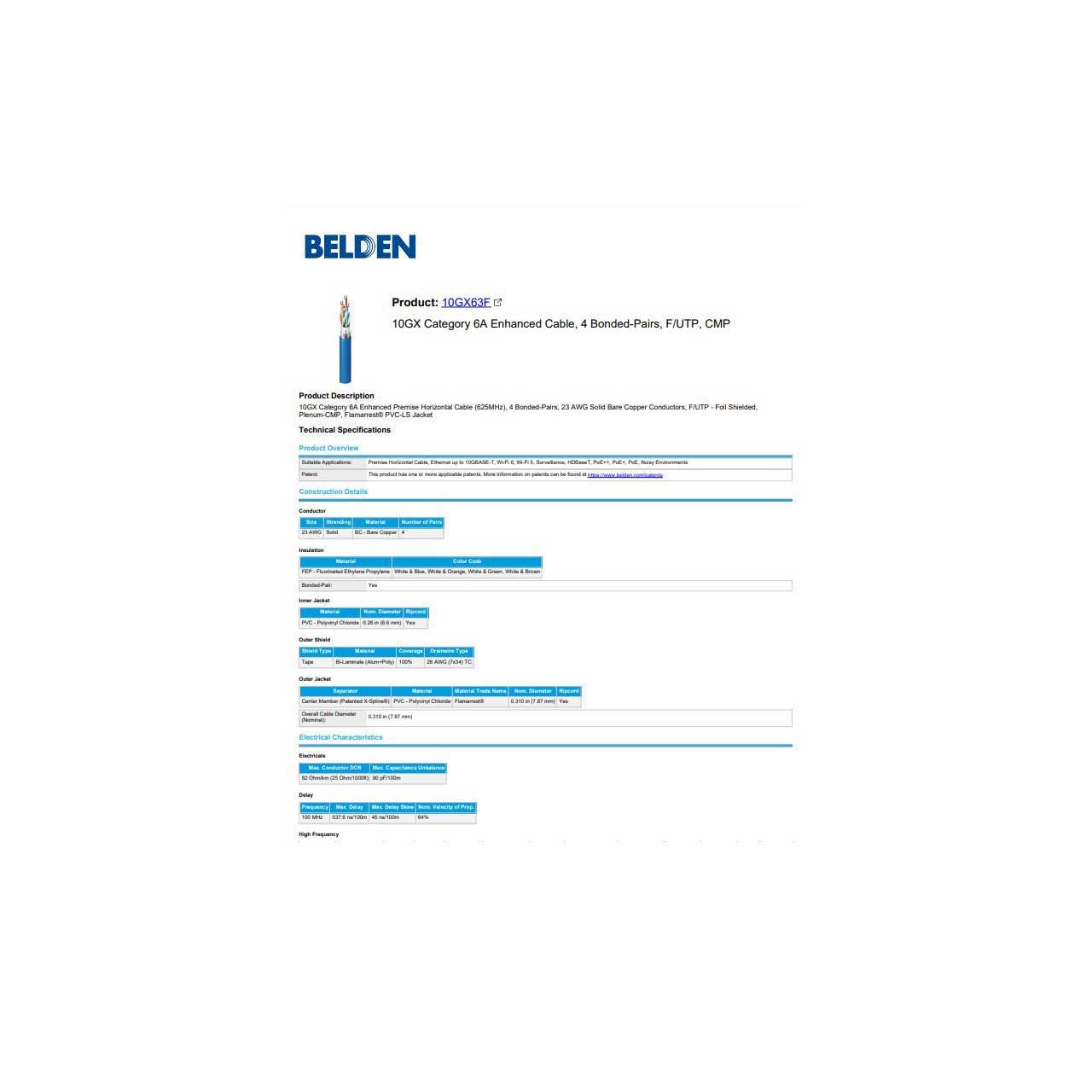

    10GX63F D151000 - Overview

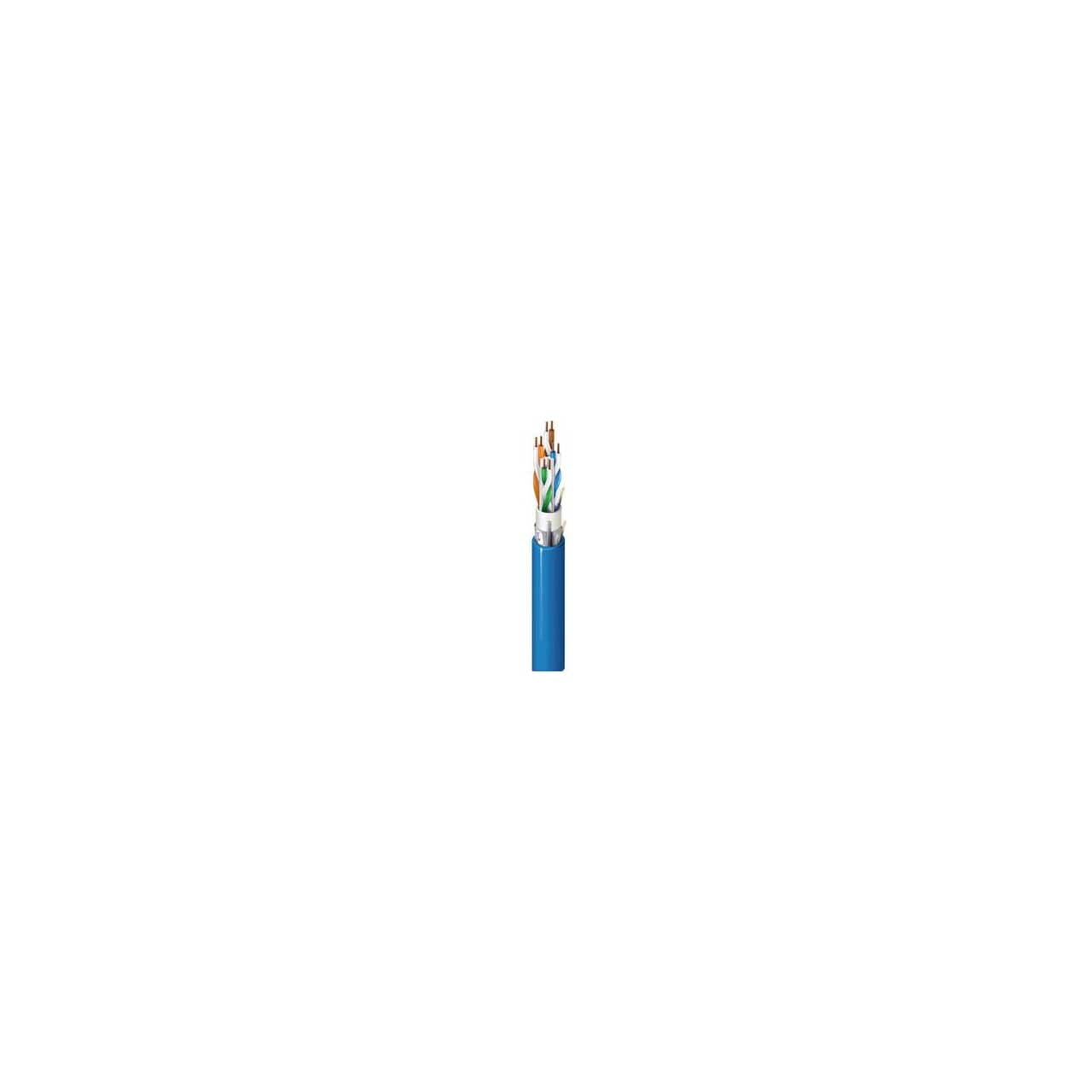

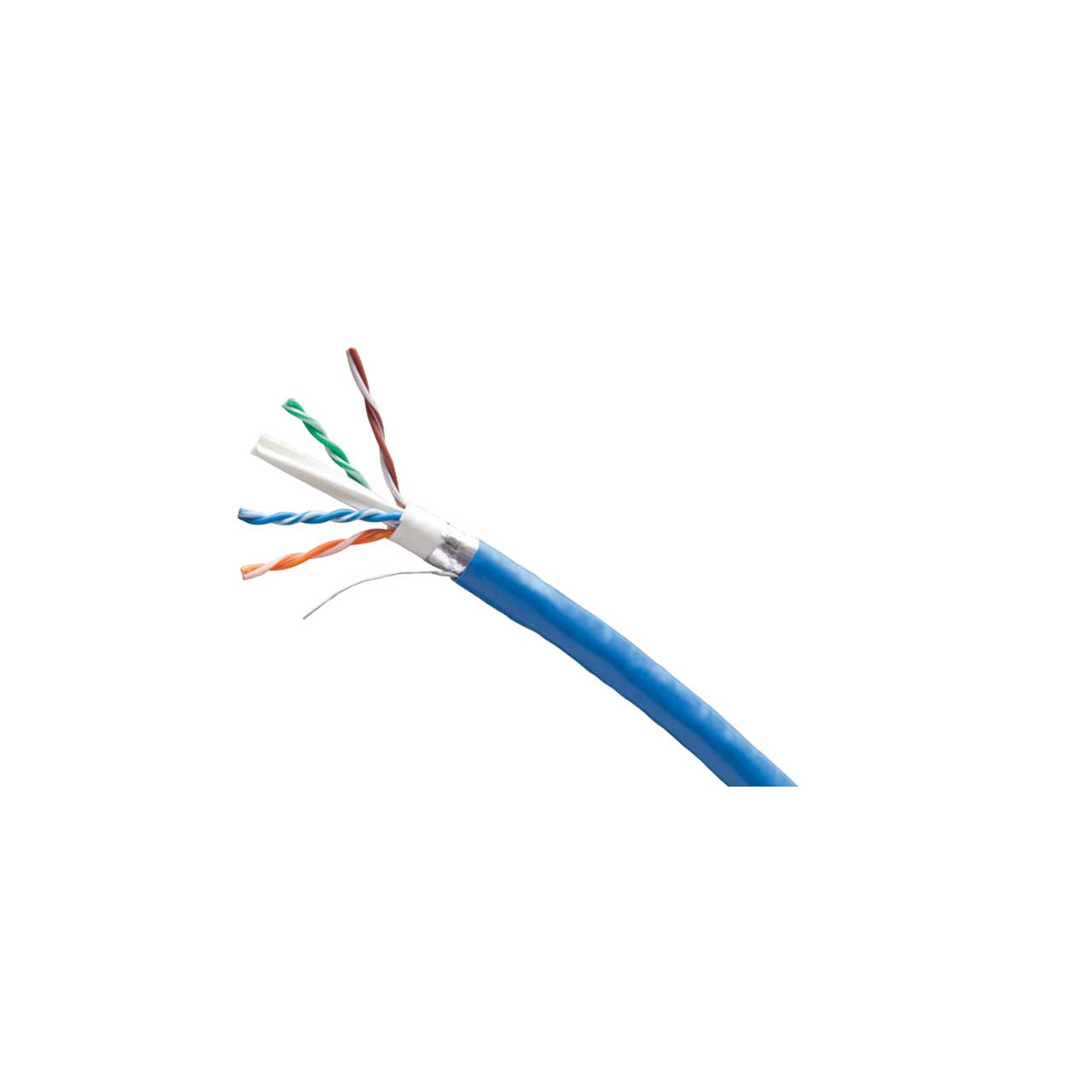

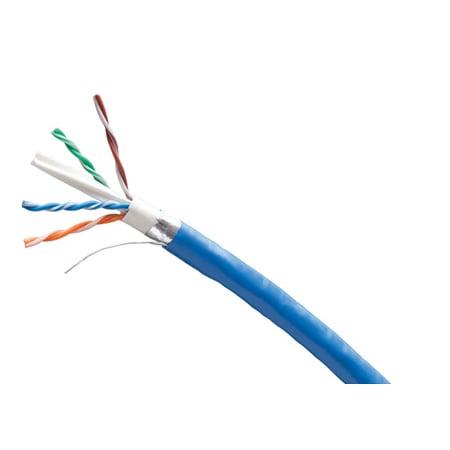

    Belden 10GX63F is a Plenum-CMP, F/UTP, 10GX Category 6A Enhanced Premise Horizontal Cable (625MHz). It features 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors and is Foil Shielded in a Flamarrest® PVC-LS Jacket.

    Belden Category 6A Copper Cable offers a wide range of options for your CAT 6A network. Some options that are available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry's gold standard for performance, while, Belden's newest cable, 10GXW, is the industry's smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.

    Applications
    Premise Horizontal Cable
    Ethernet up to 10GBASE-T
    Wi-Fi 6, Wi-Fi 5
    Surveillance
    HDBaseT
    PoE++, PoE+, PoE
    Noisy Environments

    • Features:

      • Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
      • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
      • Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
      • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
      • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

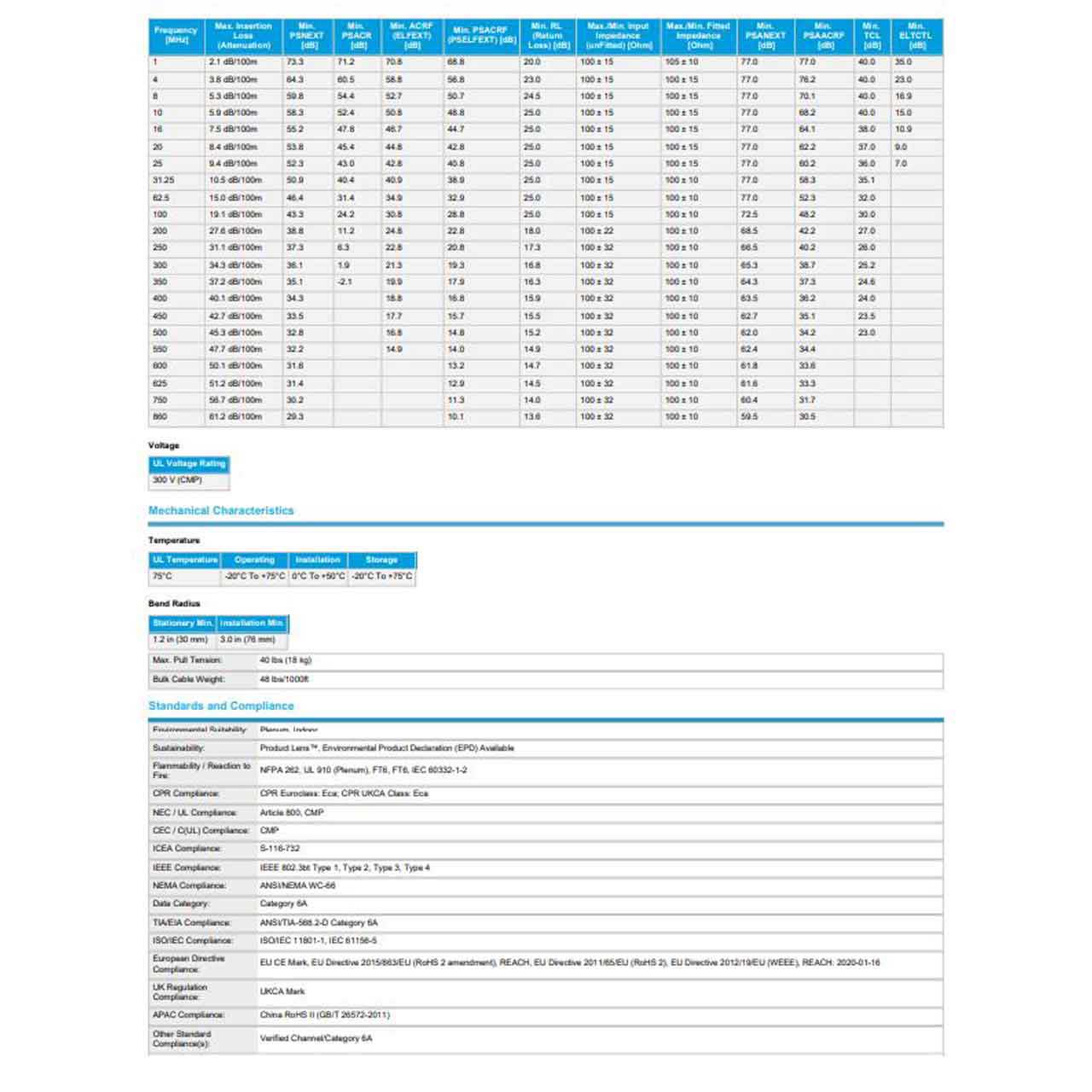

    • Specifications:

      • Conductor: 4 Pair, 23 AWG Solid Stranding Bare Copper
      • Insulation Material: FEP
      • Inner Jacket Nom. Diameter 0.26 in (6.6 mm)
      • Inner Jacket Material: PVC
      • Inner Jacket Ripcord: Yes
      • Outer Jacket Material: Flamarrest
      • Outer Jacket Material: Tape - Bi-Laminate (Alum+Poly) 100%
      • Outer Jacket Nom. Diameter: 0.310 in (7.87 mm)
      • Outer Jacket Ripcord: Yes
      • Overall Cable Diameter (Nominal): 0.310 in (7.87 mm)
      • Overall Cabling Separator Material: Patented X-Spline Center Member
      • Storage Temperature Range: -20 to +80° C
      • Installation Temperature Range: +5 to +50° C
      • Operating Temperature Range: -10 to +75° C
      • Bulk Cable Weight: 45 lbs/1000 ft.
      • Max. Recommended Pulling Tension: 45 lbs.
      • Min. Bend Radius/Minor Axis: 1.200 in.
      • Min. Bend/Installation: 3 in.
      • NEC/(UL) Specification: CMP
      • CEC/C(UL) Specification: CMP
      • EU Directive 2011/65/EU (ROHS II): Yes
      • EU CE Mark: Yes
      • EU Directive 2000/53/EC (ELV): Yes
      • EU Directive 2002/95/EC (RoHS): Yes
      • EU RoHS Compliance Date (mm/dd/yyyy): 03/07/2011
      • EU Directive 2002/96/EC (WEEE): Yes
      • EU Directive 2003/11/EC (BFR): Yes
      • CA Prop 65 (CJ for Wire & Cable): Yes
      • MII Order #39 (China RoHS): Yes
      • Telecommunications Standards: Category 6A - TIA 568.C.2
      • ANSI Specification: ANSI/TIA 568-C.2 Category 6A
      • UL Flame Test: NFPA 262 Plenum Flame Test (UL910)(FT6)
      • C(UL) Flame Test: FT6
      • CSA Flame Test: FT6
      • Suitability - Indoor: Yes
      • Plenum (Y/N): Yes
      • Capacitance (pF/ft): 17.00
      • Velocity of Propagation: 64%
      • Delay (ns/100 m): 538 @ 100MHz
      • Delay Skew (ns/100 m): 45
      • DC Resistance @ 20° C (Ohm/100 m): 8.2
      • Voltage: 300 V RMS

    • Item Includes:

      • 10GX63F Category 6A Cable - Blue - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825102472
