Belden 1192A Star Quad Low Impedance Mic & Instrument Cable Str BC 4x24AWG - Blue - Per Ft

ITEM #: BL-1192A BE MFG #: BL-1192A G7X1000

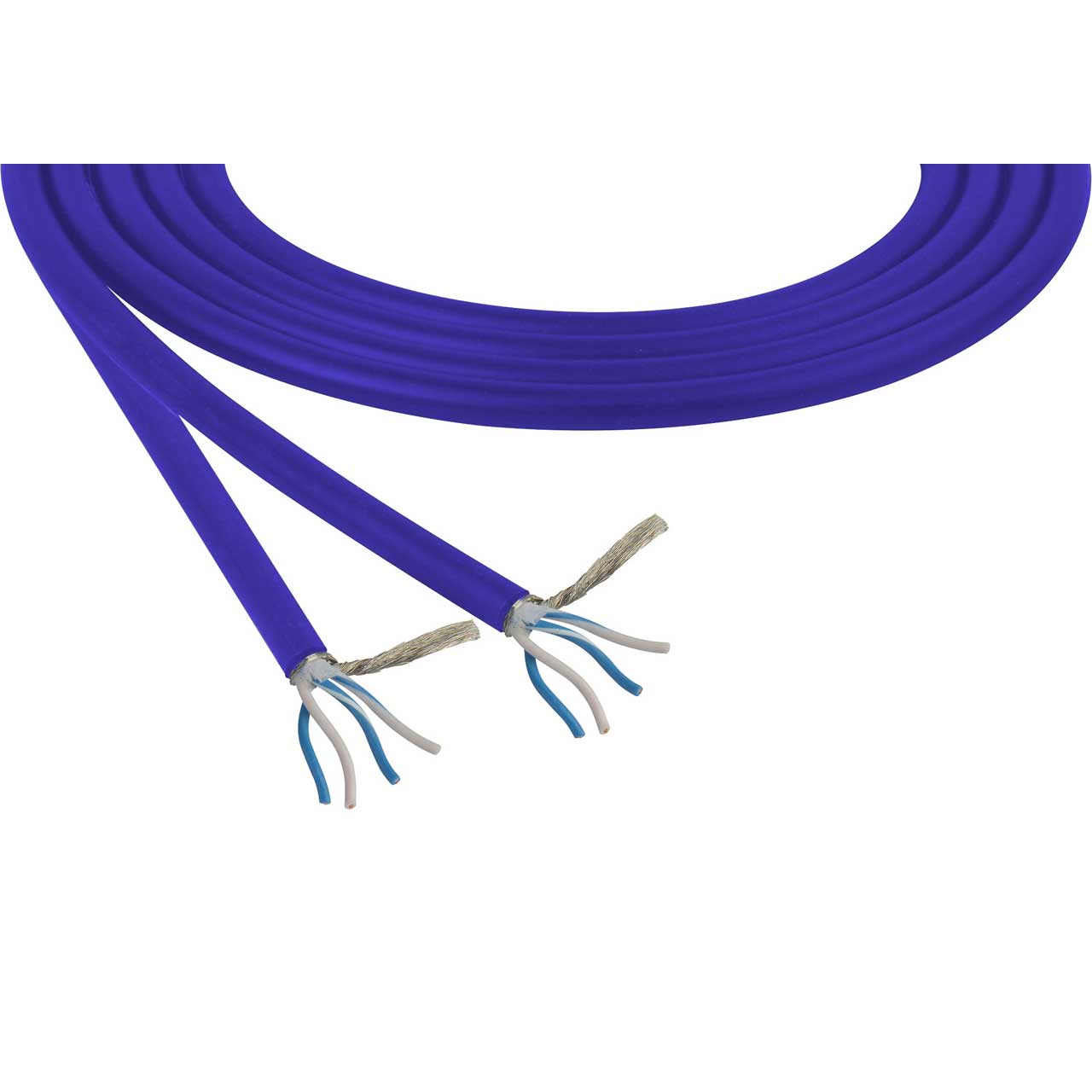

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    BL-1192A G7X1000 - Overview

    Belden 1192A is a 4 Conductor Star Quad Microphone Cable. It's 24 AWG (42 x 40) High Conductivity Bare Copper with PE Insulation, 92% Tinned Copper Braid Shield in a PVC Jacket.

    Belden Microphone Cables are available in a variety of high-performance analog and digital options that withstand constant handling and use, as well as deployable cables for harsh environments. Belden also offers a variety of cables with specialty options, such as small diameters, high flexibility and pulling tensions up to 250 lbs.

    Low Noise for high-EMI environments
    Line level balanced analog audio

    • Features:

      • High Performance: Belden microphone cables are made with high-conductivity copper
      • Withstands Constant Use: Flexible EPDM rubber jackets are built to last
      • Experience Less Distortion: Cables feature low capacitance
    • Specifications:

      • Conductor Element: Conductor(s)
      • Conductor Number of Element: 4
      • Conductor Size: 24 AWG
      • Conductor Stranding: 42x40
      • Conductor Material: BC - Bare Copper
      • Insulation Element: Conductor(s)
      • Insulation Material: PE - Polyethylene
      • Insulation Nom. Thickness: 0.016 in (0.41 mm)
      • Insulation Nom. Insulation Diameter: 0.056 in (1.4 mm)
      • Insulation Color Code: Blue, White, Blue/White Stripe, White/Blue Stripe
      • Outer Shield Type: Braid
      • Outer Shield Material: Tinned Copper (TC)
      • Outer Shield Coverage: 92%
      • Outer Shield Notes: Paper tape under braid
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.044 in (1.1 mm)
      • Outer Jacket Nom. Diameter: 0.245 in (6.22 mm)
      • Overall Cable Diameter (Nominal): 0.245 in (6.22 mm)
      • Voltage Rating: 100 V
      • Operating Temperature Range: -30°C To +75°C
      • Non-UL Temperature Rating: 75°C
      • Bulk Cable Weight: 33 lbs/1000 ft.
      • Max. Recommended Pulling Tension: 21 lbs.
      • Min. Bend Radius (Install)/Minor Axis: 2.450 in.
      • EU CE Mark: Yes
      • EU Directive 2000/53/EC (ELV): Yes
      • EU Directive 2002/95/EC (RoHS): Yes
      • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
      • Plenum (Y/N): No
      • Impedance (Ohm): 40
      • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
      • APAC Compliance: China RoHS II (GB/T 26572-2011)
    • Item Includes:

      • 1192A Star Quad Cable Str BC 4x24AWG - Blue - Per Ft
    • Warranty:

      • Limited 10 Year Warranty
