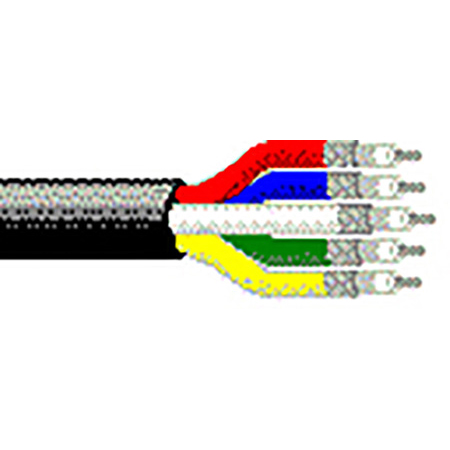

Belden 1279P 25AWG Plenum Mini Hi-Res 5 Component Video Cable - 1000 Foot Roll

Name: Belden 1279P 25AWG Plenum Mini Hi-Res 5 Component Video Cable - 1000 Foot Roll
Brand: Belden
SKU: BL-1279P-1000
Price: 2006.08 USD
Availability: SoldOut

ITEM #: BL-1279P-1000 MFG #: 1279P 0101000

Belden

Lengths:

Lengths

Availability: Sold Out

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

1279P 0101000 - Overview

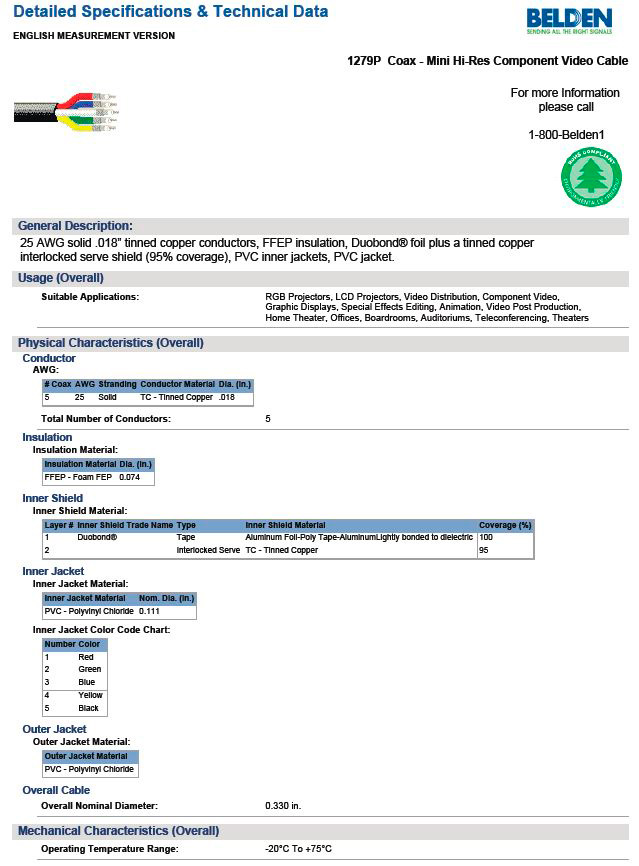

Belden 1279P RGB Video Coax, 5 Coax 25 AWG solid tinned copper conductors, foam FEP insulation, Duobond foil + 95% tinned copper interlocked serve shield, inner PVC jackets, Plenum, PVC jacket. Suitable for RGB Projectors, LCD Projectors, Video Distribution, Component Video, Graphic Displays, Special Effects Editing, Animation, Video Post Production, Home Theater, Offices, Boardrooms, Auditoriums, Teleconferencing, and Theaters applications.

Specifications:
- AWG: 25
- Stranding: Solid
- Material: TC - Tinned Copper
- Nom. Diameter: 0.018in
- Conductors: 5
- Nominal Conductor DCR: 34 Ohm/1000ft
- Nominal Inner Shield DCR: 5.4 Ohm/1000ft
- Outer Conductor DCR: 5.4 Ohm/1000ft
- Nom. Capacitance Conductor to Shield: 16.8 pF/ft
- Nominal Inductance: 0.087 uH/ft
- Nominal Characteristic Impedance: 75 Ohm
- Nominal Delay: 1.26 ns/ft
- Nominal Velocity of Propagation (VP) [%]: 81%
- UL Voltage Rating: 300 V RMS
- Non-UL Temp Rating: 75°C
- UL Temp Rating: 60°C
- Operating Temp Range: -20°C To +75°C
- Bulk Cable Weight: 60 lbs/1000ft
- Max. Pull Tension: 83 lbs
- Min Bend Radius (Overall): 3.25 in
- Min Bend Radius (Each Coax): 1.1 in
- NEC/(UL) Compliance: CMP
- CEC/C(UL) Compliance: CMP
- RG Type: Sub-miniature 59
- Environmental Space: Indoor - Plenum
GTIN:
0612825110262
