Belden 1304A4 4 Channel 4 Pair 24 AWG CatSnake Cable - Matte Black - 1000 Foot

ITEM #: BL-1304A4B591000 MFG #: 1304A4-B591000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$5,581.50

Our Price:

$4,195.01

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

1304A4-B591000 - Overview

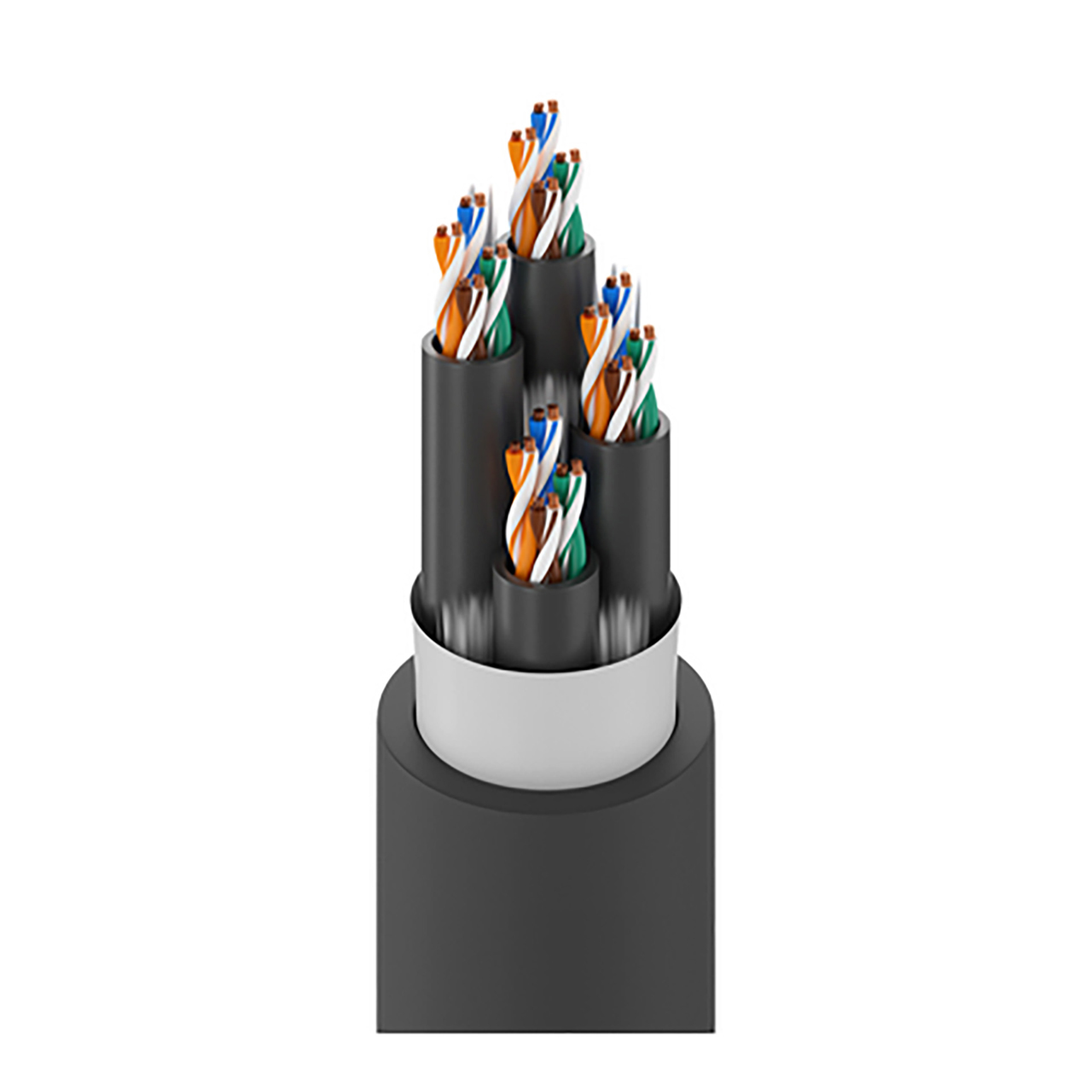

The Belden 1304A4 is 24 AWG Bonded-Pairs stranded (7x32) bare copper conductors, polyolefin insulation Multi-Conductor CatSnake Cable. Four x 4 pair cables bundled under a PVC jacket. Sequential marking at two foot intervals. Suitable Applications include: Field Deployable Cat5e Patch, CobraNet, eSnake, Ethersound, Digital Audio over Ethernet.

  • Specifications:

    • Conductor: 16 pair 24 AWG 7x32 stranding Bare Copper
    • Insulation Material: Polypropylene
    • Inner/Outer jacket Material: Belflex(R) Polyvinyl Chloride
    • Operating Temperature Range: -22°F to 167°F (-30°C To +75°C)
    • Bulk Cable Weight: 210 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 176 lbs.
    • Min. Bend Radius/Minor Axis: 7.750 in.
    • Compliance:
      - EU Directive 2015/863/EU (RoHS 2 amendment)
      - EU Directive 2011/65/EU (RoHS 2)
      - EU Directive 2012/19/EU (WEEE)
    • Suitability - Indoor: Yes
    • Suitability - Outdoor: Yes
    • Plenum (Y/N): No
    • Nominal Velocity Propagation: 70%
    • Max Operating Voltage: 300 V RMS


  • Item Includes:

    • 1x Belden 1304A4 24 AWG CatSnake Cable - 1000 Foot - Black


  • GTIN:

    0612825111122
