Belden 1502SB Multimedia Control Cable - Rated-CMG-LS - 2-22 AWG Stranded Tinned Copper Pairs 1-18 AWG - Black - 1000 Ft

ITEM #: BL-1502SB-1000BK MFG #: 1502SB 0101000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,507.60

Our Price:

$1,149.13

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    1502SB 0101000 - Overview

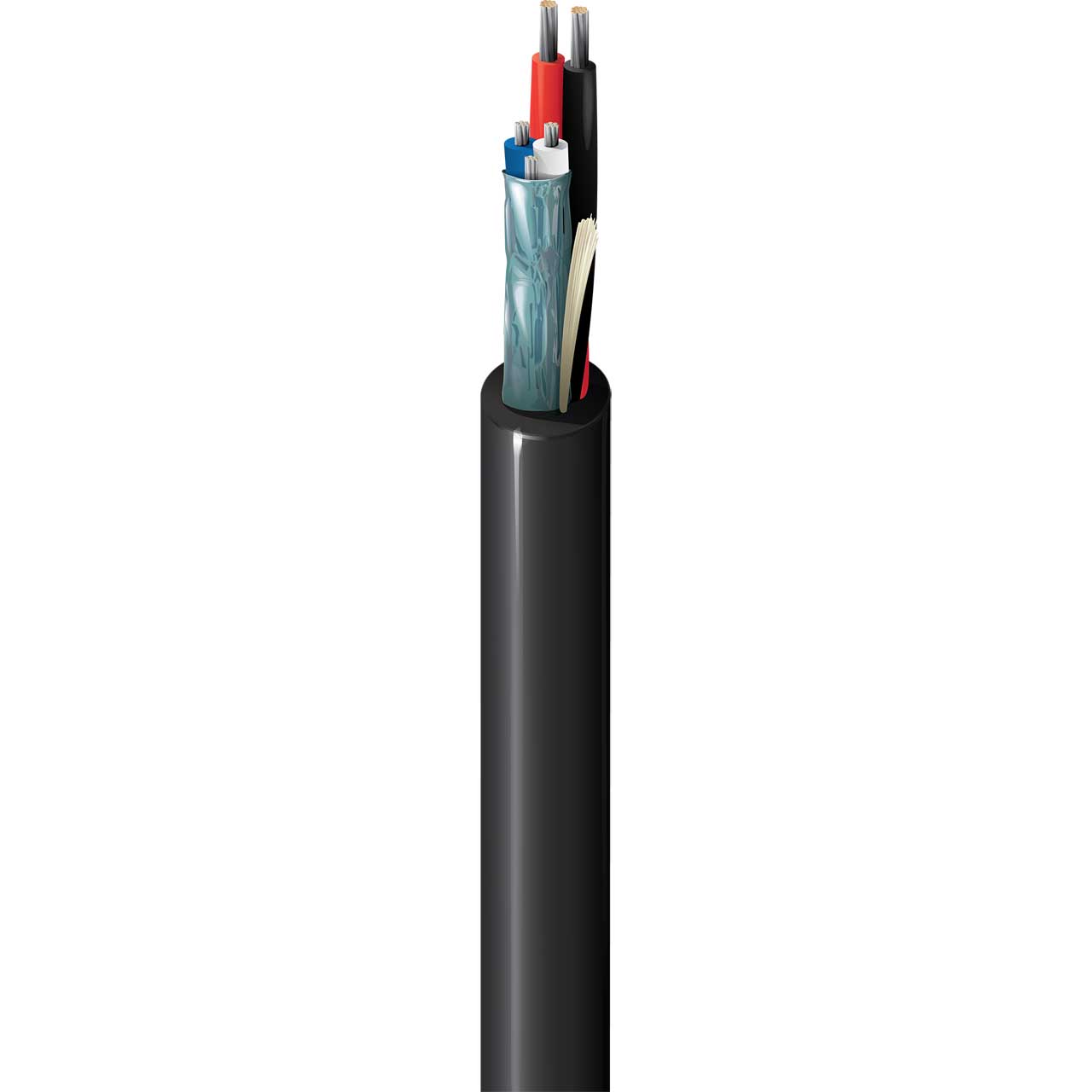

    Belden 1502SB is a Multimedia Control Cable, Rated-CMG-LS with 2-22 AWG stranded tinned copper pairs (data) with Datalene® insulation, Beldfoil® shield, drain, 1-18 AWG stranded tinned copper pair with polypropylene insulation, unshielded, LSZH jacket.

    Suitable for ABS Type Approved, Shipboard, Multi-Media Control, RS-422, RS--232, CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1685 FT4 Loading, Limited Smoke, IEC 60332-3-22 (Category A), 60332-1, 60331-23 applications.

    • Specifications:

      • Conductors
      • 22 AWG - 7x30 Tinned Copper - 0.0285in Nom diameter, 2 conductor
      • 18 AWG - 16x30 Tinned Copper - 0.047in Nom Diameter, 1 pair
      • Conductor Count 4

        Conductor DCR
      • 22 AWG - 16.3 Ohm/1000ft -16.3 Ohm/1000ft
      • 18 AWG - 6.9 Ohm/1000ft - 6.9 Ohm/1000ft

      • UL Voltage Rating 300 V RMS
      • Non-UL Temp Rating 75°C
      • Operating Temp Range -30°C To +75°C
      • Bulk Cable Weight 39 lbs/1000ft
      • Max. Pull Tension 59.8 lbs
      • Min Bend Radius/Minor Axis 2.5 in
      • NEC/(UL) Compliance CMG-LS
      • CEC/C(UL) Compliance CMG-ST1
      • CPR Euroclass Cca-s1,d1,a1
      • IEEE Compliance Std. 45 clause 23
      • Other Compliance UL444, ABWS Type Approval Certificate 06-HS184641C
      • Environmental Space Indoor - Euroclass Cca
      • UL Flammability UL1685 FT4 Loading, Limited Smoke
      • CSA Flammability FT4
      • IEC Flammability 60332-1 60332-3-22 (Category A)
      • IEEE Flammability 1202
      • UL voltage rating 300 V RMS

    • Item Includes:

      • 1x Belden 1502SB Multimedia Control Cable - Rated-CMG-LS - 2-22 AWG Stranded Tinned Copper Pairs 1-18 AWG - Black - 1000 Ft

    • GTIN:

      0612825116028
