    Belden 1700A High Performance Data Cable - Purple - 1000 Foot

    Manufacturer: Belden

    Item #: BL-1700A-B021000   •   MFG #: 1700A B021000



    List Price:$336.80
    Our Price:$259.46

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

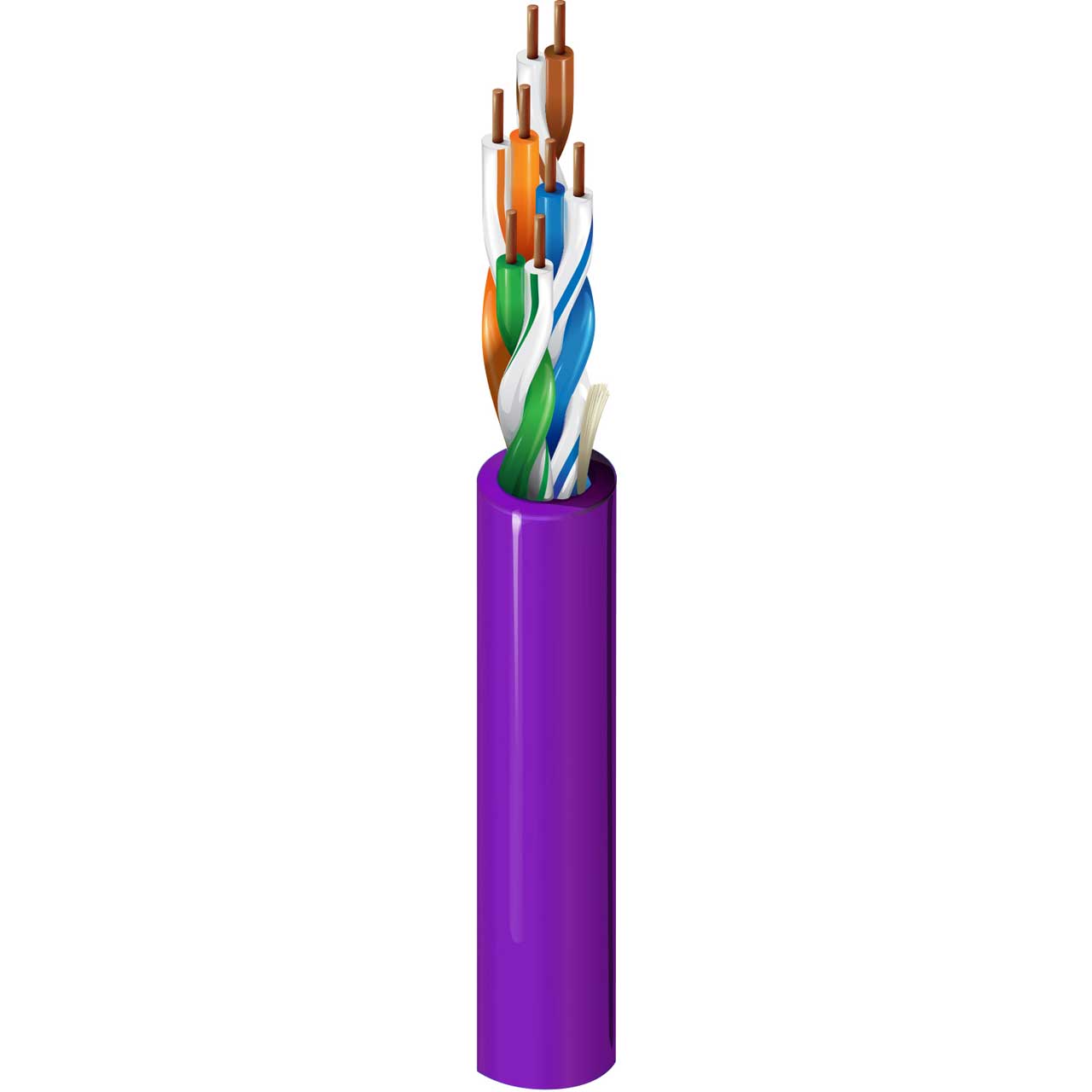

      The Belden 1700A B021000 is a CAT5e+ (350MHz), Multi-Bonded-Pair, U/UTP-unshielded, Riser-CMR, Premise Horizontal cable with 24 AWG solid bare copper conductors, ripcord, polyolefin insulation and PVC jacket.



      • Specifications

        • Number of Pairs: 4
        • AWG: 24
        • Stranding: Solid
        • Material: Bare Copper
        • Total Conductors: 8
        • Insulation: PO - Polyolefin
        • Color Chart: 1. White/Blue Stripe & Blue, 2. White/Orange Stripe & Orange, 3. White/Green Stripe & Green, 4. White/Brown Stripe & Brown
        • Jacket: PVC - Polyvinyl Chloride
        • Jacket Color: Purple
        • Nominal Diameter: 0.202"
        • Ripcord: Yes
        • Unbalanced Capacitance (Max): 66pF/100m
        • Nom Mutual Capacitance: 15pF/ft
        • Shielding: UTP - Unshielded
        • Conductor DCR (Max): 9Ω/100m
        • DCR Unbalance (Max): 3%
        • Max Delay: @ 100MHz 537.6ns/100m
        • Max Delay Skew: 25ns/100m
        • Nominal VP: 70%
        • UL Voltage: 300V RMS
        • Storage/Operating Temperature: -4° - 167°F
        • Bulk Cable Weight: 22lbs
        • Max Pull Tension: 40lbs


      • GTIN:

        0612825121374
