Belden 1800B CMR Single-Pair Digital Audio/Microphone Cable Str/TC Shielded - 24 AWG - Gray - 1000 Foot

ITEM #: BL-1800B-1000 MFG #: 1800B T5X1000

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with Minimum Order Banner

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$964.40

Our Price:

$634.30

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    1800B T5X1000 - Overview

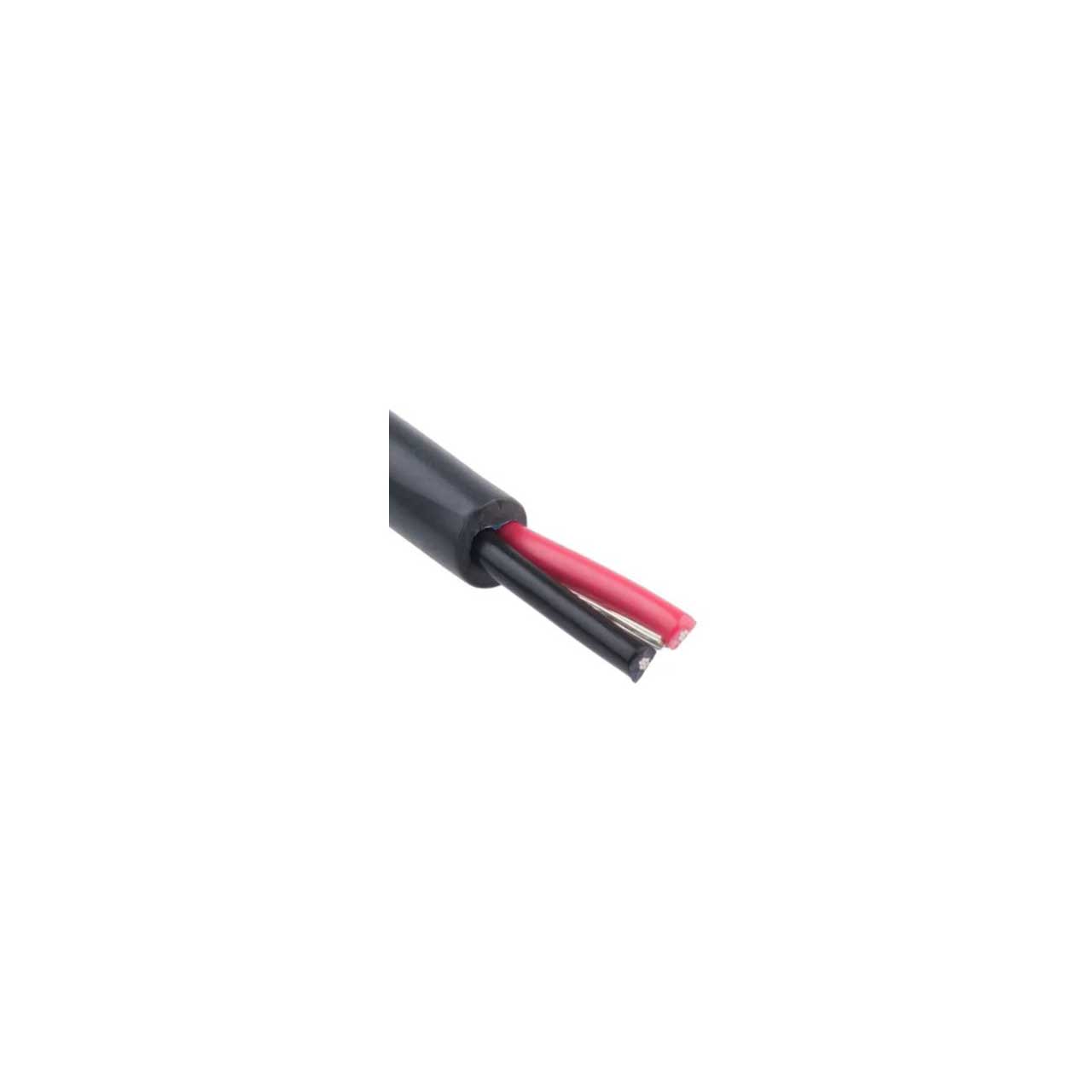

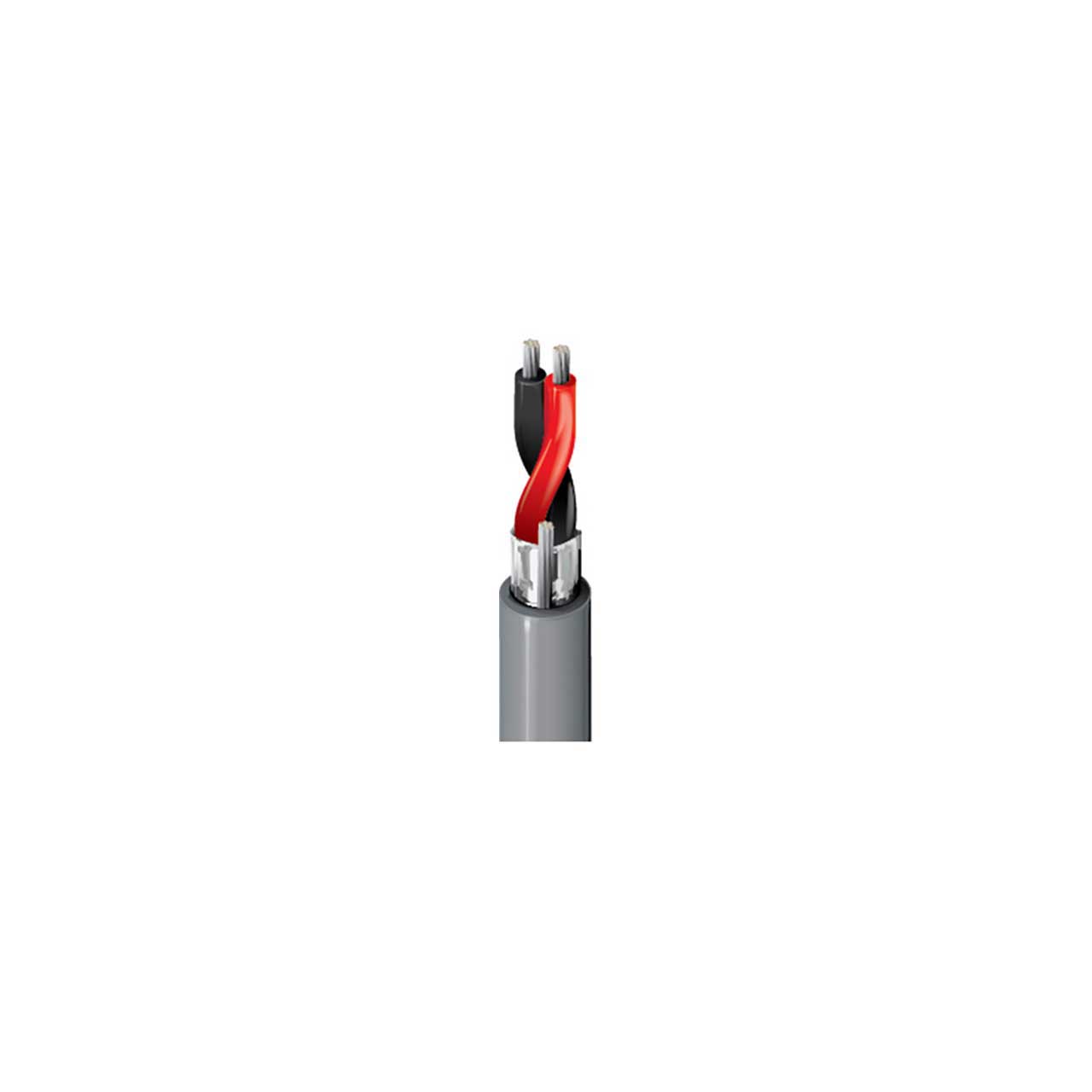

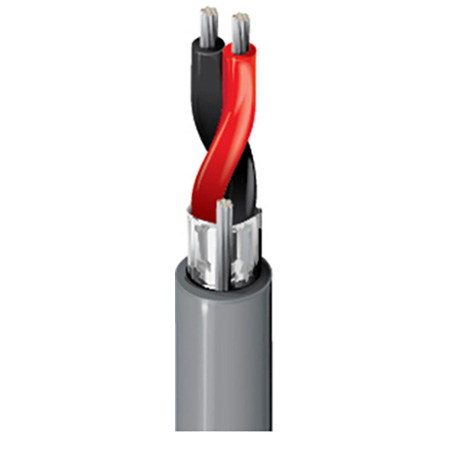

    Belden 1800B is a CMR (riser) rated, single-pair bonded, Digital Audio/Microphone Cable. It's 24 AWG (7 x 32) Tinned Copper, with Datalene® Insulation, an Overall Beldfoil® Shield in a PVC Jacket.

    Belden offers a comprehensive selection of digital audio cables for professional recording applications, sound system installations and multi-channel audio applications. Digital Audio Cables from Belden can be used anywhere a traditional analog or digital shielded pair cables are used. These cables are also ideally suited for applications requiring small size, low weight and high-performance.

    Applications
    Digital audio
    Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles

    • Features:

      • Patented Bonded-Pair technology For maximum ruggedness & consistent electrical performance during & following installation
      • Ready-to-use Jacketed single pair cable eliminates inconvenient steps for faster installation times & deployment efficiencies
      • High impedance Ensures low capacitance, ideally suited for use as an analog or digital cable
      • Ruggedized PVC jacket designed for flexibility

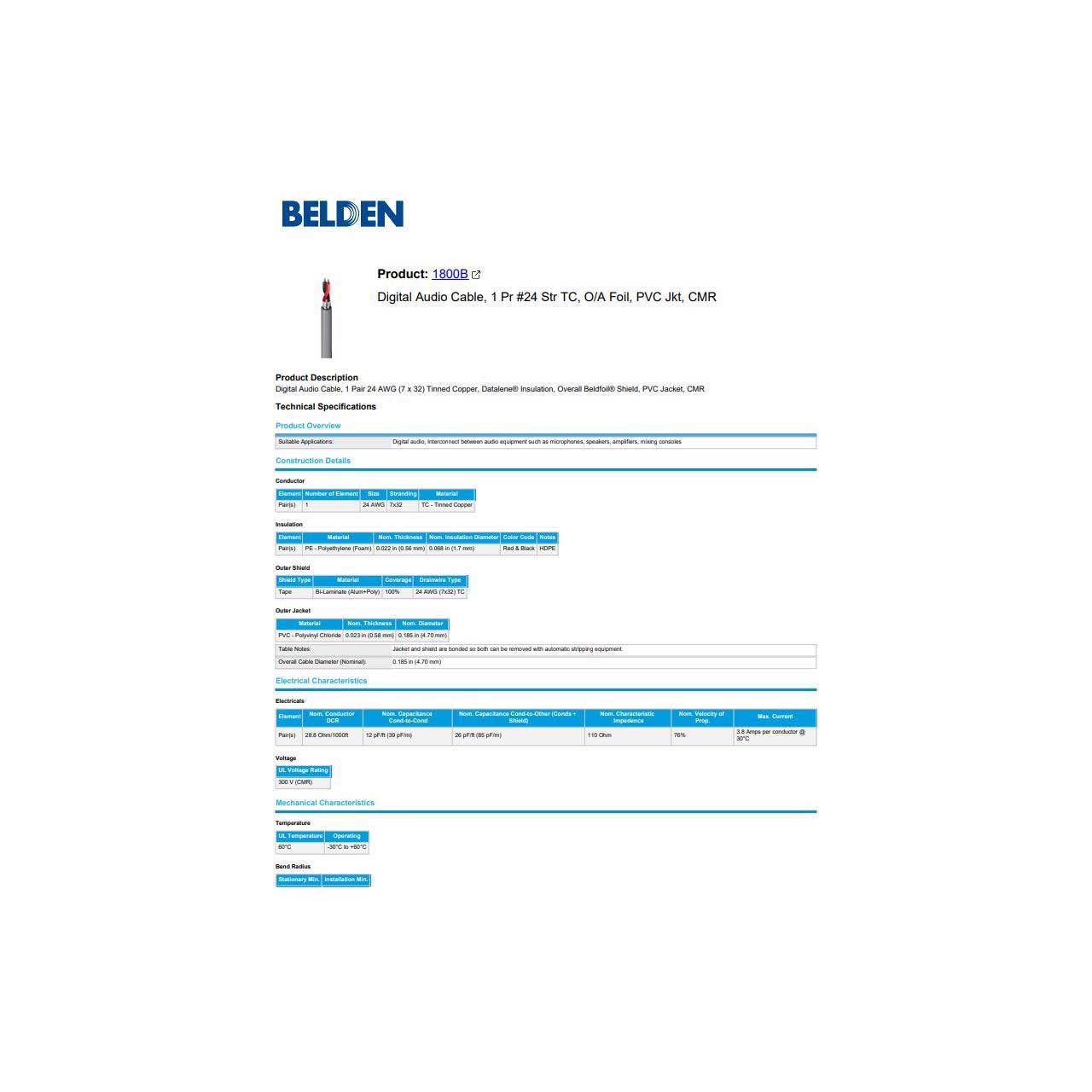

    • Specifications:

      • Number of Pairs: 1
      • Total Number of Conductors: 2
      • Conductor AWG: 24
      • Conductor Stranding: 7x32
      • Conductor Material: TC - Tinned Copper
      • Insulation Material: PE - Polyethylene (Foam)
      • Insulation Nom. Thickness: 0.022 in (0.56 mm)
      • Insulation Nom. Insulation Diameter: 0.068 in (1.7 mm)
      • Insulation Color Code: Red & Black
      • Insulation Notes: HDPE
      • Outer Shield Type: Tape 100%
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Drainwire Type: 24 AWG (7x32) TC
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.023 in (0.58 mm)
      • Outer Jacket Nom. Diameter: 0.185 in (4.70 mm)
      • Overall Cable Diameter (Nominal): 0.185 in (4.70 mm)
      • Notes: Jacket and shield are bonded so both can be removed with automatic stripping equipment.
      • Nom. Conductor DCR: 23.7 Ohm/1000ft
      • Nom. Capacitance Cond-to-Cond: 12 pF/ft
      • Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft
      • Characteristic Impedence: 110 Ohm
      • Nom. Velocity of Prop.: 76%
      • Max. Current: 2.75 Amps per conductor @25°C
      • Plenum (Y/N): N
      • Plenum Number: BL-1801B
      • UL Voltage Rating: 300 V (CMR)
      • UL Rating Temp: 60°C
      • Operating Temp: -30°C to +60°C
      • Max. Pull Tension: 16.5 lbs
      • Bulk Cable Weight: 16 lbs/1000ft
      • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
      • Flammability / Fire Resistance: IEC 60332-1-2
      • NEC / UL Compliance: Article 800, CMR
      • CEC / C(UL) Compliance: CMR

    • Item Includes:

      • 1800B Digital Audio/Microphone Cable - Gray - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825122784
