Belden 1800F Flexible CL2R-rated Single Pair Shielded AES/EBU 110 Ohm Digital Mic Cable Str BC 24 AWG - Green - 1000 Ft

Name: Belden 1800F Flexible CL2R-rated Single Pair Shielded AES/EBU 110 Ohm Digital Mic Cable Str BC 24 AWG - Green - 1000 Ft
Brand: Belden
SKU: BL-1800F-1000GN
Price: 999.00 USD
Availability: Backorder

ITEM #: BL-1800F-1000GN MFG #: 1800F G7WU1000

Belden

Colors:

Colors

List Price:

$2,764.80

Our Price:

$999.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1800F G7WU1000 - Overview

High Flex AES/EBU Cable 1000Ft Roll Green

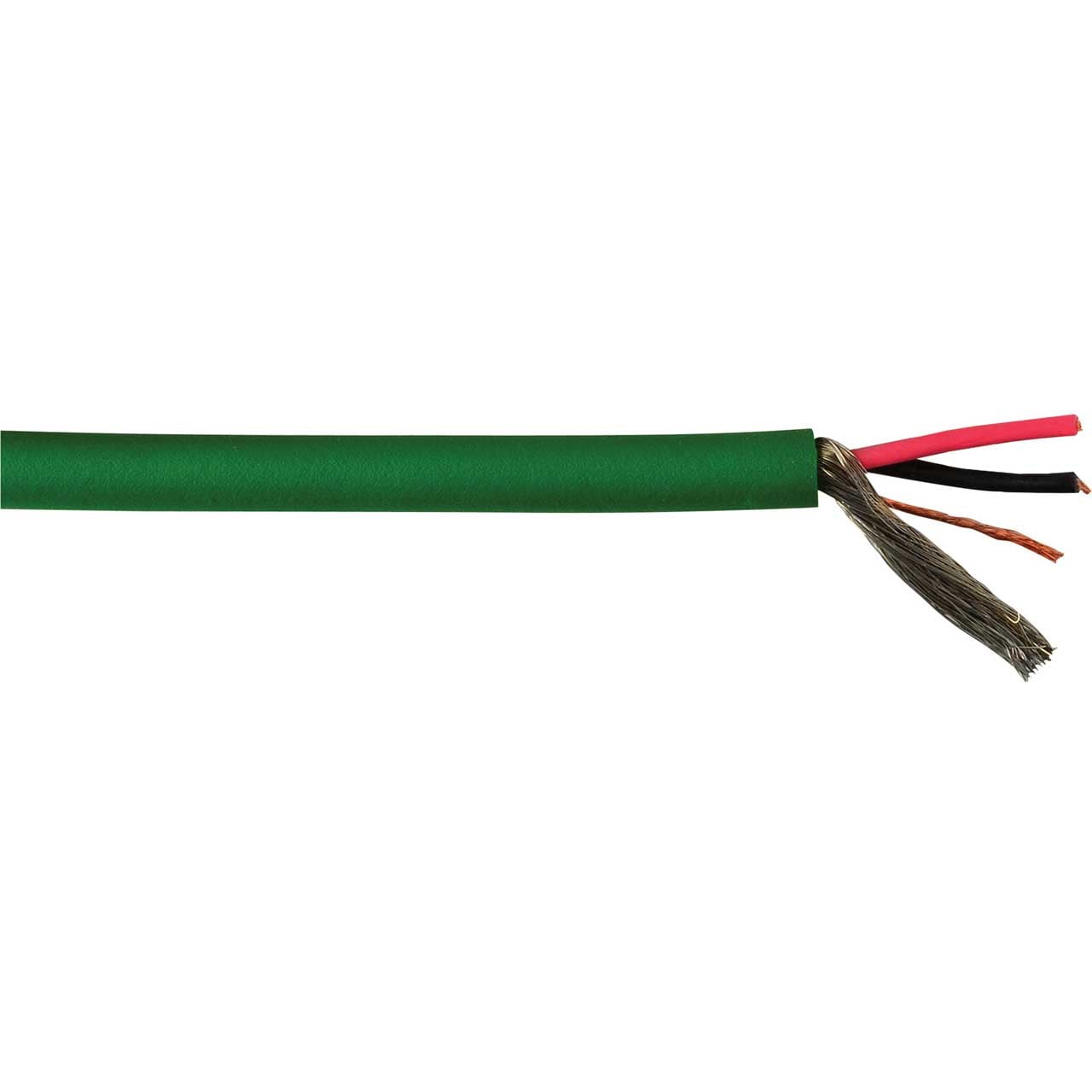

The Belden 1800F is a Single-Pair, Bare Copper, 24 AWG (42x40) Digital Microphone Cable. It features PE insulation, a 95% Tinned Copper French Braid Shield in a flexible, CL2R-rated (Class 2 riser rated) Matte PVC jacket.

Belden Microphone Cables are available in a variety of high-performance analog and digital options that withstand constant handling and use, as well as deployable cables for harsh environments. Belden also offers a variety of cables with specialty options, such as small diameters, high flexibility, and pulling tensions up to 250 lbs.

Applications:
• Digital microphone
• Flexible interconnect cable for digital audio

Features:
- High Performance: Belden microphone cables are made with high-conductivity copper
- Withstands Constant Use: Flexible EPDM rubber jackets are built to last
- Experience Less Distortion: Cables feature low capacitance
Specifications:
- Conductor Number of Pairs: 1
- Total Number of Conductors: 2
- Conductor AWG: 24
- Conductor Stranding: 42x40
- Conductor Material: BC - Bare Copper
- Insulation Material: PE - Polyethylene (Foam)
- Insulation Nom. Thickness: 0.017" (0.43mm)
- Nom. Insulation Diameter: 0.058" (1.5mm)
- Insulation Color Code: Red & Black
- Insulation Notes: HDPE
- Outer Shield Type: French Braid
- Outer Shield Material: TC - Tinned Copper 95%
- Outer Shield Drainwire Type: 26 AWG (30x40) BC
- Outer Shield Notes: Paper tape under braid with drain over tape
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Thickness: 0.037" (0.94mm)
- Outer Jacket Nom. Diameter: 0.211" (5.36mm)
- Overall Cable Diameter (Nominal): 0.211" (5.36mm)
- Plenum (Y/N): N
- Voltage Rating: 100V
- Nom. Conductor DCR: 23.7Ω/1000ft
- Nom. Capacitance Cond-to-Cond: 12pF/ft
- Nom. Capacitance Cond-to-Other (Conds + Shield): 26pF/ft
- Characteristic Impedence: 110Ω
- Nom. Velocity of Prop.: 76%
- Max. Current: 2.75A per conductor @ 77°F (25°C)
- Nom Outer Shield DCR: 6.42Ω/1000ft
- Max. Pull Tension: 41.5lbs
- Bulk Cable Weight: 23lbs/1000ft
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability/Fire Resistance: UL1666 Riser
- NEC/UL Compliance: Article 725, CL2R
Item Includes:
- 1800F Digital Microphone Cable - Black - 1000 Foot
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825122869
