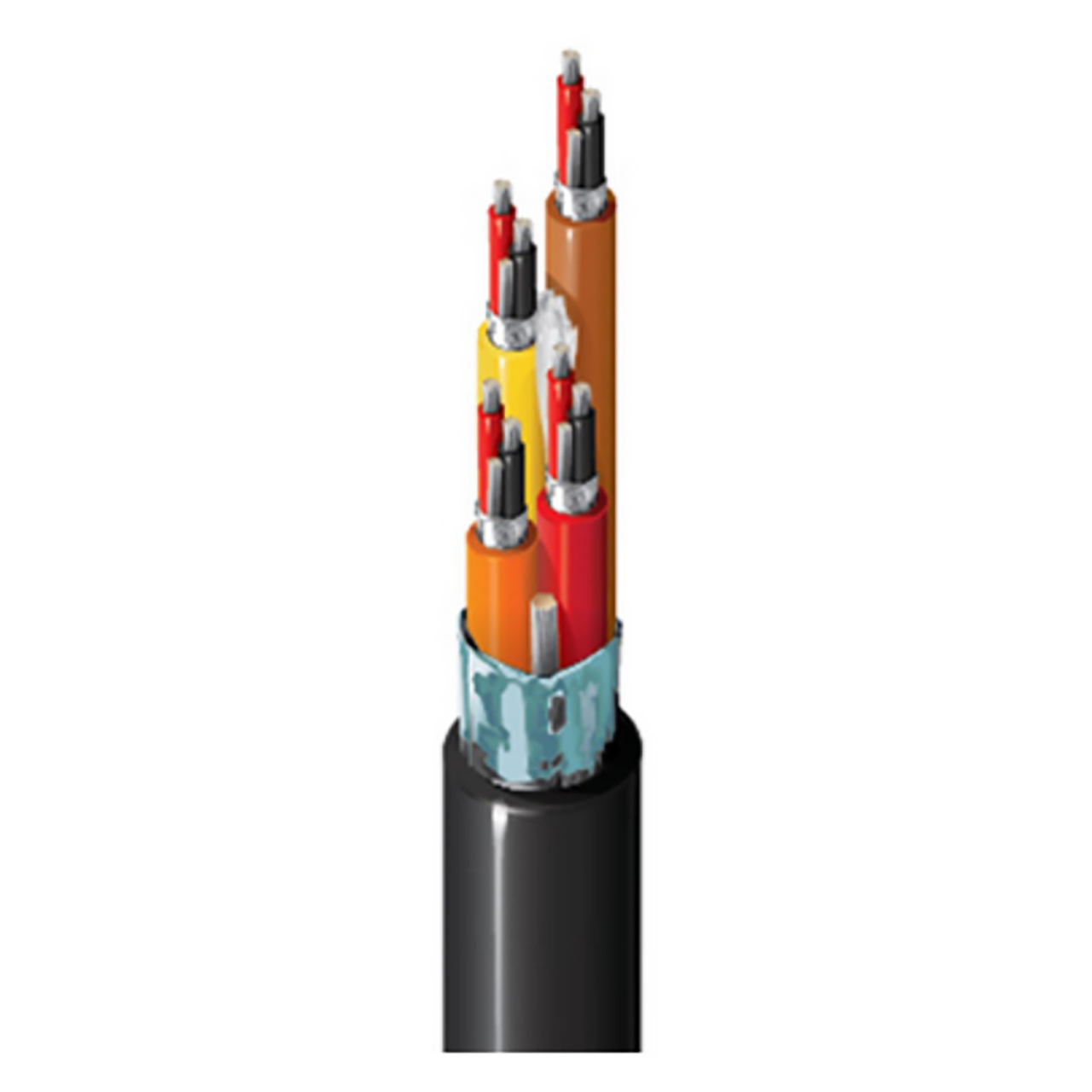

Belden 1816R CM Rated 6-Pair 22AWG Stranded TC Analog Audio Snake Cable - Black - Per Foot

1816R PER FOOT - Overview

• Features:

  • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
  • Rated for Many Applications: Audio Cables are CM rated
  • Improved Performance: Shorting fold technique to maintain metal-to-metal contact


• Specifications:

  Conductor
  • No. of Elements: 6
  • Size: 22 AWG
  • Stranding: 7x30
  • Material: TC - Tinned Copper

    Insulation
  • Material: PP - Polypropylene
  • Nom. Thickness: 0.010" (0.25mm)
  • Nom. Insulation Diameter: 0.05" (1.3mm)
  • Color Code: Black, Red

    Inner Shield
  • Shield Type: Tape
  • Material: Bi-Laminate (Alum+Poly)
  • Coverage: 100%
  • Drainwire Type: 100%: 22 AWG (7x30) TC

    Outer Shield
  • Shield Type: Tape
  • Material: Bi-Laminate (Alum+Poly)
  • Coverage: 100%
  • Drainwire Type: 18 AWG (19x30) TC

    Inner Jacket
  • Material: PVC - Polyvinyl Chloride
  • Nom. Diameter: 0.133" (3.38mm)

    Outer Jacket
  • Material: PVC - Polyvinyl Chloride
  • Nom. Thickness: 0.030" (0.76mm)
  • Nom. Diameter: 0.462" (11.7mm)
  • Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.462" (11.7mm)

    Electrical
  • Nom. Conductor DCR: 14.8Ω/1000ft (48.6Ω/km)
  • Nom. Capacitance Cond-to-Cond: 31pF/ft (100pF/m)
  • Nom. Capacitance Cond-to-Other (Conds + Shield): 56pF/ft (180pF/m)
  • Nom. Characteristic Impedence: 50Ω
  • Nom. Inductance: 0.18µH/ft (0.59µH/m)
  • Nom. Velocity of Prop.: 66%
  • Max. Current: 2.0 Amps per conductor
  • Nom Outer Shield DCR@Cond DCR1-cnv: 11.8Ω/1000ft (38.7Ω/km)

    Voltage
  • UL Voltage Rating: 300V (CMR)

    Mechanical
  • UL Temperature: 140°F (60°C)
  • Operating: -22°F - 140°F (-30°C - 60°C)

    Bend Radius
  • Stationary Min: 4.6" (120mm)
  • Installation Min: 4.6" (120mm)
  • Max. Pull Tension: 131lbs (59.4kg)
  • Bulk Cable Weight: 120lbs/1000ft (180kg/km)

    Standards and Compliance
  • Environmental Suitability: Indoor - Riser, Indoor, Aerial - Black only, When supported by messenger wire
  • Flammability/Reaction to Fire: UL1666 Riser, IEC 60332-1-2
  • CPR Euroclass: Eca
  • NEC/UL Compliance: Article 800, CMR
  • CEC/C (UL) Compliance: CMR
  • European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 1816P


• Item Includes:

  • 1x Belden 1816R CM Rated 6-Pair 22AWG Stranded TC Analog Audio Snake Cable - Black - Per Foot
