Belden 2142A Category 6A Indoor/Outdoor CMR/CMX F/UTP Cable - Black - 1000 Foot

ITEM #: BL-2142A-1000BK MFG #: 2142A 0101000

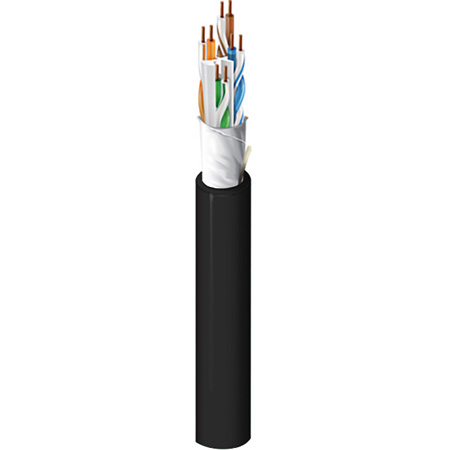

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$1,254.80

Our Price:

$1,018.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    2142A 0101000 - Overview

    Belden 2142A CAT6A (625 MHz), 4 Pair, F/UTP-Foil Shielded, Indoor/Outdoor CMR-CMX Outdoor, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented EquiSplineT, Overall Beldfoilr Shield with Drain Wire, Ripcord, UV-Resistant PVC Jacket. Suitable for Outdoor-OSP, Premise Horizontal Cable, 10 Gigabit Ethernet, Wireless, Wi-Fi, 100Base TX, 100Base VG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio AES51, RS-422, Noisy Environments, PoE, PoE+ applications.

    • Specifications:

      • No. of Pairs: 4
      • AWG: 23
      • Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Insulation Material: PO - Polyolefin
      • Separator Material: Patented EquiSpline Central Member
      • Overall Cabling Separator Material: Beldfoil
      • Overall Nominal Diameter: 0.300 in.
      • Color: BLACK
      • Overall Cabling Separator Material: Beldfoil
      • Overall Nominal Diameter: 0.300 in.
      • Storage Temperature Range: -40°C To +75°C
      • Installation Temperature Range: -20°C To +75°C
      • Operating Temperature Range: -40°C To +75°C
      • UL Temperature Rating: 90C
      • Non-UL Temperature Rating: 90C
      • Bulk Cable Weight: 41 lbs/1000 ft.
      • Max. Recommended Pulling Tension: 45 lbs.
      • Min. Bend Radius/Minor Axis: 1.250 in.
      • Min. Bend/Installation: 3 in.
      • Nom. Mutual Capacitance: 17.000
      • Maximum Capacitance Unbalance (pF/100 m): 45
      • Nominal Velocity of Propagation: VP (%) 65.000
      • Delay (ns/100 m): 538.000 max
      • Typical Delay Skew: Delay Skew (ns/ft) 30.000
      • Max. Delay Skew: Delay Skew (ns/100 m) 45.000
      • Maximum Conductor DC Resistance: DCR @ 20°C (Ohm/100 m) 8.200
      • Max. Operating Voltage - UL: 300 V RMS
