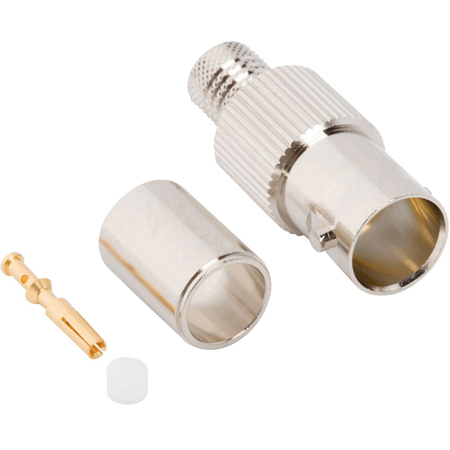

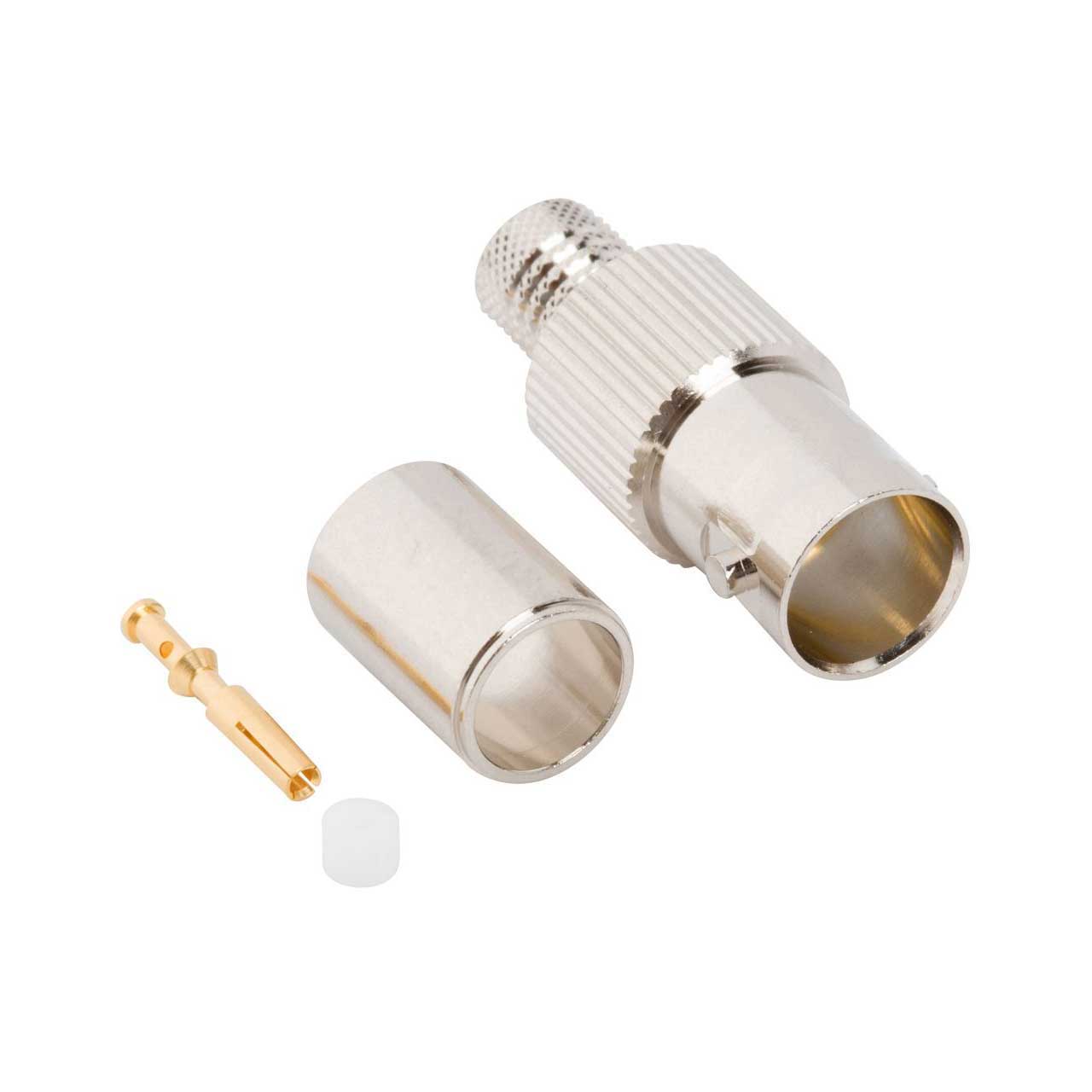

Amphenol 031-70557-12G BNC Straight Crimp Jack for Belden 1695A/4694P 75 Ohm 12G Optimized

031-70557-12G - Overview

• Specifications:

  • Body Finish: Nickel
  • Body Material: Brass
  • Cable Type (Terminates to): Belden 1695A, Belden 4694P, Belden 82120, Belden 82248, Belden 87120, Belden 89120, Belden 89248
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Contact Termination: Crimp
  • Coupling Mechanism: Bayonet
  • Export Control Classification Number: EAR99
  • Frequency (Max GHz): 12
  • Gender: Jack
  • IP Rating: Not Rated
  • Impedance (Ohms): 75
  • Insulator Material: PTFE
  • Isolated: No
  • Low PIM: No
  • Mil Qualified: No
  • Non Magnetic: No
  • Orientation: Straight
  • Panel Mounting Feature: Not Applicable
  • Ports: 1 (Single Port)
  • Size Category: Miniature
  • Temperature Range: -40° to 185°F (-40° to 85°C)
  • Termination Style: Cable - Crimp
