Belden 1505F CM Rated RG59 75 Ohm 6G-SDI Flexible Stranded Copper Coaxial Video Cable 22AWG - Black - Per Foot

ITEM #: BL-1505F MFG #: BL-1505F

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1.64

Our Price:

$1.16

Availability: In Stock
iAvailability Description Popup


    BL-1505F - Overview

    Double 95% Tinned Copper Braid Shield

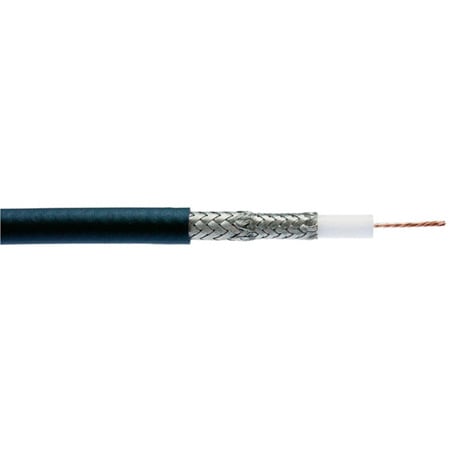

    Belden 1505F is a Flexible, 75 Ohm, RG-59, 6G-SDI Coaxial Video Cable. It's 22 AWG with a Stranded (7x29) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield in a CM Rated PVC Jacket.

    Belden’s premium 6D-SDI coax cable meets the SMPTE ST-2081 6G-SDI standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

    Applications
    Digital Video
    6 Gb/s UHDTV
    HD-SDI 1080p

    • Features:

      • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
      • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
      • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

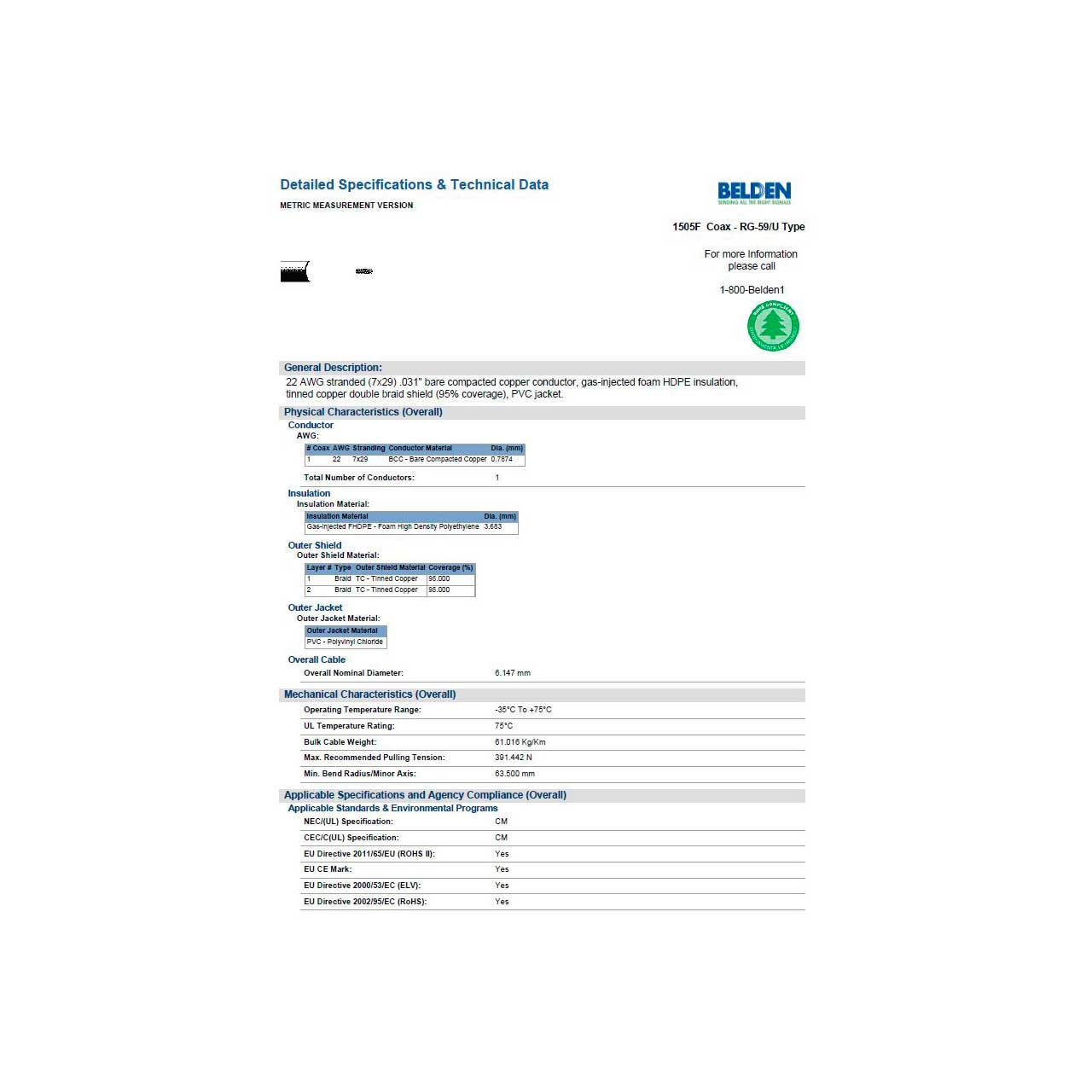

    • Specifications:

      • RG Type: 59
      • Conductor AWG: 22
      • Conductor Stranding: 7x29
      • Conductor Material: Bare Compacted Copper
      • Conductor Nominal Diameter: 0.032 in
      • Conductor Count: 1
      • Insulation Material: PE - Polyethylene (Foam)
      • Nom. Insulation Diameter: 0.145 in (3.68 mm)
      • Outer Shield Type: Braid
      • Outer Shield Material: Tinned Copper (TC)
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.242 in (6.15 mm)
      • Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)
      • Bend Radius Install. Min.: 2.4 in
      • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
      • Flammability / Reaction to Fire: UL1685 UL Loading
      • Non-UL Temp Rating: 75°C
      • UL Temp Rating: 60°C
      • Operating Temp Range: -35°C To +75°C
      • NEC/CEC Compliance: CM

    • Item Includes:

      • 1505F CM Rated RG59 Cable 22AWG - Black - Per Foot

    • Warranty:

      • Limited 10 Year Warranty
