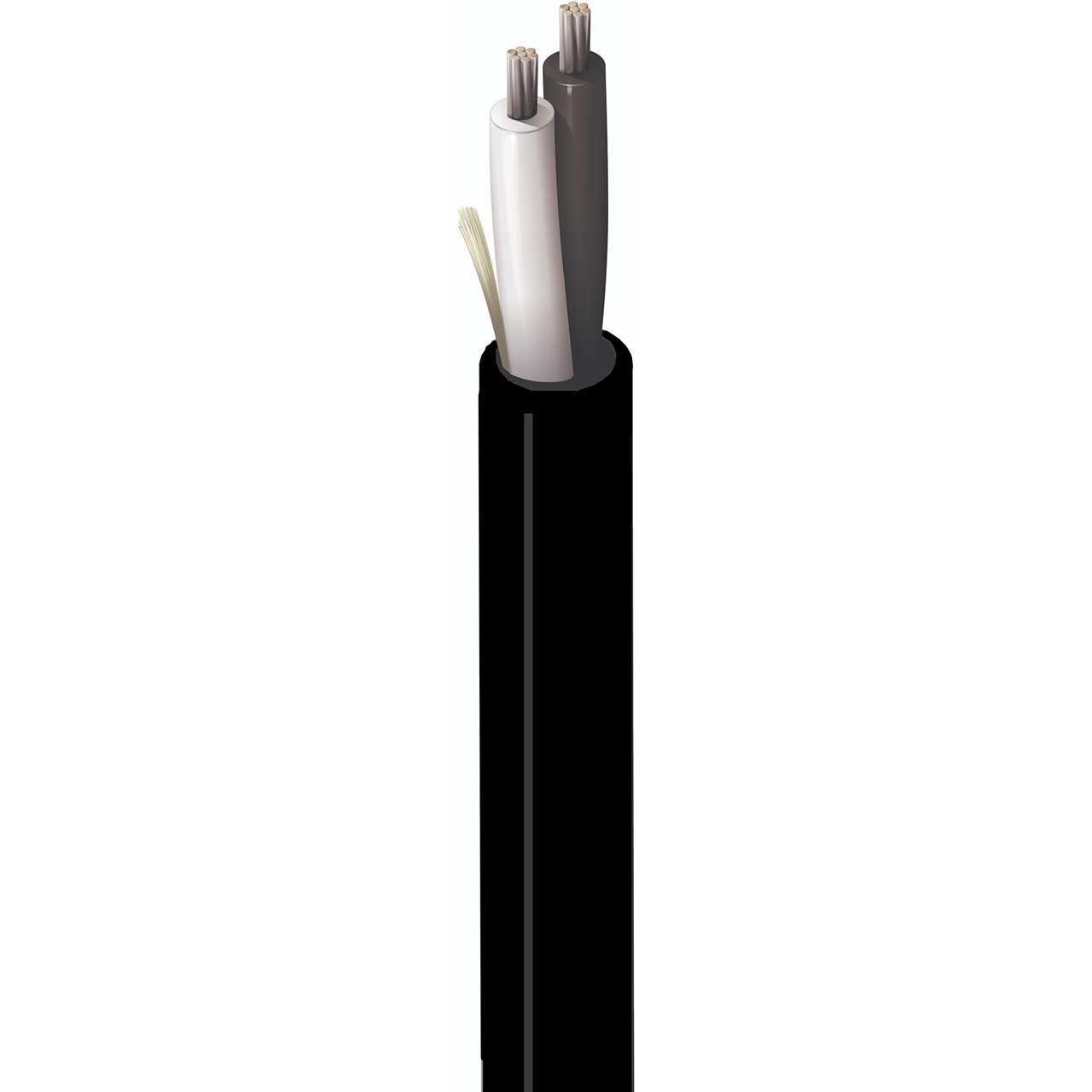

Belden 5100UE 2-14 AWG Non-Paired Unshielded Security & Commercial Audio Cable - Black - 1000 Foot/Reel

5100UE 0101000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Number of Conductors: 2
  • AWG: 14
  • Stranding: 19
  • Conductor Material: BC - Bare Copper
  • Insulation Material: PVC - Polyvinyl Chloride
  • Outer Shield Material: Unshielded Outer Jacket Material: PVC - Polyvinyl Chloride
  • Plenum (Y/N): N
  • Plenum Number: BL-6100UE
  • Nom. Conductor DCR: 2.53 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 2.53 Ohm/1000ft
  • Max. Current: 22 pF/ft 8 Amps per conductor @ 25°C
  • UL Voltage Rating: 300 V (CL3R, FPLR)
  • UL Rating Temp: 75°C
  • Operating Temp: -20°C to +75°C
  • Max. Pull Tension: 95 lbs
  • Bulk Cable Weight: 33 lbs/1000ft
  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Fire Resistance: UL1666 Riser, IEC 60332-1-2
  • NEC / UL Compliance: Article 725, Article 760, CL3R, FPLR
  • CPR Euroclass: Eca


• GTIN:

  0612825423324
