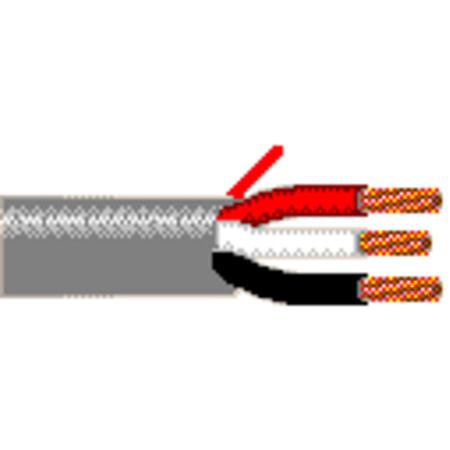

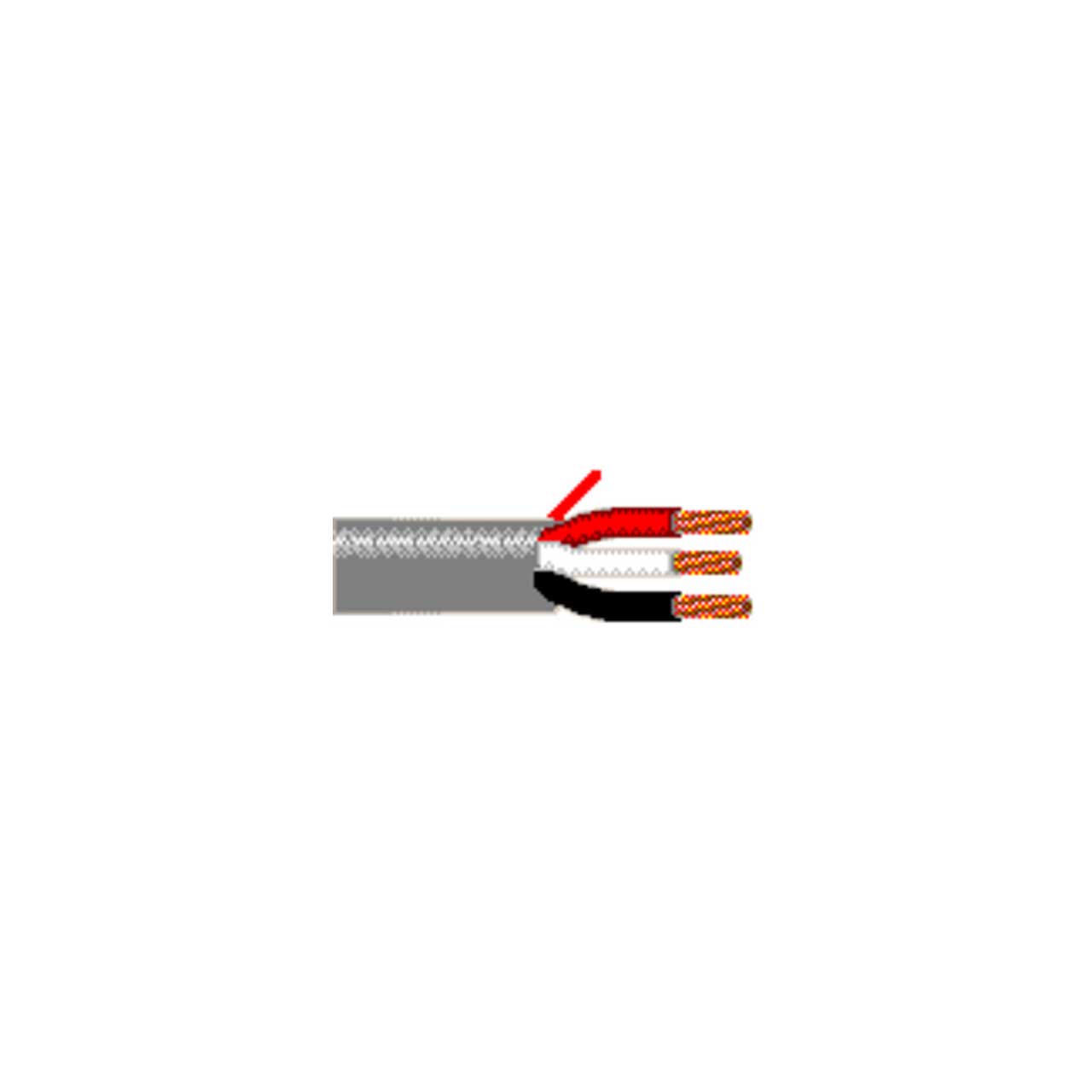

Belden 5201UE 3-Conductor 16 AWG Security & Commercial Audio Cable - Unshielded - Gray - 1000 Foot/Crate Reel Put-Up

ITEM #: BL-5201UE-1000GY MFG #: 5201UE 0081000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$730.80

Our Price:

$555.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    5201UE 0081000 - Overview

    Belden 5201UE is a Security & Commercial Audio Cable, Riser-CMR, 3-16 AWG stranded bare copper conductors with polyolefin insulation, and PVC jacket with ripcord. Suitable for Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits applications.

    • Specifications:

      • AWG: 16
      • Stranding: 19x29
      • Material: BC - Bare Copper
      • Conductor Count: 3
      • UL Temp Rating: 75°C
      • Operating Temp Range: -20°C To +75°C
      • Bulk Cable Weight: 34.4 lbs/1000ft
      • Max Recommended Pulling Tension: 88 lbs
      • Min Bend Radius/Minor Axis: 1.875 in
      • NEC Articles: 800
      • NEC/(UL) Specification: CMR
      • CEC/C(UL) Specification: CMG
      • CPR Euroclass: Eca
      • Environmental Space: Indoor - Riser
      • C(UL) Flammability: FT4
      • UL Flammability: UL1666 Vertical Riser
      • ISO/IEC Flammability: IEC 60332-1-2
      • UL voltage rating: 300 V RMS
