Belden 5300FE Riser/CMR Security & Sound Commercial Audio Cable Shielded/BC 2x18 AWG - Gray - 1000 Ft/UnReel Box

ITEM #: BL-5300FE-1000U MFG #: 5300FE 008U1000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

5300FE 008U1000 - Overview

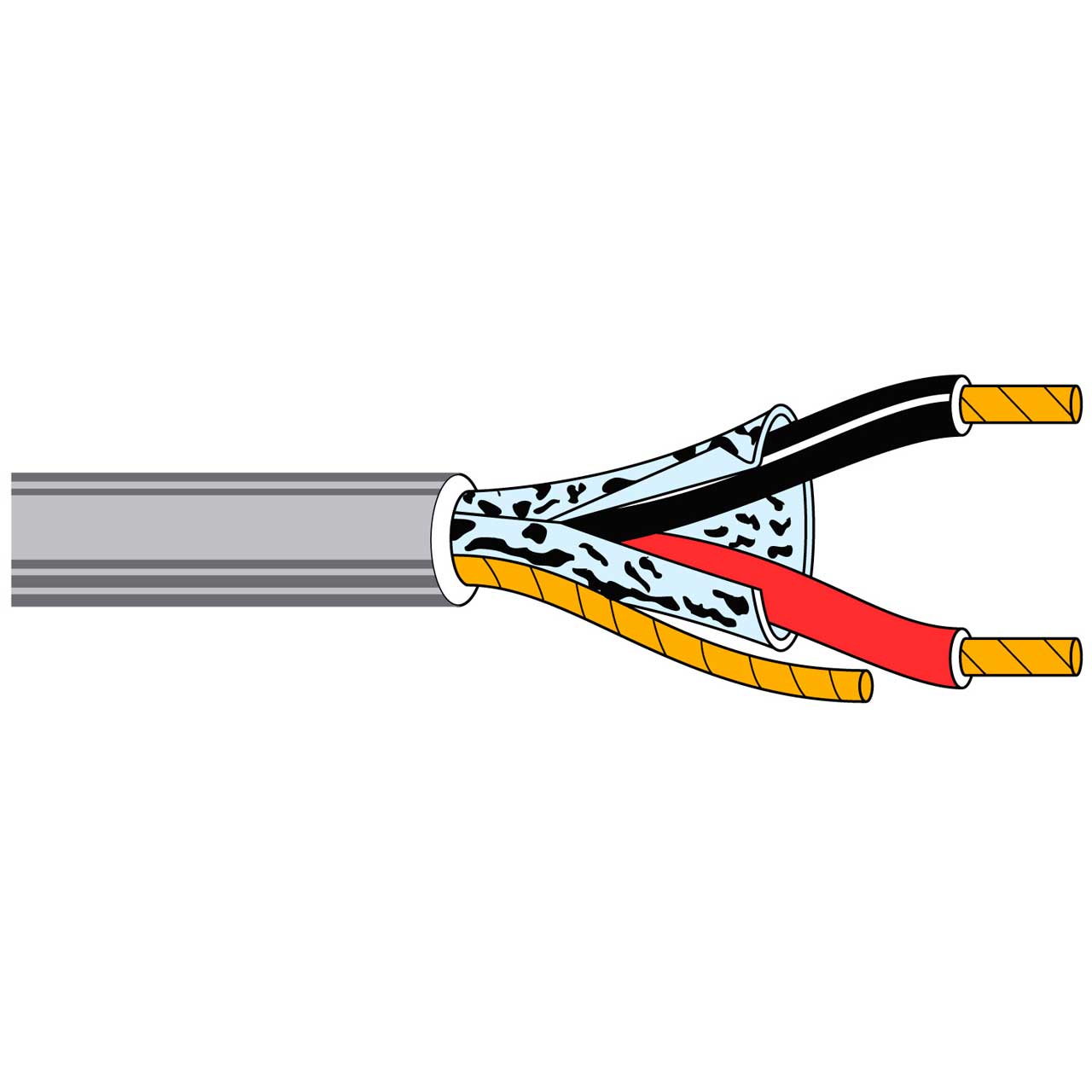

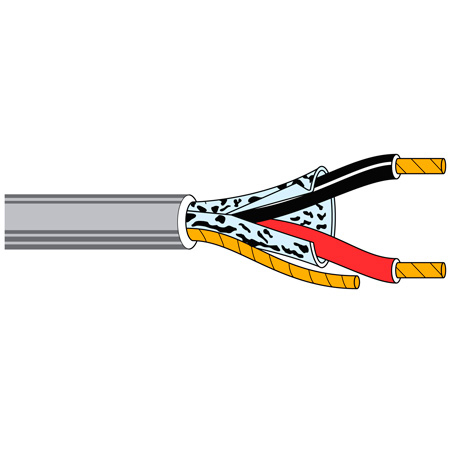

Belden 5300FE is a Security & Commercial Audio Cable. It's Riser-CMR rated and features 2-18 AWG stranded bare copper conductors with polypropylene insulation, a Beldfoil® shield in a PVC jacket with ripcord.

This cable ships in Belden's unique installer UnReel Box.

Reimagining Unreel Packaging for Enhanced Sustainability

Unreel packaging has been in use by Belden for more than 40 years and has served the industry well in terms of portability and ease of use. Unreel consists of a coil of wire or cable that is wound using patented Reelex technology. The cable is then placed into a cardboard box and smoothly dispensed from the center of the coil via a tube for easy access. Until now, that tube (called a "payout tube") was made of plastic. Today, through the work of Belden packaging engineers, a new tube design, made with recycled paper pulp, is being implemented to replace the plastic component. This allows the entire package to be placed in the paper recycling stream!

The shift towards a fully paper-based, recyclable generation of Unreel packaging is important, as there is a great deal of evidence pointing to plastic's harm on the environment. Everything from single-use plastic water bottles and grocery bags to food containers and packaging is finding its way to our oceans and piling up in landfills. Excessive use of plastic simply isn't sustainable for the planet. Therefore, it's important that we all do our part to reduce our use of plastic. Eliminating the plastic components in Unreel packaging is just one way that Belden can be part of the solution.

Intercom/PA Systems
Sound/Audio Systems

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings
  • Specifications:

    • Number of Conductors: 2
    • Total Number of Conductors: 2
    • AWG: 18
    • Stranding: 7
    • Conductor Material: BC - Bare Copper
    • Insulation Material: PVC - Polyvinyl Chloride
    • Outer Shield Material Trade Name: Beldfoil
    • Outer Shield Material: Aluminum Foil-Polyester Tape
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Plenum (Y/N): N
    • Plenum Number: BL-6300FE
  • Item Includes:

    • 5300FE Riser/CMR Security & Sound Commercial Audio Cable 2x18 AWG - Gray - 1000 Ft/UnReel Box
  • Warranty:

    • 10 Year Limited Warranty
  • GTIN:


5300FE 008U1000 - Required Accessories
