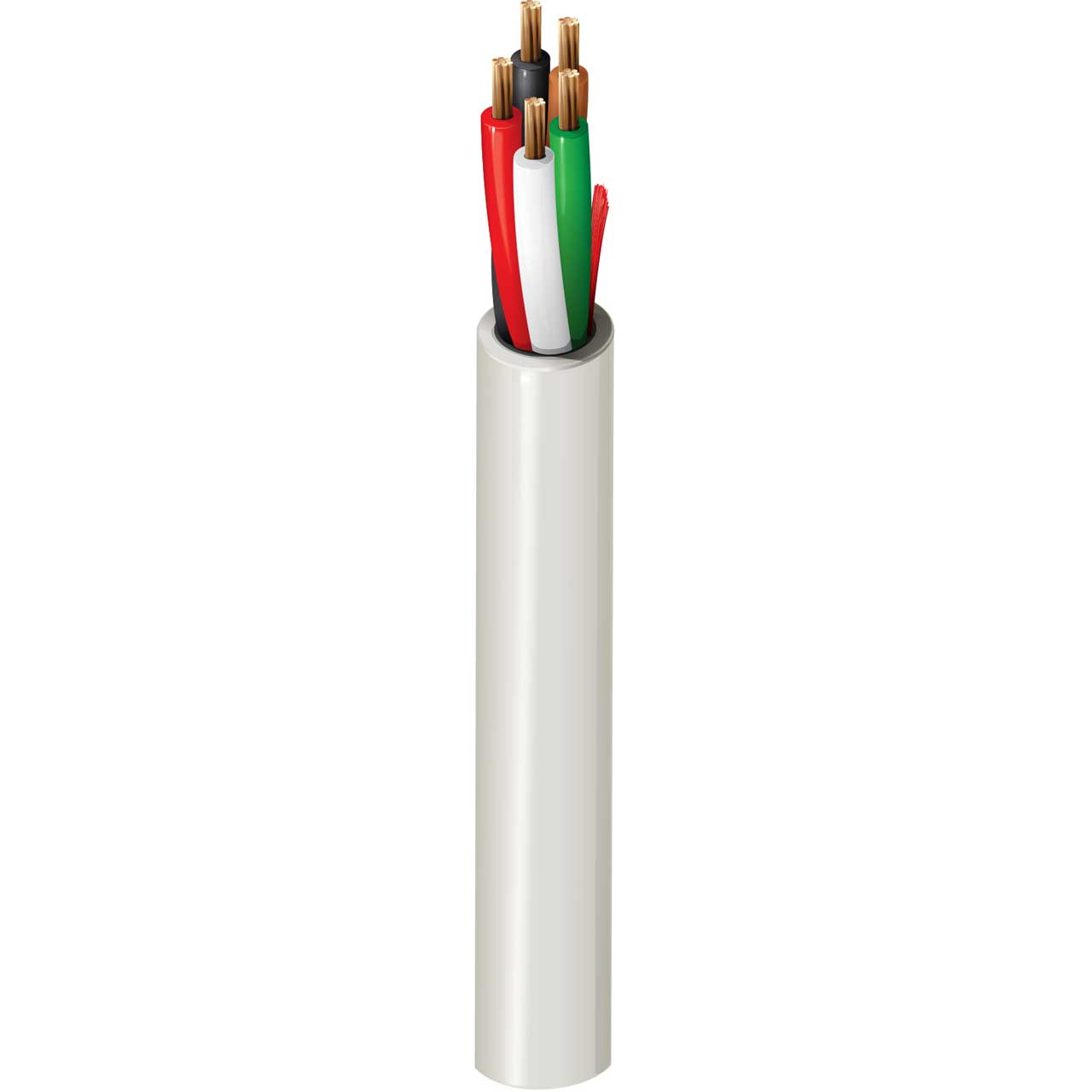

Belden 5303UE 5-18 AWG Security & Sound Cable-CMR Stranded Bare Copper Conductors - Gray - 1000 Feet

5303UE 0081000 - Overview

• Specifications:

  • No. of Elements: 5
  • Size: 18
  • Stranding: 7x26
  • Material: BC - Bare Copper

    Insulation
  • Material: PP - Polypropylene
  • Nom. Thickness: 0.008 in (0.20 mm)
  • Nom. Insulation Diameter: 0.062 in (1.6 mm)
  • Color Code: Black, Red, White, Green, Brown

    Outer Jacket
  • Material: PVC - Polyvinyl Chloride
  • Nom. Thickness: 0.017 in (0.43 mm)
  • Nom. Diameter: 0.201 in (5.11 mm)
  • Ripcord: Yes

    Electricals
  • Nom. Conductor DCR: 6.79 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m)
  • Max. Current: 4 Amps per Conductor at °


  • UL Voltage Rating: 300 V
  • UL Temperature: 75°C
  • Operating Temperature: -20°C To +75°C
  • Max. Pull Tension: 112 lbs (50.8 kg)
  • Bulk Cable Weight: 38 lbs/1000ft
  • Environmental Suitability: Outdoor
  • Flammability / Reaction to Fire: UL1666 Riser, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800


• Item Includes:

  • 1x Belden 5303UE 5-18 AWG Securtiy & Sound Cable-CMR Stranded Bare Copper Conductors - Gray - 1000 Feet
