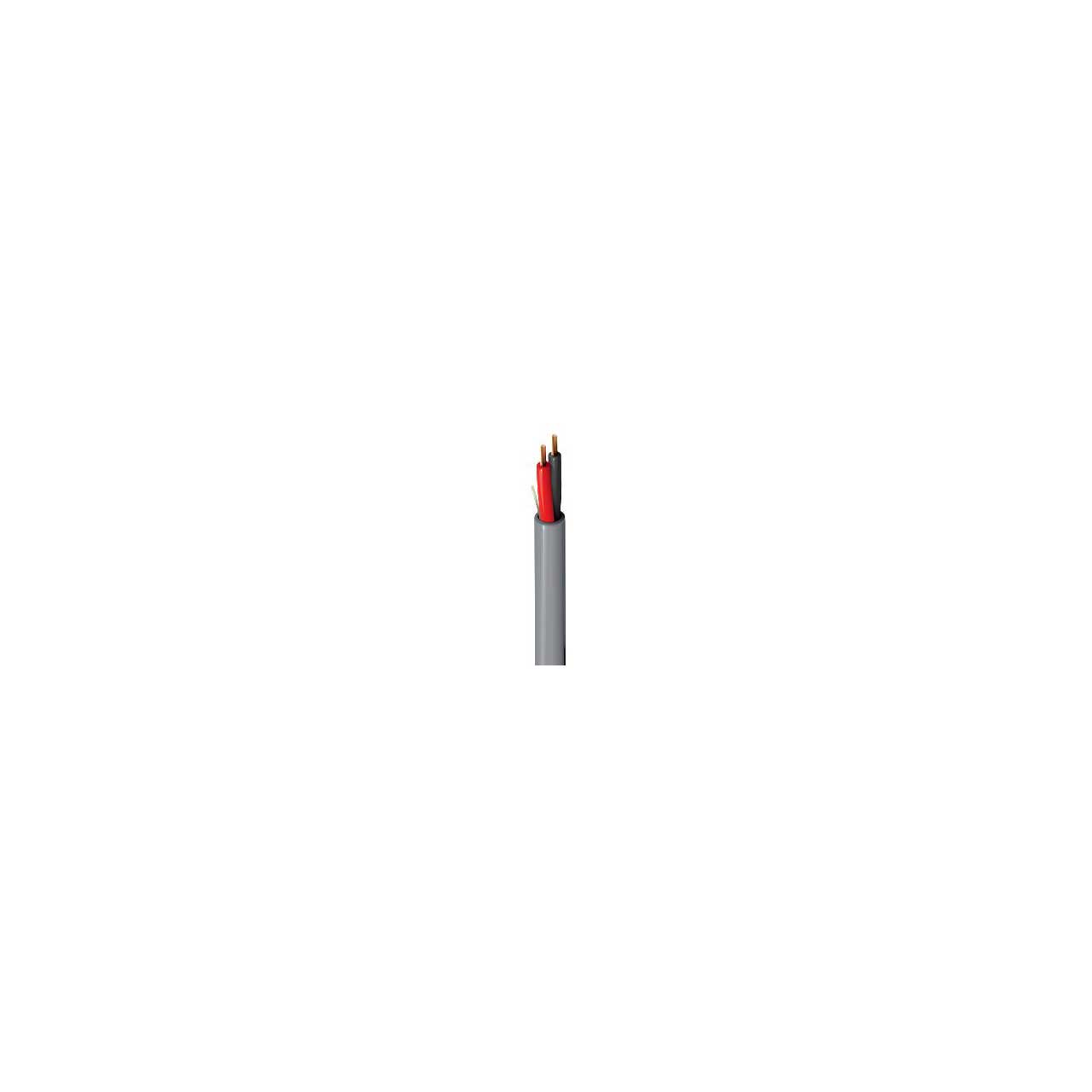

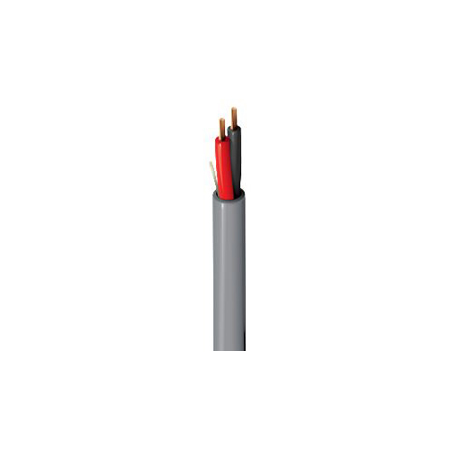

Belden 5400UE CMR/Riser 2-Conductor Security Sound & Commercial Audio Cable BC 20AWG - Gray - 1000 Foot

5400UE 0081000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • AWG: 20
  • Conductors: 2
  • Stranding: 7x28
  • Material: Bare Copper
  • Twists: 4 twist/ft
  • Nominal Conductor DCR: 10.2 Ohm/1000ft
  • Nom. Capacitance Conductor to Conductor: 18.5 pF/ft
  • Nominal Inductance: 0.18 µH/ft
  • Max. Recommended Current [A]: 3.75 Amps per Conductor at 25°C
  • UL Voltage Rating: 300 V RMS
  • UL Temp Rating: 75°C
  • Operating Temp Range: -20°C To +75°C
  • Bulk Cable Weight: 12 lbs/1000ft
  • Max. Pull Tension: 25.2 lbs
  • Min Bend Radius/Minor Axis: 1.375 in
  • NEC Articles: Article 800
  • NEC/(UL) Compliance: CMR
  • CEC/C(UL) Compliance: CMG
  • CPR Euroclass: Eca
  • Environmental Space: Indoor - Riser
  • C(UL) Flammability: FT4
  • UL Flammability: UL1666 Vertical Shaft
  • IEC Flammability: IEC 60332-1-2
  • UL Voltage Rating: 300 V RMS
  • Plenum (Y/N): No
  • Plenum Number: 6400UE


• Item Includes:

  • 5400UE 2 Conductor 20AWG Riser-CMR Security & Commercial Audio Cable - Gray - 1000 Foot


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825161981
