Belden 5502FE Security & Alarm Cable Riser-Shielded CMR 4-22 AWG - Gray - 1000 Foot/UnReel Pull-Box

ITEM #: BL-5502FEU1000GY MFG #: 5502FE 008U1000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$271.60

Our Price:

$226.10

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


5502FE 008U1000 - Overview

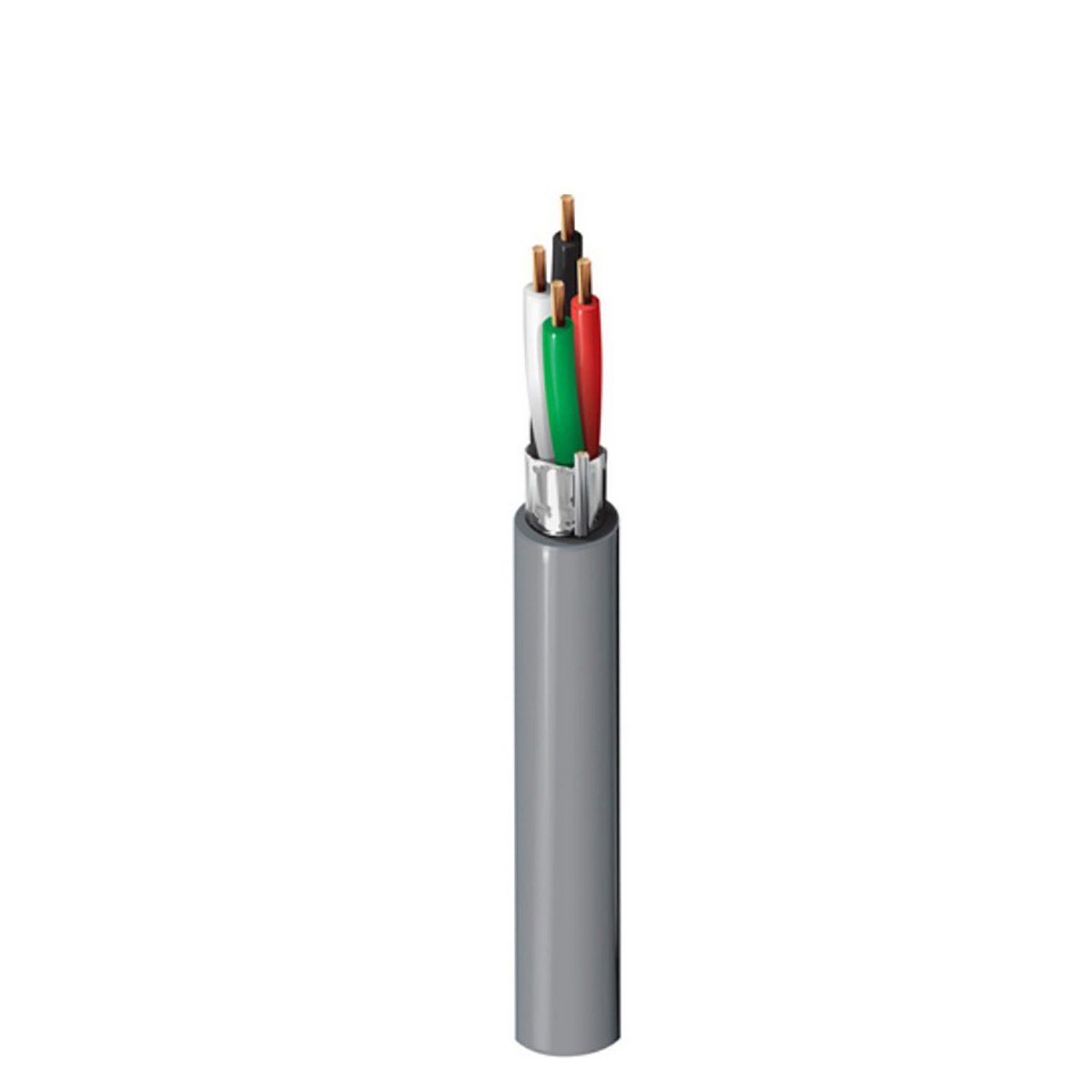

The Belden 5502FE is a 1000ft 4-conductor security & sound cable, Riser-CMR, 4-22 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord.

Applications include:
- Security System
- Intercom/PA
- Audio/Speakers
- Power-Limited Control
- Noisy Environments

  • Specifications:

    • Conductor Count: 4
    • AWG Size: 22
    • Material: Bare Copper
    • Insulation: PP - Polypropylene - 0.008"
    • Color Chart: Black/Red/White/Green
    • UL Temp Rating: 167°F(75°C)
    • Operating Temp Range: -4°F - 167°F(-20°C - 75°C)
    • Bulk Cable Weight: 17lbs/1000ft
    • Max Recommended Pulling Tension: 42lbs
    • Min Bend Radius/Minor Axis: 1.375"
    • Material: PVC - Polyvinyl Chloride
    • Overall Cable Diameter (Nominal): 0.145" (3.68mm)
    • Nom Thickness: 0.017" (0.43mm)
    • Nom. Diameter: 0.145" (3.68mm)
    • Ripcord: Yes
