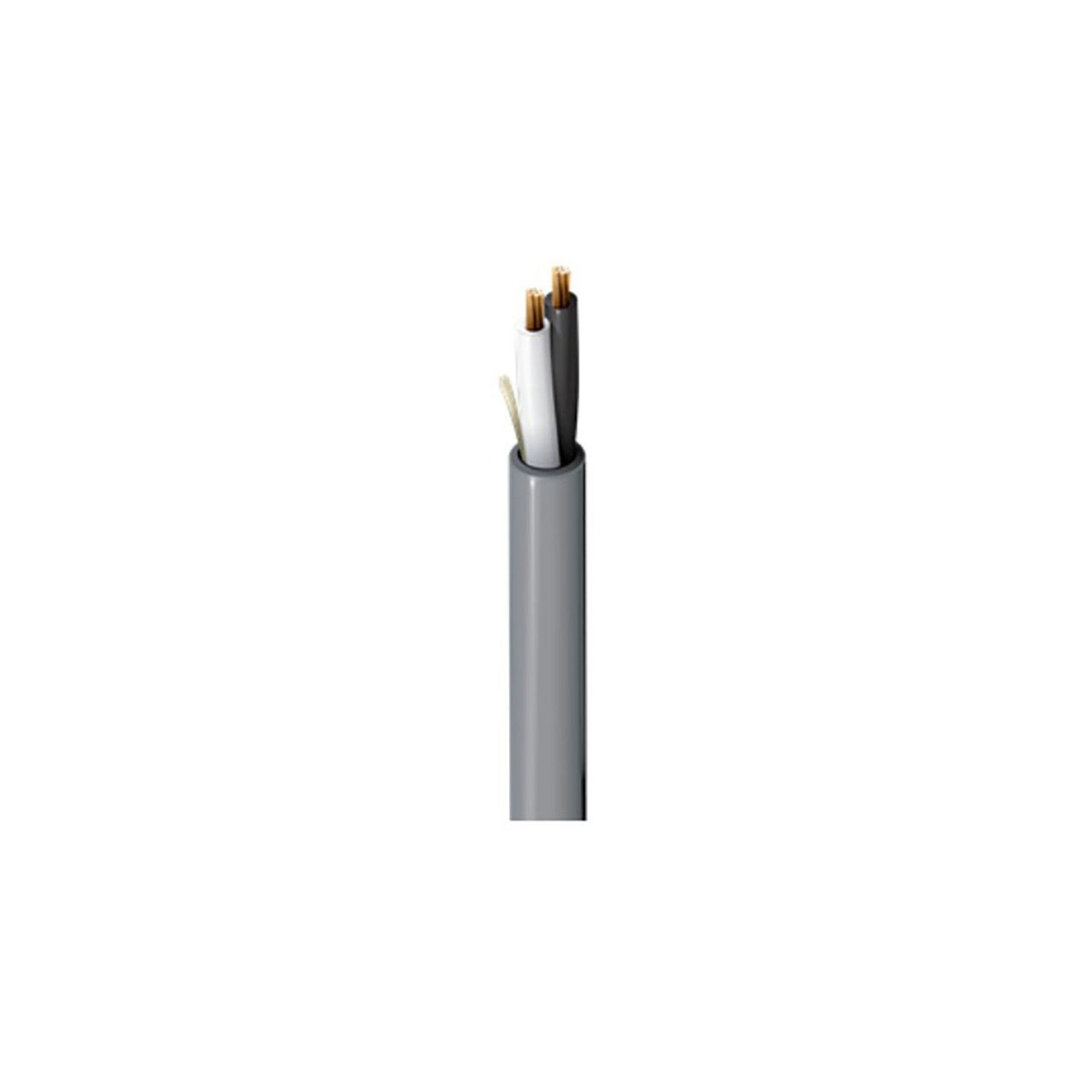

Belden 6100UE 14 AWG Non Paired Audio Cable - Gray - 1000 Foot on Reel

6100UE 0081000 - Overview

• Specifications:

  • AWG: 14
  • Stranding: 19x27
  • Material: BC- Bare Copper
  • No. of Conductors: 2

    Temperature Range
  • Installation Temp Range: 32°F - 167°F (0°C - 75°C)
  • UL Temp Rating: 167°F (75°C)
  • Operating Temp Range: 14°F - 167°F (-10°C - 75°C)

    Mechanical Characteristics
  • Bulk Cable Weight: 38lbs/1000ft
  • Max Recommended Pulling Tension: 95lbs
  • Min Bend Radius/Minor Axis: 2.5"

    Standards
  • NEC Articles: 725
  • NEC/(UL) Specification: CL2P
  • CPR Euroclass: Eca

    Flammability, LS0H, Toxicity Testing
  • UL Flammability: NFPA 262
  • ISO/IEC Flammability: IEC 60332-1-2
  • UL Voltage Rating: 150 V RMS
