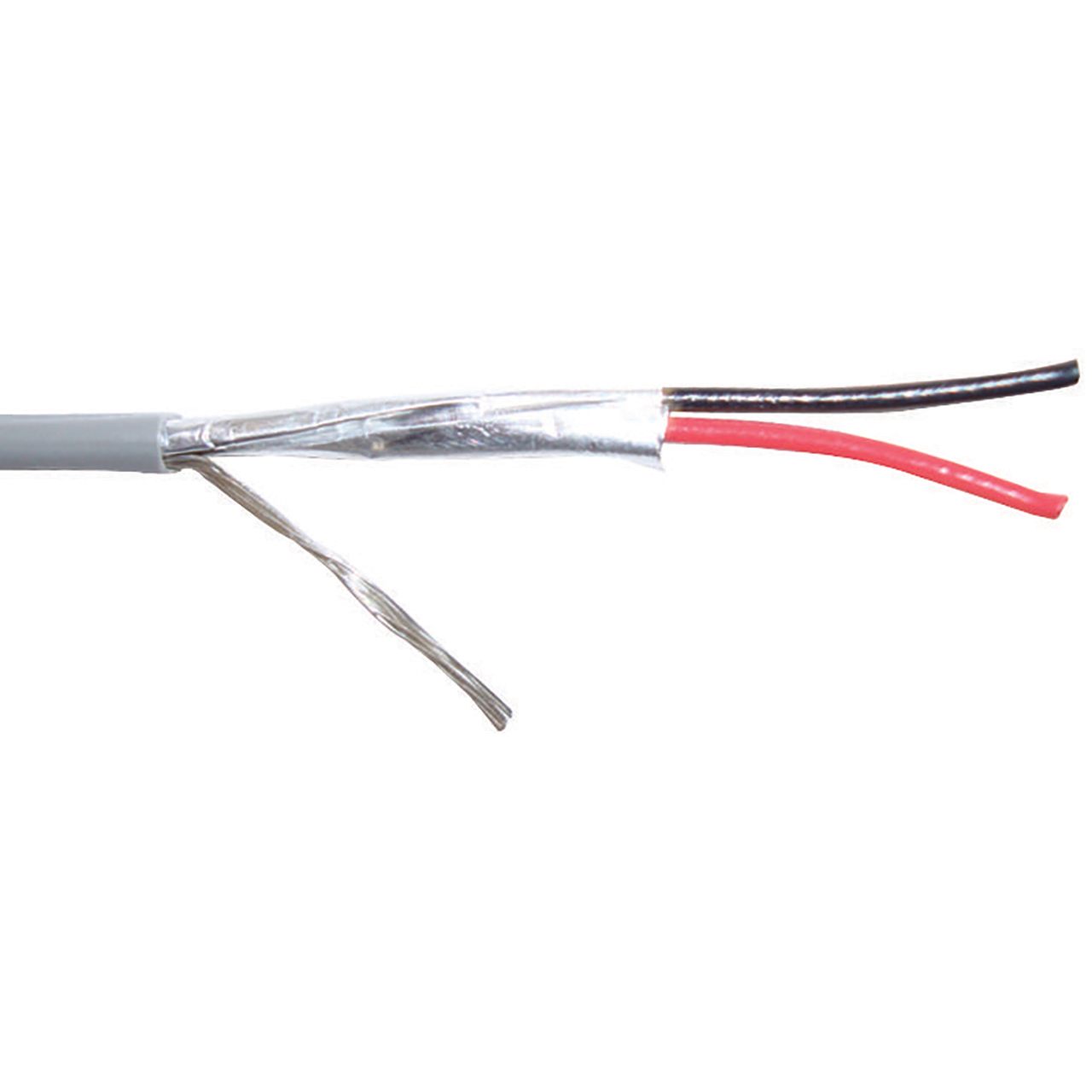

Belden 6200FE Security & Commercial Audio Cable - 2-16 AWG Conductors Shielded Plenum - 1000 Foot/Unboxed - Natural

6200FE 877U1000 - Overview

Commercial Audio Systems - 2 Conductors Plenum - 1000 ft/Unboxed

• Specifications:

  • Number of Conductors: 2
  • Total Number of Conductors: 2
  • AWG: 16
  • Stranding: 19
  • No. of Max Strands x Strand Size: 19 x 29AWG
  • Conductor Material: BC - Bare Copper
  • Insulation Material Trade Name: Flamarrest
  • Insulation Material: LS PVC - Low Smoke Polyvinylchloride
  • Outer Shield Material Trade Name: Beldfoil
  • Outer Shield Material: Aluminum Foil-Polyester Tape
  • Outer Jacket Material Trade Name: Flamarrest
  • Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
  • Plenum: Yes
  • Voltage Rating: 300V
  • Operating Temperature Range: 32°F - 167°F (0°C - 75°C)
