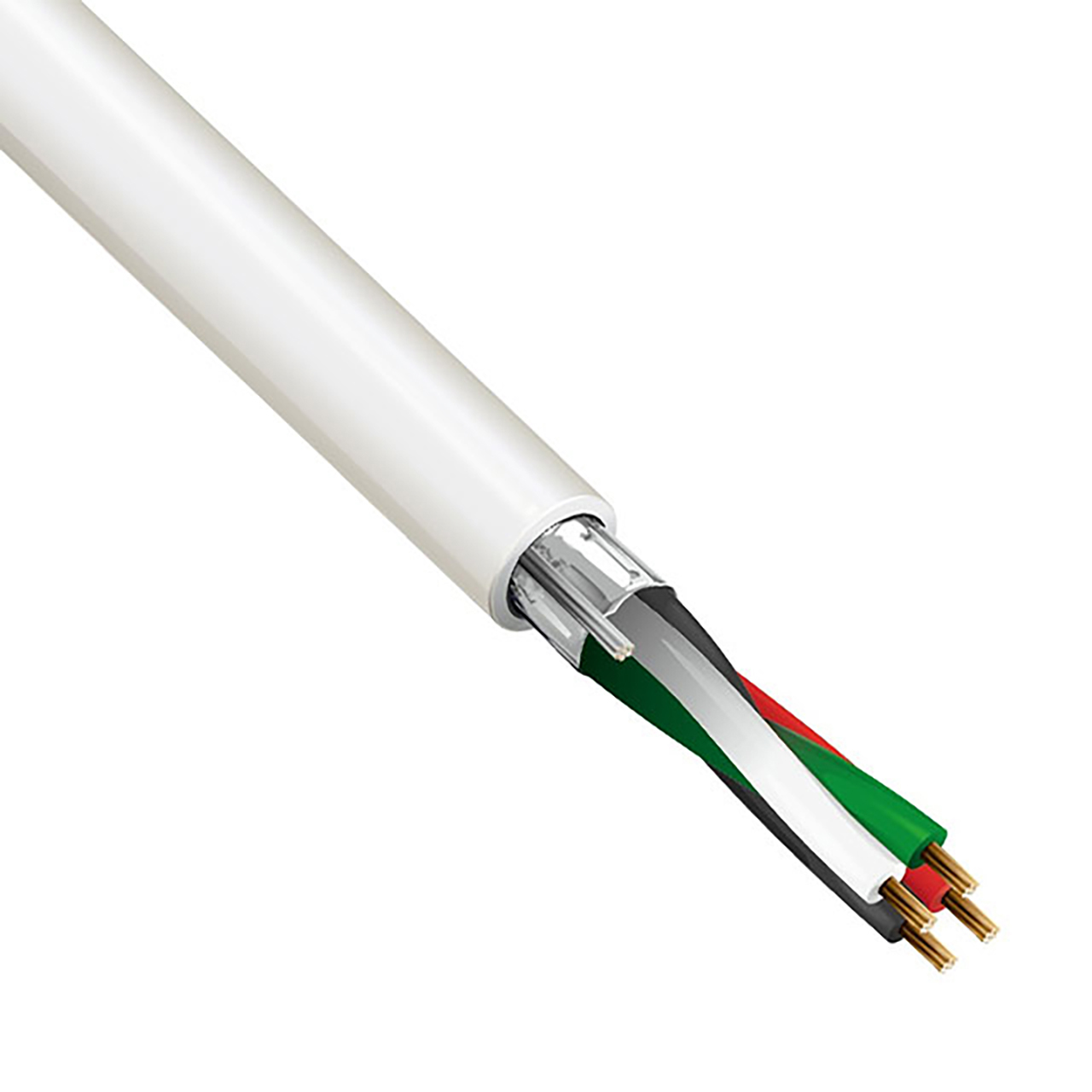

Belden 6302FE 877U500 Security & Sound Cable Plenum 18 AWG Stranded Copper Conductors w/ Flamarrest Jacket - Natural

6302FE 877U500 - Overview

• Features:

  • AWG: 18
  • Stranding: 7x26
  • Material: BC - Bare Copper
  • Conductor Count: 4
  • Material: LS PVC - Low Smoke Polyvinyl Chloride
  • Material Trade Name: Flamarrest®
  • Nominal Wall Thickness: 0.008"
  • UL Voltage Rating: 300V RMS
  • Installation Temp Range: 32°F - 167°F (0°C - 75°C)
  • Operating Temp Range: 14°F - 167°F (-10°C - 75°C)
  • Bulk Cable Weight: 33lbs/1000ft
  • Max. Pull Tension: 89.6lbs
  • Min Bend Radius/Minor Axis: 1.8"
  • NEC Articles: Article 800
  • NEC/(UL) Compliance: CMP
  • CEC/C(UL) Compliance: CMP
  • CPR Euroclass: Eca
  • UL Flammability: NFPA 262 Plenum Flame Test
  • CSA Flammability: FT6
  • IEC Flammability: IEC 60332-1-2
  • UL Voltage Rating: 300V RMS


• GTIN:

  0612825175292
