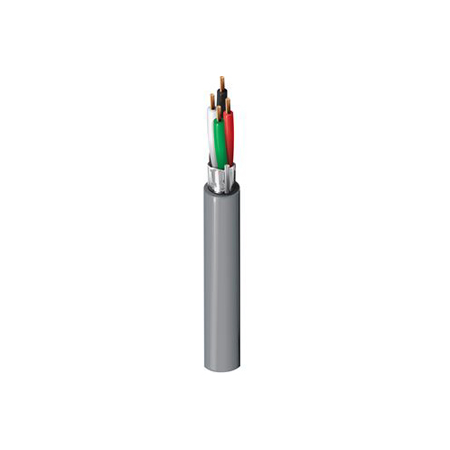

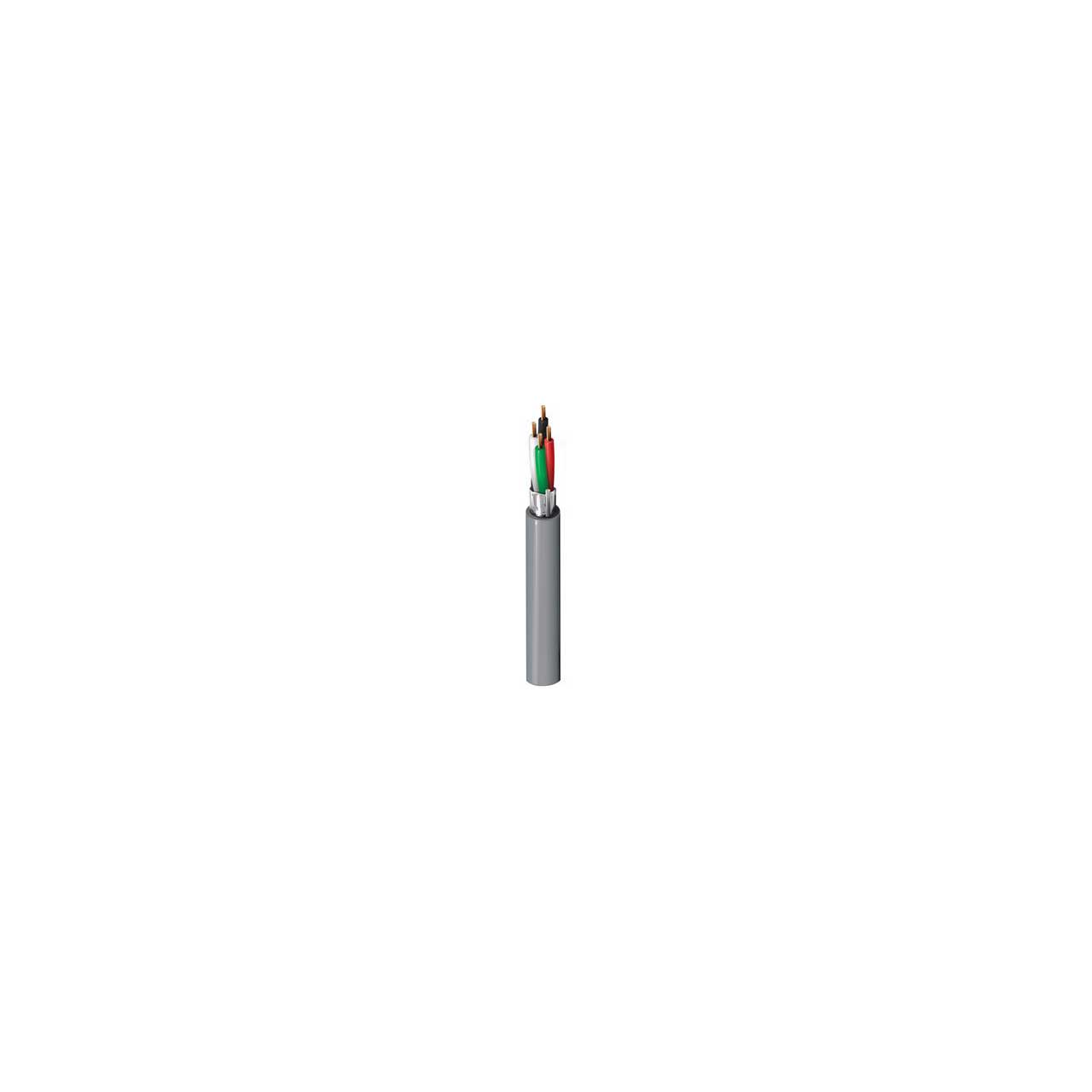

Belden 6502FE 4-22 AWG Security & Sound Cable - Natural - 1000 Foot/Unreeled

6502FE 877U1000 - Overview

• Features:

  • 4 Pair
  • 22 AWG
  • Comes with Ripcord
  • Flamarrest® Insulation
  • Beldfoil® Shield
  • Natural Jacket Color


• Specifications:

  • Physical Characteristics
  • # of Pairs: 4
  • Conductor AWG: 22
  • Conductor Stranding: 7 x 30
  • Conductor Material: BC - Bare Copper
  • Insulation Material: Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride
  • Insulation Wall Thickness: 0.009 in (0.22mm)
  • Overall Nominal Diameter: 0.147 in (3.73 mm)

    Outer Shield
  • Type: Tape
  • Outer Shield Material: Aluminum Foil - Polyester Tape
  • Coverage: 100%
  • Outer Shield Drain Wire AWG
  • AWG: 24
  • Stranding: 7 x 32
  • Drain Wire Conductor Material: TC - Tinned Copper

    Outer Jacket
  • Material: Polyvinyl Chloride
  • Nominal Wall Thickness: 0.015 in (0.381 mm)
  • Nominal Diameter: 0.147 in (3.73 mm)
  • Outer Jacket Ripcord: Yes

    Electrical Characteristics
  • Conductor Nominal Conductor DCR: 16.2 Ohm/1000ft
  • Conductor Nominal Capicitance Conductor to Conductor: 33.0 pF/ft (108 pF/m)
  • Conductor Nominal Capicitance Conductor to Other (Conds + Shield): 59 pF/ft (190 pF/m)
  • Conductor Max Current: 2.2 Amps per Conductor at 77°F (25°C)
  • UL Voltage Rating: 300V (CMP)

    Mechanical Characteristics
  • UL Temperature: 167°F (75°C)
  • Operating Temperature: 32° to 167°F (0° to 75°C)
  • Bend Radius: 1.47 in (37.3 mm)
  • Installation Minimum: 1.47 in (37.7 mm)
  • Maximum Pull Tension: 42 lbs (19 kg)
  • Bulk Cable Weight: 17 lbs/ 1000 ft

    Standards and Compliance
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability/Reaction to Fire: NFPA 262, UL 910 (Plenum), FT67
  • CPR Compliance: CPR Europclass: Eca
  • NEC/UL Compliance: CMPCEC/C (UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5502FE


• Item Includes:

  • 1x Belden 6502FE 4-22 AWG Security & Sound Cable - Natural - 1000 Foot/Unreeled


• GTIN:

  0612825177593
