Belden 6504UE Security & Sound Cable - Plenum-CMP 6-22AWG Stranded Bare Copper Pairs - Natural - 1000 Foot

ITEM #: BL-6504UE-U1000N MFG #: 6504UE 877U1000

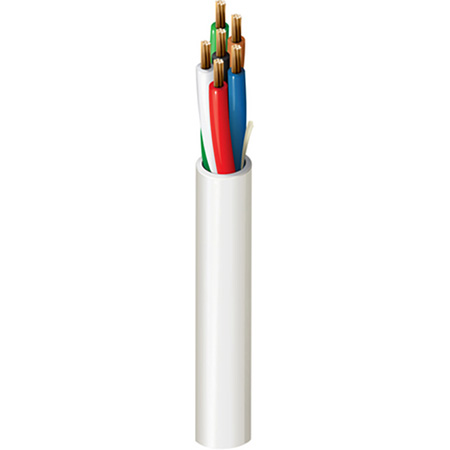

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$302.70

Our Price:

$249.68

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

6504UE 877U1000 - Overview

Belden 6504UE is a 6-22AWG Security & Sound Cable with Plenum-CMP, stranded bare copper conductors with Flamarrest insulation, and Flamarrest jacket with ripcord. Suitable for Security System, Intercom/PA, Audio/Speaker, and Power-Limited Controls applications.

  • Specifications:

    • No. of Elements: 6
    • AWG: 22
    • Stranding: 7x30
    • Material: Bare Copper
    • Nom. Conductor DCR: 16 Ohm/1000ft (52 Ohm/km)
    • Nom. Capacitance Cond-to-Cond: 27 pF/ft (89 pF/m)
    • Max. Current: 2 Amps per conductor @ 25°C
    • UL Voltage Rating: 300 V (CMP)
    • UL Rating Temp: 75°C
    • Operating Temp: 0°C to +75°C
    • Max. Pull Tension: 54 lbs (24 kg)
    • Bulk Cable Weight: 21 lbs/1000ft (31 kg/km)
    • Environmental Suitability: Indoor - Plenum, Indoor
    • Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6
    • NEC / UL Compliance: Article 800, CMP
    • CEC / C(UL) Compliance: CMP
    • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)


  • Item Includes:

    • 1x Belden 6504UE Security & Sound Cable - Plenum-CMP 6-22AWG Stranded Bare Copper Pairs - Natural - 1000 Foot
