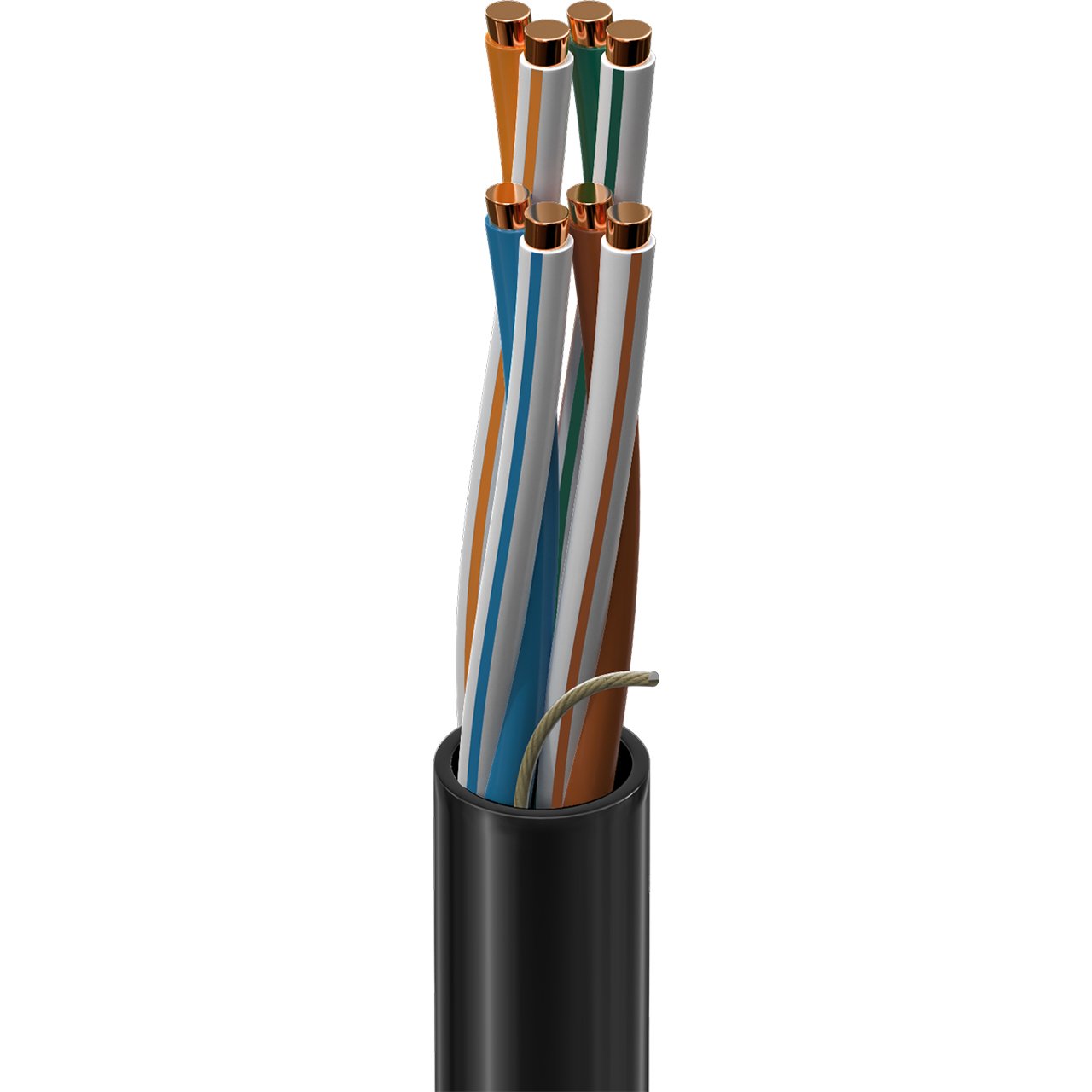

Belden 7918A DataTuff 4-Pair 24AWG CAT5e Industrial Ethernet Cable - Black - 1000-Foot

7918A 0101000 - Overview

Maximize your uptime and performance with DataTuff Category 5e Industrial Ethernet cables from Belden

• Features:

  • Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
  • Superior Electrical Performance: Exceeds Category 5e performance
  • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2Gb/s for a system with usable bandwidth of 160MHz
  • Stable Electricals: 1200 Cable's design features matched conductors on all four pairs providing for extremely stable electrical performance
  • No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design


• Specifications:

  Conductor
  • Size: 24 AWG
  • Stranding: Solid
  • Material: BC - Bare Copper
  • No. of Pairs: 4

    Insulation
  • Material/Color Code: PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

    Outer Jacket
  • Material: PVC - Polyvinyl Chloride
  • Nom. Diameter: 0.220" (5.59mm)
  • Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.220" (5.59mm)

    Electricals
  • Max. Conductor DCR: 93.8Ω/km (28.6Ω/1000ft)
  • Max. Capacitance Unbalance: 330pF/ft

    Delay
  • Max. Delay: 510 ns/100m
  • Max. Delay Skew: 45 ns/100m
  • Nom. Velocity of Prop.: 68%

    Voltage
  • UL Voltage Rating: 300V (CMR), 300V (CMX-Outdoor)

    Temperature
  • UL Temperature: 140°F (60°C)
  • Operating: -40°F - 167°F (-40°C - 75°C)
  • Installation: -13°F - 167°F (-25°C - 75°C)
  • Storage: -40°F - 167°F (-40°C - 75°C)

    Bend Radius
  • Stationary Min.: 0.5" (13mm)
  • Max. Pull Tension: 35lbs (16kg)
  • Bulk Cable Weight: 23lbs/1000ft (34kg/km)

    Standards and Compliance
  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
  • Flammability/Reaction to Fire: UL1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC/UL Compliance: Article 800, CMR, CMX-Outdoor, CMG
  • CEC/C(UL) Compliance: CMX-Outdoor;CMG
  • Data Category: Category 5e
  • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
  • ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): P-07-KA060003-MSHA


• Item Includes:

  • 1x Belden 7918A DataTuff 4-Pair 24AWG CAT5e Industrial Ethernet Cable - Black - 1000-Foot
