Belden 8268 50 Ohm Coax Cable - 1000 Foot Roll

ITEM #: BL-8268-1000 MFG #: 8268 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

List Price:

$19,872.20

Our Price:

$16,135.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

8268 0101000 - Overview

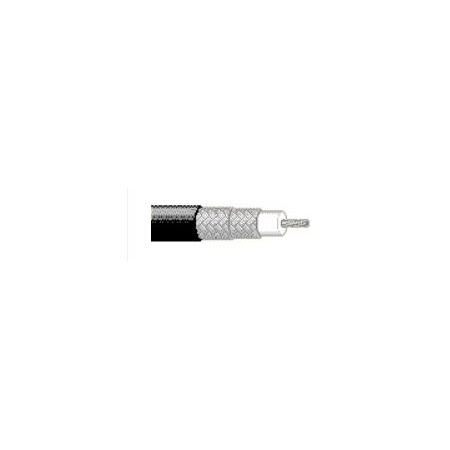

13 AWG stranded (7x21) .089" silver-plated copper conductor, polyethylene insulation, double silver-plated copper braid shield (95% coverage), non-contaminating PVC jacket.

  • Specifications:

    • Operating Temperature Range: -40°C To +80°C
    • UL Temperature Rating: 60°C
    • Bulk Cable Weight: 131 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 225 lbs.
    • Min. Bend Radius/Minor Axis: 6 in.
    • NEC/(UL) Specification: CMX
    • CEC/C(UL) Specification: CMX
    • AWM Specification: UL Style 1354
    • EU Directive 2011/65/EU (ROHS II): Yes
    • EU CE Mark: No
    • EU Directive 2000/53/EC (ELV): Yes
    • EU Directive 2002/95/EC (RoHS): Yes
    • EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
    • EU Directive 2002/96/EC (WEEE): Yes
    • EU Directive 2003/11/EC (BFR): Yes
    • CA Prop 65 (CJ for Wire & Cable): Yes
    • MII Order #39 (China RoHS): Yes
    • Military Specification: MIL-C-17, M17/075
    • RG Type: 214/U
    • Flame Test
    • UL Flame Test: VW-1
    • Plenum/Non-Plenum
    • Plenum (Y/N): No


  • GTIN:

    0612825197539
