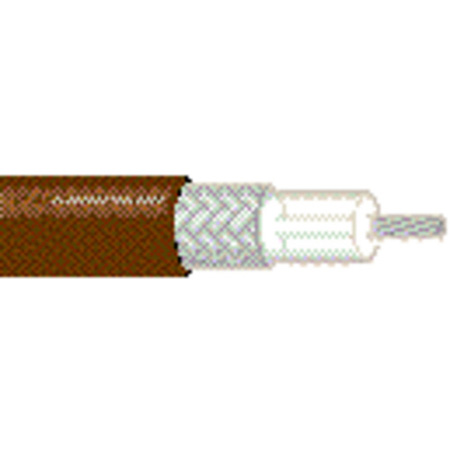

Belden 83264 75 Ohm Coax Cable with Solid RG-179U Type 30 AWG - Brown - Per Foot

ITEM #: BL-83264BN-FT MFG #: 83264 PER FOOT

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-83264BN-FT

83264 PER FOOT - Overview

Belden 83264 is a Mil-Spec coax cable with 75 Ohm, RG-179, 30 AWG (7x38) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, FEP Jacket, Commercial, non-QPL. Suitable for Aerospace and analog video aplications.

  • Specifications:

    • AWG: 30
    • Stranding: 7x38
    • Nom Diameter: 0.012in
    • Material: Silvered Copper Covered Steel
    • RG Type: 179
    • Nom. Conductor DCR: 232 Ohm/1000ft
    • Nom. Outer Shield DCR: 8.5 Ohm/1000ft
    • Nom. Capacitance Cond-to-Shield: 19.5 pF/ft 75 Ohm
    • Nom. Impedence Nom. Velocity: 70%
    • Non-UL Voltage Rating: 900 V (Mil-Spec)
    • Operating Temp: -70°C to +200°C
    • Bulk Cable Weight: 10 lbs/1000ft
    • Max. Pull Tension: 17 lbs
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
    • Sustainability: CA Prop 65
    • Military Compliance: Commercial, non-QPL product (M17/94-RG179)


  • Item Includes:

    • 1x Belden 83264 75 Ohm Coax Cable with Solid RG-179U Type 30 AWG - Brown - Per Foot
