Belden 8719 Audio Control and Instrumentation Beldfoil Cable - 2000 Foot

8719 0602000 - Overview

• Specifications:

  • Packaging: Spool
  • Part Status: Active
  • Cable Type: Multi-Conductor
  • Number of Conductors: 2 (1 Pair Twisted)
  • Wire Gauge: 16 AWG
  • Conductor Strand: 19/29
  • Conductor Material: Copper, Tinned
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Jacket (Insulation) Diameter: 0.313" (7.95mm)

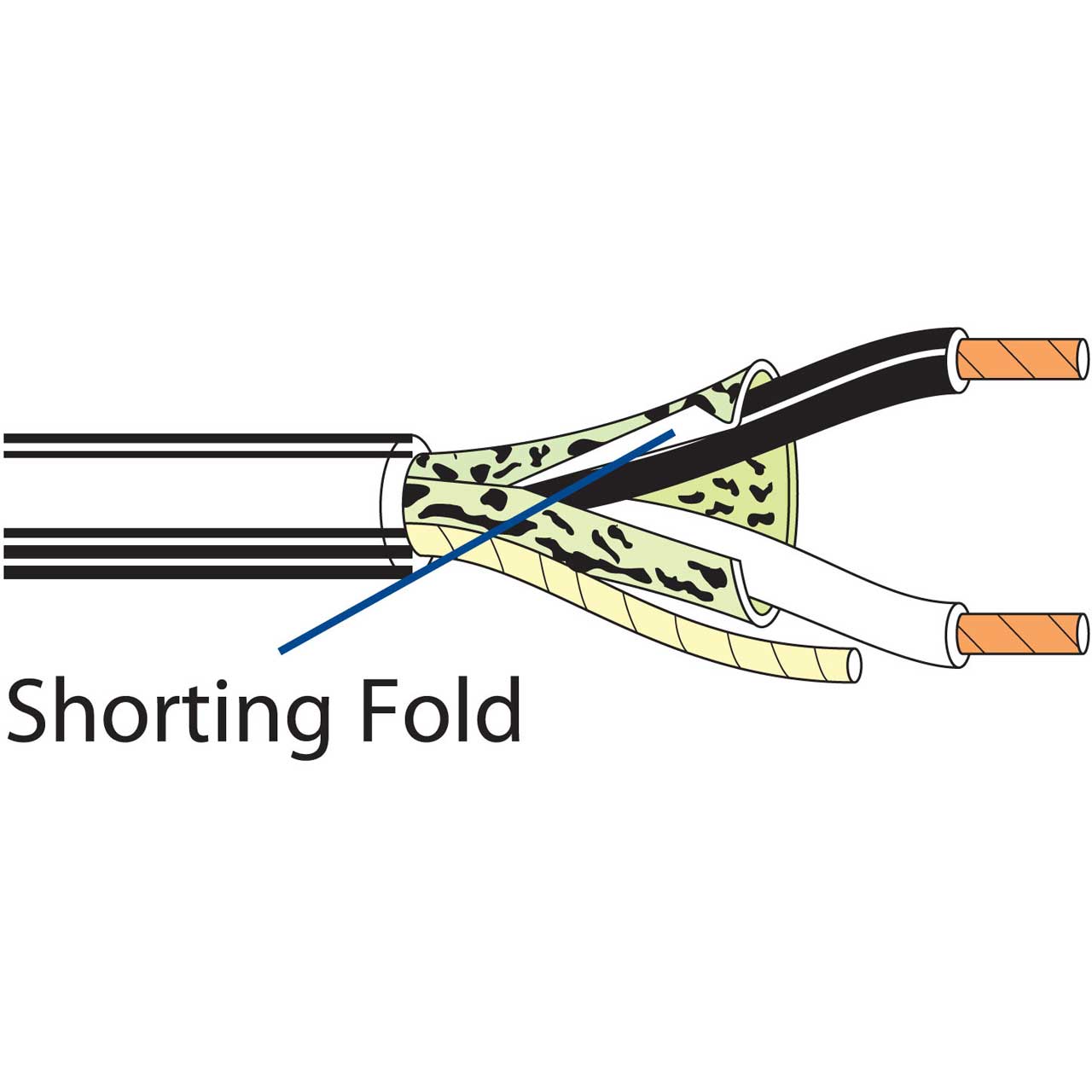

  • Shield Type: Foil
  • Length: 1000.0' (304.8m)
  • Jacket Color: Chrome
  • Ratings: UL Style 20253
  • Features: Drain Wire
  • Operating Temperature: -4°C ~ 176°C
  • Usage: Audio, Control, Instrumentation
  • Jacket (Insulation) Thickness: 0.0320" (0.813mm)
  • Conductor Insulation: Polyethylene (PE)
  • Shield Material: Aluminum
  • Shield Coverage: 100%
