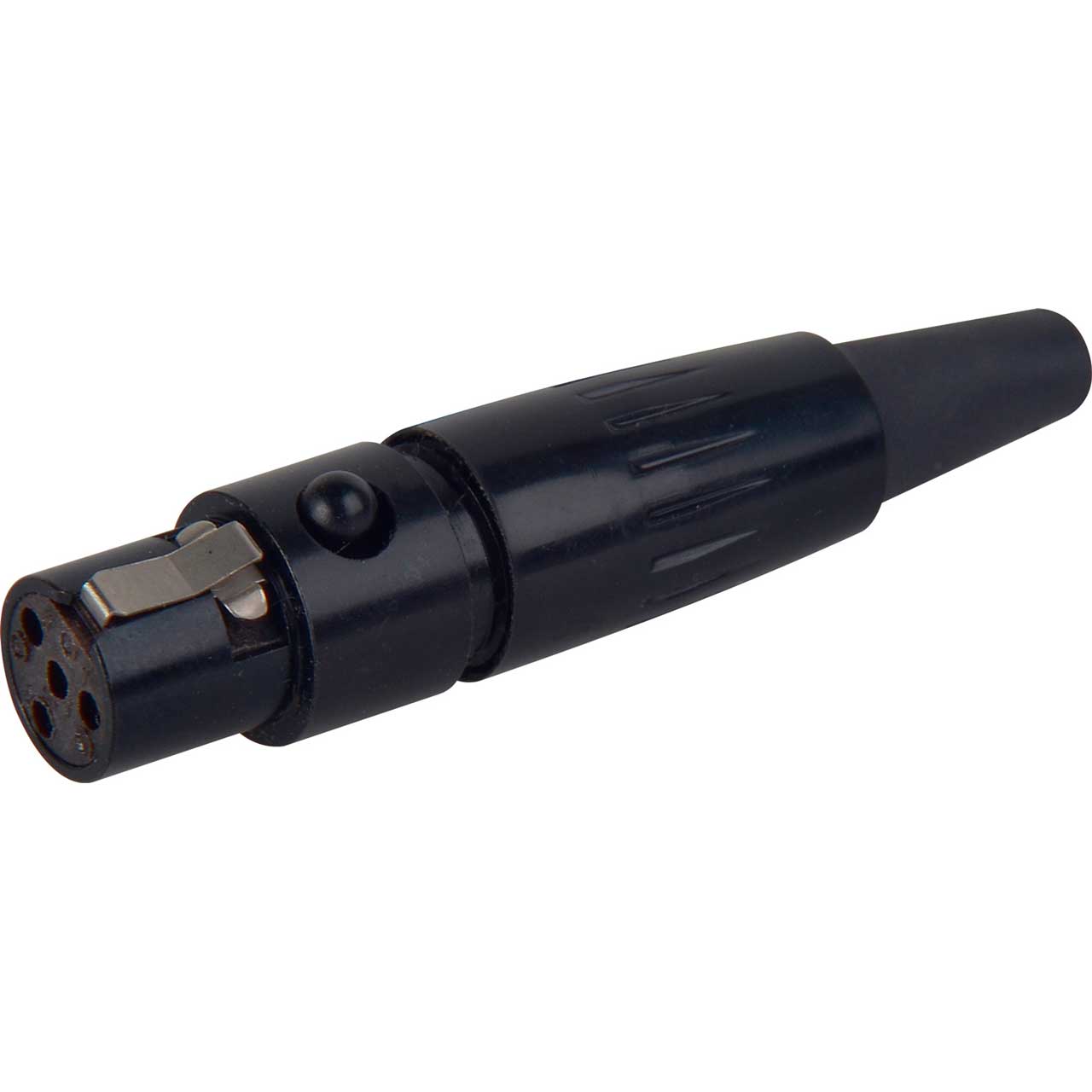

Switchcraft TA4FBX Minature 4 Pin XLR Female Cable End Connector

TA4FBX - Overview

TA4FBX - Overview

TA4FBX - Details

• Specifications:

  • Electrical
  • Contact Resistance: .010 ohms maximum after life (and after salt spray)
  • Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum
  • Insulation Resistance: 510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test)
  • Dielectric Strength: 1,000 V (rms)

    Mechanical
  • Life: 5,000 operations minimum
  • Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal
  • Solderability Standard: Meets EIA RS-186-9E
  • Mechanical Shock: Meets MIL-STD-202, method 213B
  • Vibration: Meets MIL-STD-202, method 201A
  • Wire Size: #22 wire gauge solid; #24 wire gauge stranded

    Environmental
  • Thermal Range: -55°C to + 85°C
  • Humidity: Meets MIL-STD-202, method 106D
  • Thermal Shock: Meets MIL-STD-202, method 107D
  • Salt Spray: Meets MlL-STD-202, method 101

    MATERIAL
  • Housing, Plugs and Male Receptacles: Copper alloy, nickel-plated. Female Receptacle-Die-cast zinc, nickel-plated
  • Black Tini Q-Gr Housing: Copper alloy, black chrome-plated
  • Pin and Socket Contacts: Copper alloy, silver-plated
  • Flex Relief: Molded black thermoplastic elastomer
  • Latch Button: Molded black thermoplastic
  • Release Lever and Mounting Washer: Steel, nickel-plated
  • Standoff/Ground Terminal and Cable Clamp: Steel, electrotinned
  • Inserts and Insulating Spacer: Molded, high strength thermoplastic
  • Latch (Female): Copper alloy, nickel-plated
  • Mounting Nut: Copper alloy, nickel-plated

    Electrical
  • Contact Resistance: .010 ohm maximum after life
  • Current Rating (Carry only): 1.5A, 125 VAC, based on 30° maximum
  • Insulation Resistance: 510,000 M O minimum @ 500 VDC (initial)
  • Dielectric Strength: 250 V rms

    Mechanical
  • Life: 2,000 operations
  • Insertion/Withdrawal Forces (after life): -13 pound insertion; -13 pound maximum withdrawal
  • Solderability Standard: Meets EIA RS-186-9E
  • Wire Size: 28 wire gauge stranded
