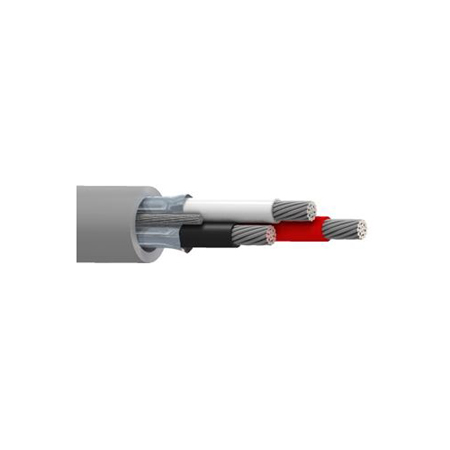

Belden 8771MN SpaceMaker 3-Conductor 22AWG Tinned Copper Control and Instrument Cable - Gray - 100 Foot

8771MN-100-GY - Overview

• Specifications:

  • Temperature
    UL Temperature: 80°C (AWM 2937)
    Operating Temperature: -4° to 176°F (-20° to +80°C)
  • Bend Radius
    Stationary Min: 0.576" (14.6mm)
    Installation Min: 0.576"
    Flexing Min: 1.440" (36.58mm)
  • Max. Pull Tension: 33Lbs
  • Bulk Cable Weight: 14Lbs/1000ft
  • Standards and Compliance
    Environmental Suitability: Indoor
    Flammability / Reaction to Fire: FT2
    NEC / UL Compliance: UL 758, UL 1581
    AWM Compliance: UL AWM Style 2937
    European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
    Other Standard Compliance(s): NFPA 79
  • Color: Gray
  • Length: 100 Foot
