Belden 8810WB 2 Conductor 10 AWG Stranded Bare Copper Class 1 Speaker Cable - Waterblocked - Black - 1000 Foot

ITEM #: BL-8810WB-1000 MFG #: 8810WB 0101000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3,709.30

Our Price:

$3,018.45

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    8810WB 0101000 - Overview

    Belden offers quality Speaker Cables that are suitable for commercial and professional installations so you can reliably connect speakers to receivers or power amplifiers. Available options include plenum, indoor/outdoor, halogen-free, direct burial and Class 1 configurations. Belden's Speaker Cable line includes direct-burial cable with ultra-high purity (99.995%), sometimes described as "oxygen-free" copper (OFC).

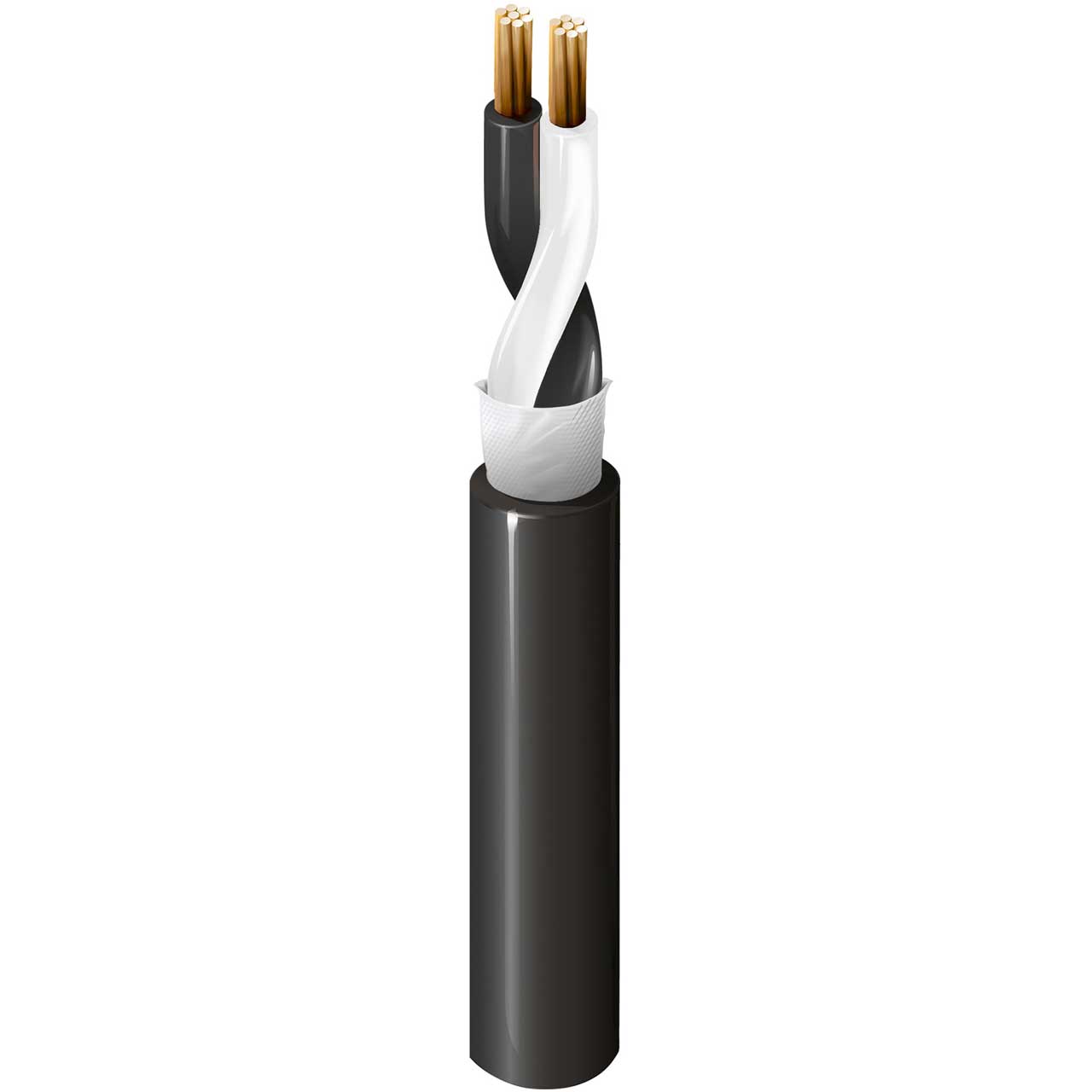

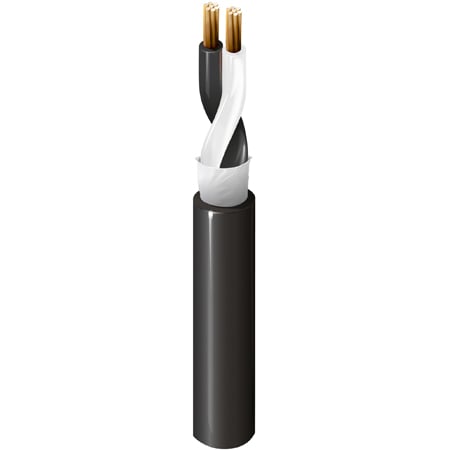

    Belden 8810WB is a 2 Conductor 10 AWG stranded (19x23) bare copper conductors, PVC/Nylon insulation, PVC jacket.

    Suitable Applications: Pro audio installation of Auditoriums , Stadiums , Race Tracks , Houses Of Worship, Casino's, Elevators, Lobbys, Shopping Malls.

    • Specifications:

      • No. of Elements: 1
      • Size: 10AWG
      • Stranding: 19x23
      • Material: Bare Copper
      • Nom. Conductor DCR: 1 Ohm/1000ft
      • Max. Current: 42 Amps per Conductor at 25°C
      • UL Voltage Rating: 600 V (TC), 150 V (NPLF)
      • UL Temperature: UL Type TC: 90°C Dry, 75°C Wet; NPLF: 90°C
      • Operating Temperature: -30°C To +75°C Wet; -30°C To +90°C Dry
      • Max. Pull Tension: 234 lbs (106 kg)
      • Bulk Cable Weight: 114 lbs/1000ft
      • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
      • Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
      • NEC / UL Compliance: Article 336, Article 760, NPLF, TC, THHN/THWN Singles

    • GTIN:

      0612825216636
