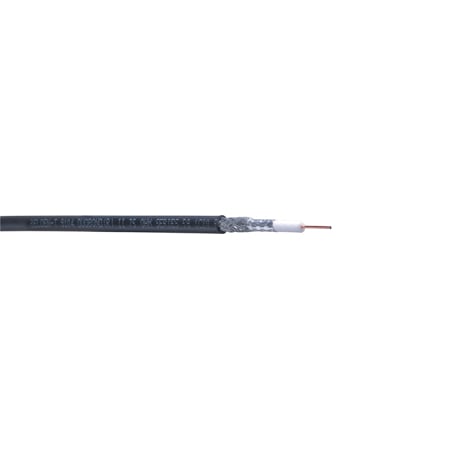

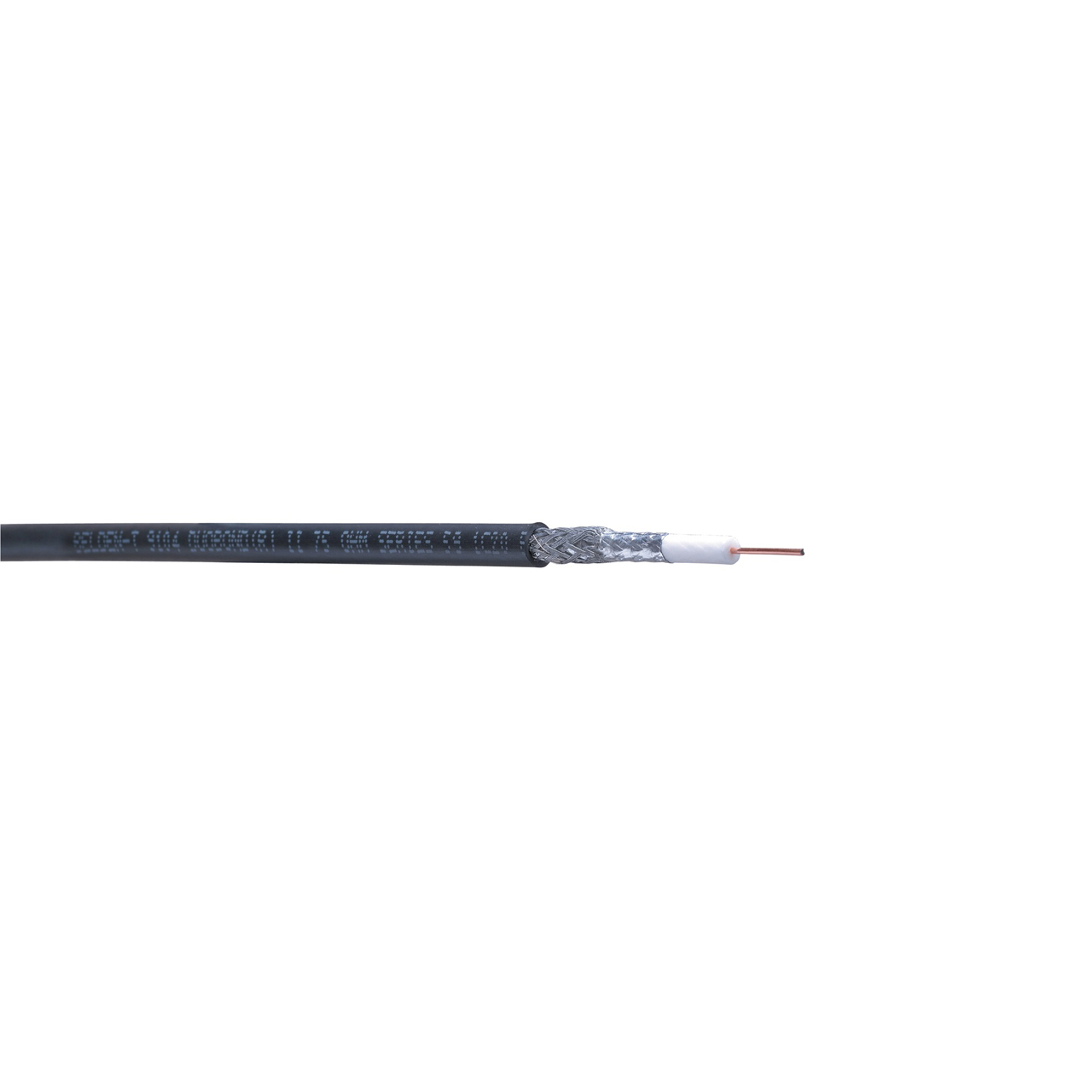

Belden 9104 Broadband Coax - Series 59 -20 AWG Solid BCCS Cable - Foil + 65% AL Braid - PVC Jkt - CM - Black - 1000-Foot

9104 0101000 - Overview

• Specifications:

  Conductor
  • No. of Elements: 1
  • Size: 20 AWG
  • Stranding: Solid
  • Nom. Diameter: 0.032"
  • Material: BCCS - Bare Copper Covered Steel

    Insulation
  • Material: PE - Polyethylene (Foam)
  • Nom. Insulation Diameter: 0.145" (3.68mm)
  • Color Code: White
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Nom. Diameter: 0.237" (6.02mm)
  • Overall Cable Diameter (Nominal): 0.237" (6.02mm)
  • Return Loss - Frequency: 5MHz - 1000MHz
  • Min. Structural Return Loss: 20dB

    UL Voltage Rating: 300 V RMS.

    Attenuation
  • Frequency - Max. Attenuation
  • 5MHz - 0.86dB/100ft
  • 55MHz - 2.05dB/100ft
  • 211MHz - 3.80dB/100ft
  • 270MHz - 4.22dB/100ft
  • 300MHz - 4.45dB/100ft
  • 350MHz - 4.80dB/100ft
  • 400MHz - 5.10dB/100ft
  • 450MHz - 5.40dB/100ft
  • 550MHz - 5.95dB/100ft
  • 750 MHz - 6.97 dB/100ft
  • 870 MHz - 7.57 dB/100ft
  • 1000 MHz - 8.12 dB/100ft

    Operating Temperature: -40°C To +80°C

    Bend Radius
  • Stationary Min: 2.25 in (57.2 mm).
  • Installation Min: 2.25 in (57.2 mm)
  • Max. Pull Tension:104 lbs (47.2 kg)
  • Bulk Cable Weight: 23 lbs/1000ft.

    Standards and Compliance:
  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor.
  • Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2.
  • CPR Compliance: CPR Euroclass: Eca.
  • NEC / UL Compliance: Article 800, CATV, CM.
  • CEC / C(UL) Compliance: CM.
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
  • UK Regulation Compliance: UKCA Mark.
  • APAC Compliance: China RoHS II (GB/T 26572-2011).
