Belden 9451P 1 Pair Flamarrest Plenum 22AWG Audio Cable - Yellow - Per Ft

Name: Belden 9451P 1 Pair Flamarrest Plenum 22AWG Audio Cable - Yellow - Per Ft
Brand: Belden
SKU: BL-9451P-FT-YW

ITEM #: BL-9451P-FT-YW MFG #: 9451P 004U1000 YELLOW

Belden

We are an authorized dealer for this series; however, final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

9451P 004U1000 YELLOW - Overview

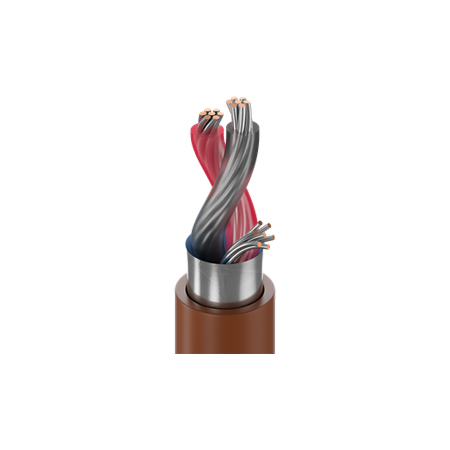

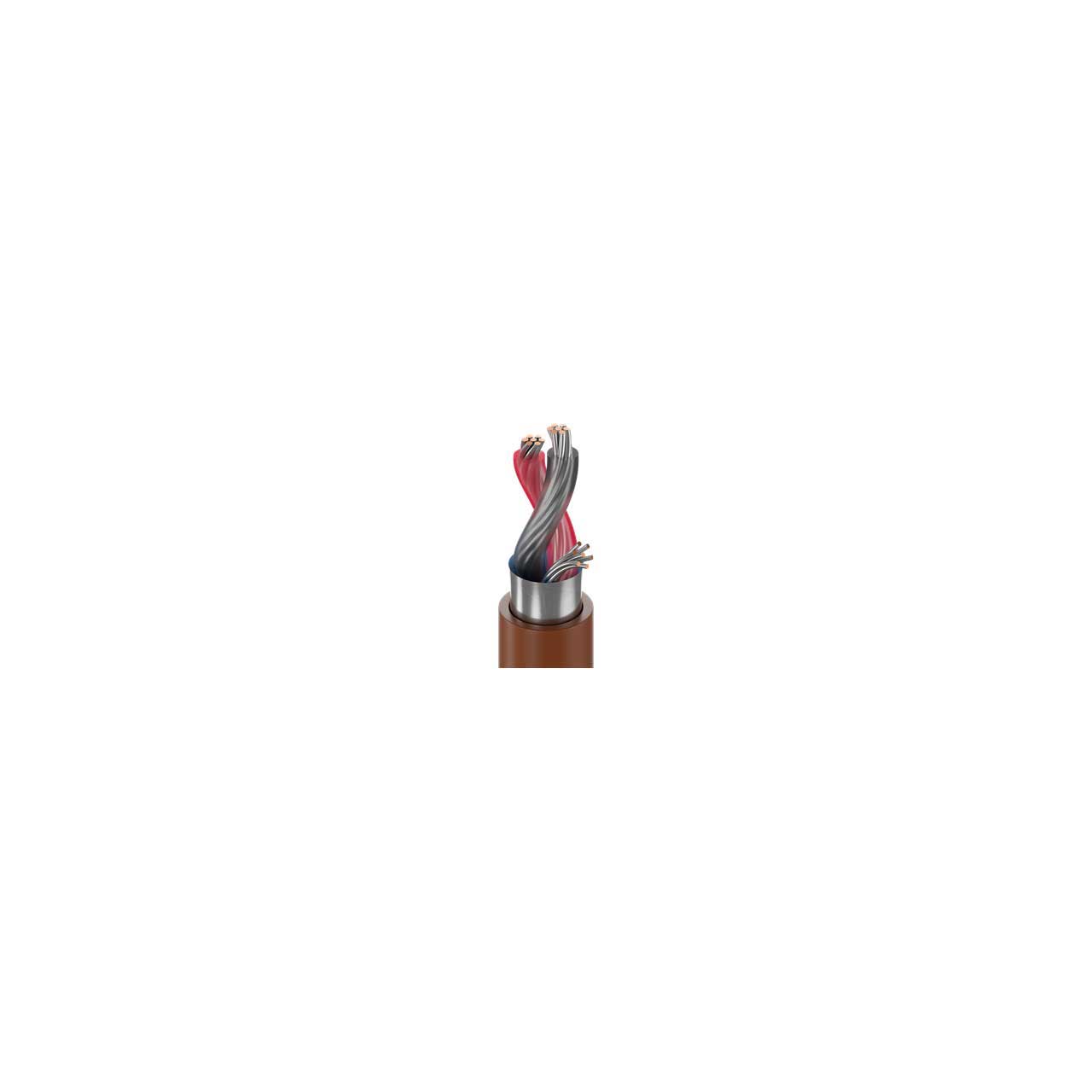

Belden 9451P is a Plenum, 300V, 1-Pair, Line Level 22 AWG (7 x 30) Stranded Audio Cable. It features tinned copper conductors, FEP insulation with an Overall Beldfoil® Shield in a Flamarrest® CMP rated jacket.

Belden's Analog Audio Cables allow for easier stripping and quicker installation, saving time and money. These cables are designed to ensure that audio signals deliver efficiently with Belden's quality standards in mind.

Applications
Mic or Line level audio
Low voltage analog signals and control
Electronic audio
Low voltage instrumentation

Specifications:
- Elements: 1
- AWG: 22
- Stranding: 7x30
- Material: Tinned Copper
- Nom. Conductor DCR: 14.1 Ohm/1000ft
- Nom. Capacitance Cond-to-Cond: 35 pF/ft
- Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft
- Nom. Velocity of Prop.: 69%
- Max. Current: 2.9 Amps per conductor @ 25°C
- UL Voltage Rating: 300 V (CMP)
- Max. Pull Tension: 27 lbs
- Bulk Cable Weight: 14 lbs/1000ft
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 9451
