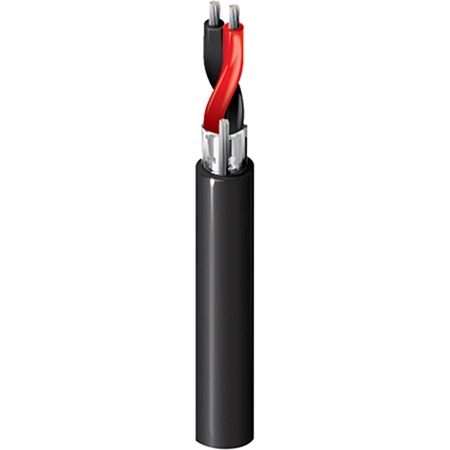

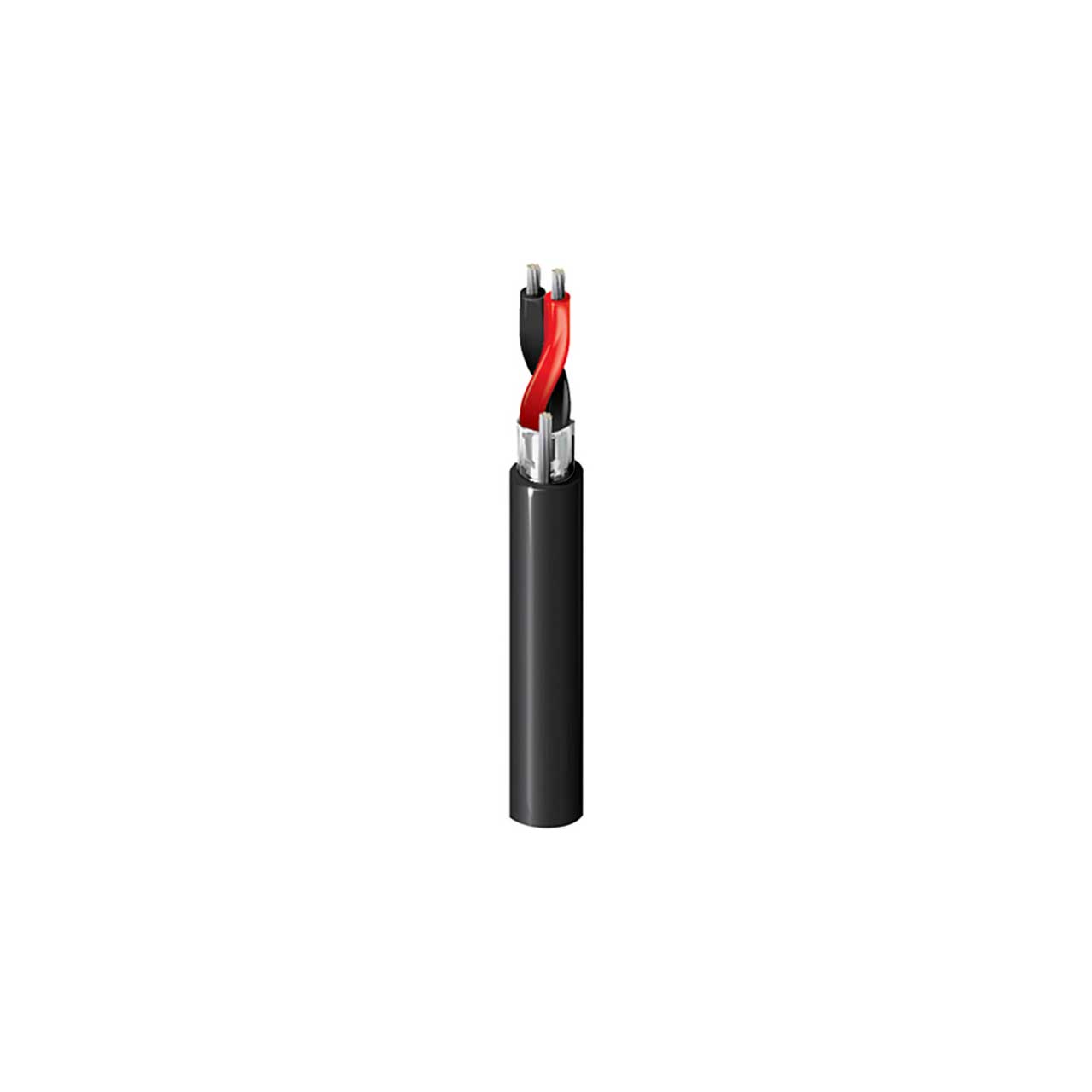

Belden 9451P CMP/Plenum Single Pair Line Level Audio Cable Str TC Shielded 22AWG - Black - 1000 Ft/UnReel Box

9451P 010U1000 - Overview

• Features:

  • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
  • Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
  • Improved Performance: Shorting fold technique to maintain metal-to-metal contact


• Specifications:

  • Environmental Space: Indoor - Plenum
  • Conductor Count: 2
  • Total Number of Pairs: 2
  • Conductor Size: 22 AWG
  • Stranding: 7x30
  • UL Temp Rating: 60°C
  • Operating Temp Range: -20°C To +75°C
  • Bulk Cable Weight: 14 lbs/1000ft
  • Max Recommended Pulling Tension: 27 lbs
  • Min Bend Radius/Minor Axis: 1.25 in
  • NEC/(UL) Specification: CMP
  • CEC/C(UL) Specification: CMP
  • CPR Euroclass: Eca


• Item Includes:

  • 9451P Audio Cable 22AWG - Gray - 1000 Foot UnReel Box


• Warranty:

  • Limited 10 Year Warranty
