Belden 9539 Non-Paired - Computer Cable for EIA RS-232 Applications - 500 Foot

Questions? Ask a Markertek Expert:
800-522-2025 Email

Belden 9539 Non-Paired - Computer Cable for EIA RS-232 Applications - 500 Foot

Manufacturer: Belden

Item #: BL-9539-500   •   MFG #: 9539 060500



List Price:$678.00
Our Price:$613.33

free ship


Lengths:



Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

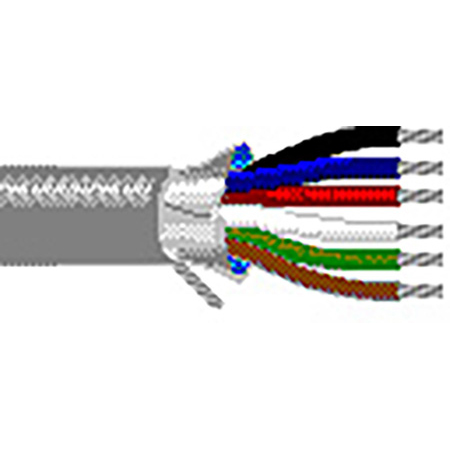

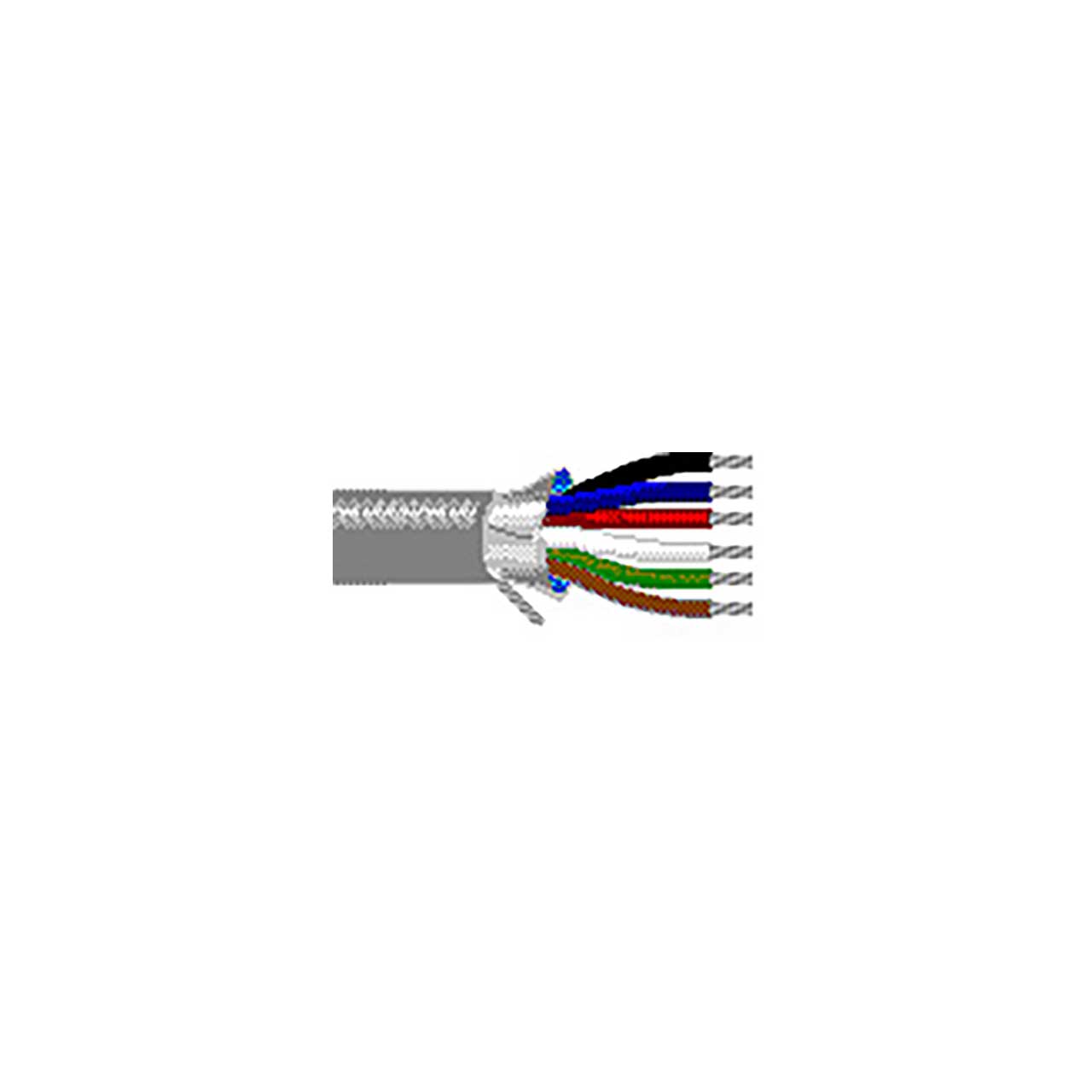

Belden 9539 -- 24 AWG stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil shield (100%coverage), 24 AWG stranded tinned copper drain wire, PVC jacket. Suitable for RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, .); Line Level Audio; Panel Wiring.


  • Specifications

    • AWG: 24
    • Stranding: 7x32
    • Material: TC - Tinned Copper
    • Nominal Diameter: 0.021 in
    • Conductor Count: 9
    • Cable Diameter (Nominal): 0.244 in
    • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
    • UL Rating Operating: 60°C (UL CMG);80°C (UL AWM 2464
    • Operating: -30°C to +80°C
    • Max. Pull Tension: 55 lbs
    • Bulk Cable Weight: 33 lbs/1000ft
    • Environmental Suitability: Indoor
    • Sustainability: CA Prop 65
    • Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CMG
    • AWM Compliance: 2464
    • CEC / C(UL) Compliance: CMG

  • GTIN:

    0612825255420
