Belden 9729 CM Rated Computer EIA RS-232/422 2-Pair 100 Ohm Digital Audio Cable - 24 AWG Stranded - Chrome - 500 Foot

ITEM #: BL-9729-500 MFG #: 9729 060500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    9729 060500 - Overview

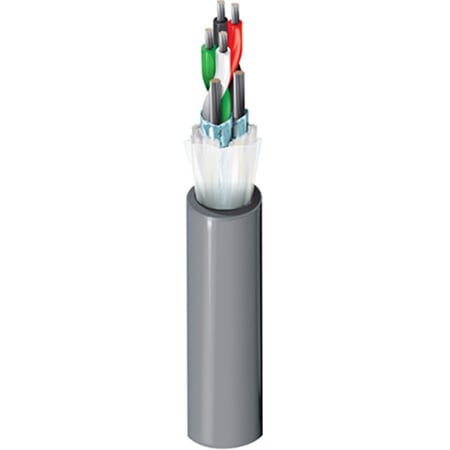

    Belden 9729 is a low capacitance digital audio cable used in Computer EIA RS-232/422 applications. Belden 9729 has a nominal impedance of 100 Ohm and comes with 2 pairs of 24 AWG stranded (7x32) tinned copper conductors. It is protected from RFI and EMI interference by a 100% Aluminum foil-Polyester tape, individual Beldfoil® shields for 100% coverage plus a 90% tinned copper braid and Datalene® insulation. The jacket is CM rated PVC.

    With an unmatched ability to ensure system uptime, Belden Classics Electronic, Audio, Control and Instrumentation Cables are uniquely engineered for rugged industrial jobs. With proven reliability and performance backed by a 10-year no-cost warranty, these utility-grade essentials will outlast alternative options—even in the most demanding environments.

    Ideally suited for multiple-pair, individually shielded audio, communication, and data cables
    Computer Communications
    RS232/422 applications
    Low voltage analog data signals within enclosures
    Temperature and pressure sensors
    Relays, valves, meters, thermocouples, solenoids
    General instrumentation wiring
    Sound and Digital Audio
    Actuators, contacts, push buttons, and alarms

    • Features:

      • Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
      • Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
      • Lower Capacitance: Strong signal transmission over extended distances
      • Increased Flexibility: Finely stranded conductors offer easier installation

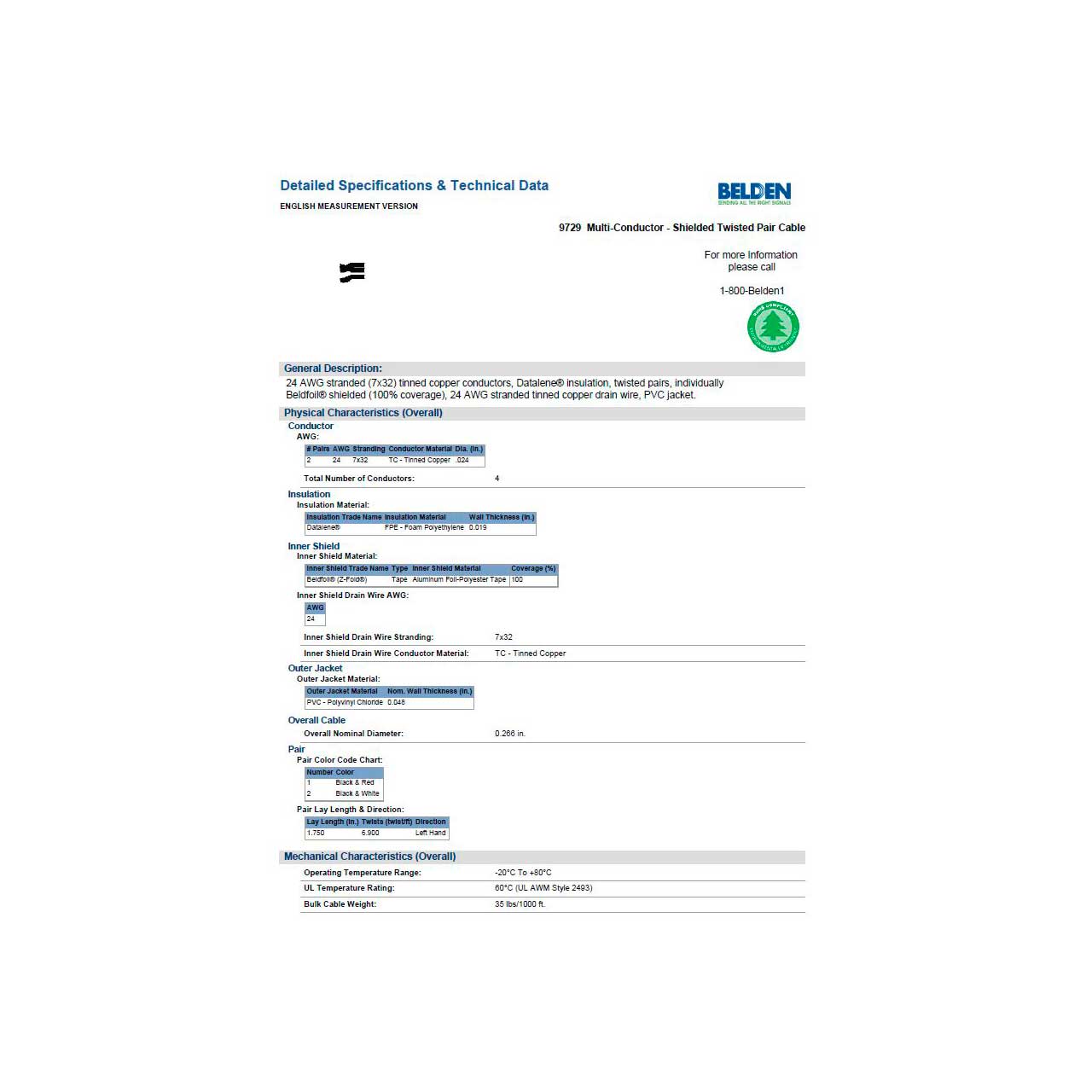

    • Specifications:

      • Number of Pairs: 2
      • Total Number of Conductors: 4
      • AWG: 24
      • Stranding: 7x32
      • Overall Nominal Cable Diameter: .266 in.
      • Conductor Diameter: .024 in.
      • Conductor Material: TC - Tinned Copper
      • Insulation Material Trade Type: Datalene
      • Insulation Material: FPE - Foam Polyethylene
      • Insulation Diameter: .061 in.
      • Inner Shield Material Trade Name: Beldfoil
      • Inner Shield Type: Tape
      • Inner Shield Material: Aluminum Foil-Polyester Tape
      • Inner Shield % Coverage: 100 %
      • Inner Shield Drain Wire AWG: 24
      • Inner Shield Drain Wire Stranding: 7x32
      • Inner Shield Drain Wire Conductor Material: TC - Tinned Copper
    • Item Includes:

      • 9729 CM Rated 100 Ohm Digital Audio Cable - Chrome - 500 Foot Reel
    • Warranty:

      • Limited 10 Year Warranty
    • GTIN:
