Belden 9841 CM Multi-Pair RS-485/DMX512 Low Capacitance Control Cable STR/TC/SF/UTP 1 Pr 24AWG - Chrome - Per Foot

ITEM #: BL-9841-FT MFG #: 9841 PER FOOT

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship


Availability: Sold Out
iAvailability Description Popup


    9841 PER FOOT - Overview

    RS-485 Serial Control Cable for Enhanced Automation Systems

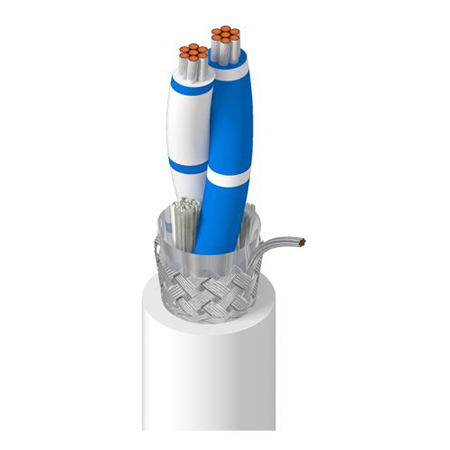

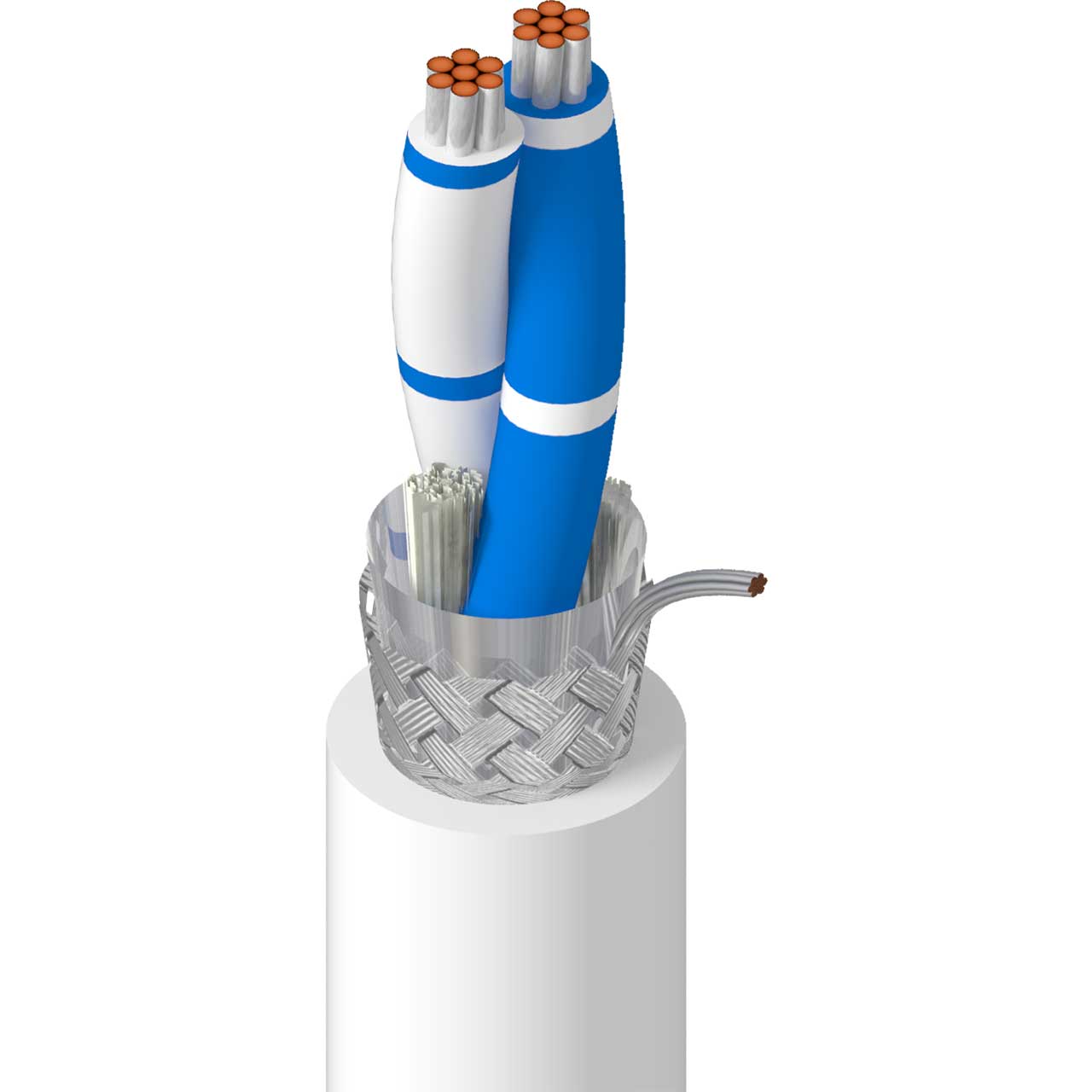

    Belden 9841 is a Multi-Pair Low Capacitance RS-485 SF/UTP Control Cable with 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, in a CM rated PVC Outer Jacket.

    A Belden Multi-Pair Cable is an electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

    Applications
    RS-485 Protocol
    POS (Point of Sale) Equipment
    Computer Communications
    Low Voltage Analog Signals (4-20ma, 0-10v,...)
    Low Voltage Digital Control (24v,…)
    Line Level Audio
    Panel Wiring
    Serial communication (RS-485 standard) like PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

    • Features:

      • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
      • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
      • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference

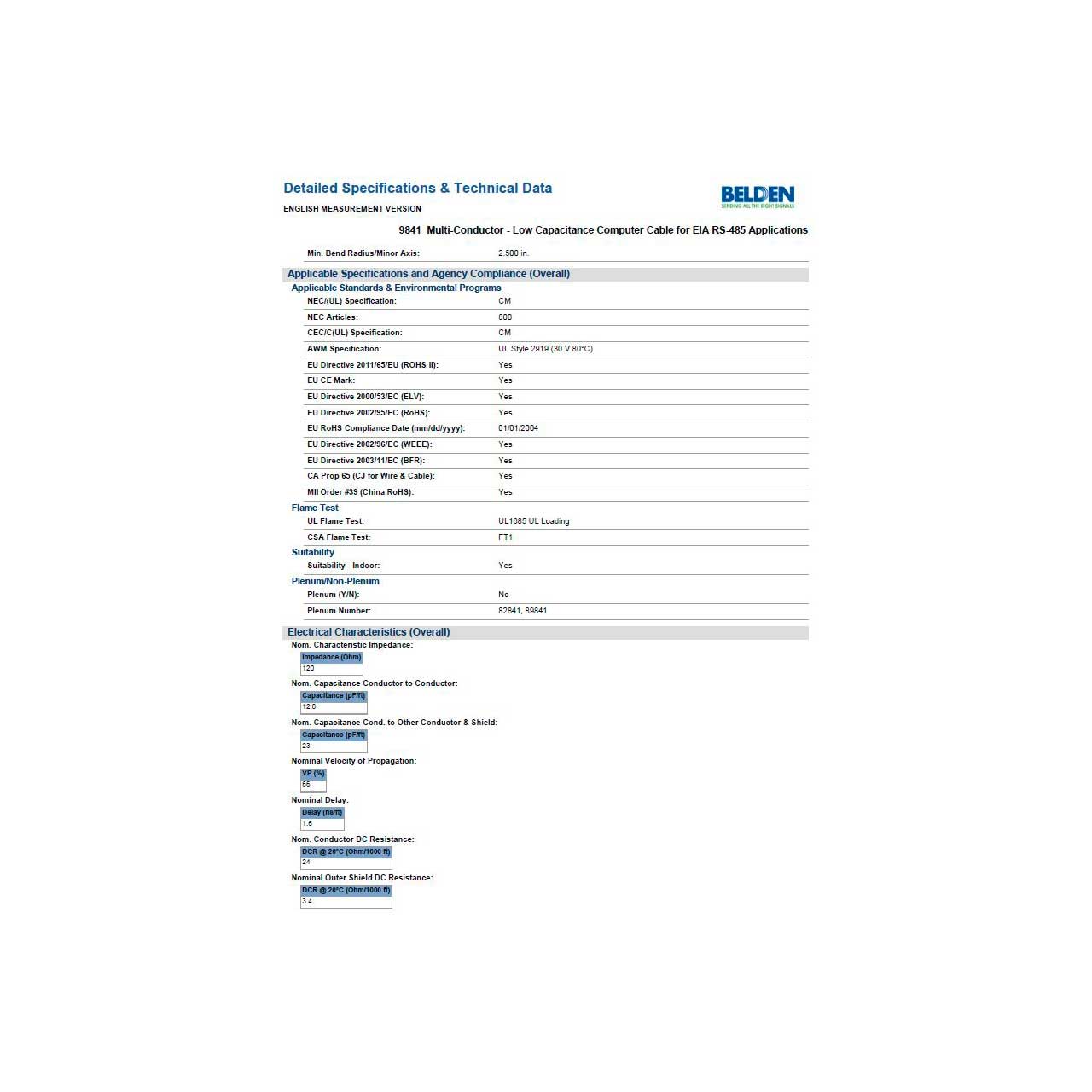

    • Specifications:

      • Pairs: 1
      • Conductor AWG: 24
      • Conductor Stranding: 7x32
      • Conductor Material: TC - Tinned Copper
      • Insulation Material: PE - Polyethylene
      • Insulation Nom. Thickness: 0.023 in (0.58 mm)
      • Insulation Nominal Diameter: 0.068 in (1.7 mm)
      • Insulation Color Code: White/Blue Stripe & Blue/White Stripe
      • Outer Shield Type Tape: Bi-Laminate (Alum+Poly) 100%
      • Outer Shield Type Braid: Tinned Copper (TC) 90%
      • Drainwire Type: 24 AWG (7x32) TC
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.035 in (0.89 mm)
      • Outer Jacket Nom. Diameter: 0.232 in (5.89 mm)
      • Overall Cable Diameter (Nominal): 0.232 in (5.89 mm)
      • UL Temperature: 80°C
      • Operating Temperature: -30°C to +80°C
      • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
      • UL Rating: 80°C (UL AWM 2919)
      • Operating: -30°C to +80°C
      • Stationary Min.: 3.5 in
      • Max. Pull Tension: 87 lbs
      • Bulk Cable Weight: 49 lbs/1000ft
      • Environmental Suitability: Indoor
      • Flammability/Fire: Resistance: IEC 60332-1-2
      • NEC/UL Compliance: Article 800, CM
      • AWM Compliance: 2919
      • CEC/C(UL) Compliance: CM

    • Item Includes:

      • 9841 Low Capacitance Control Cable 1 Pr 24AWG - Chrome - Per Foot

    • Warranty:

      • Limited 10 Year Warranty
