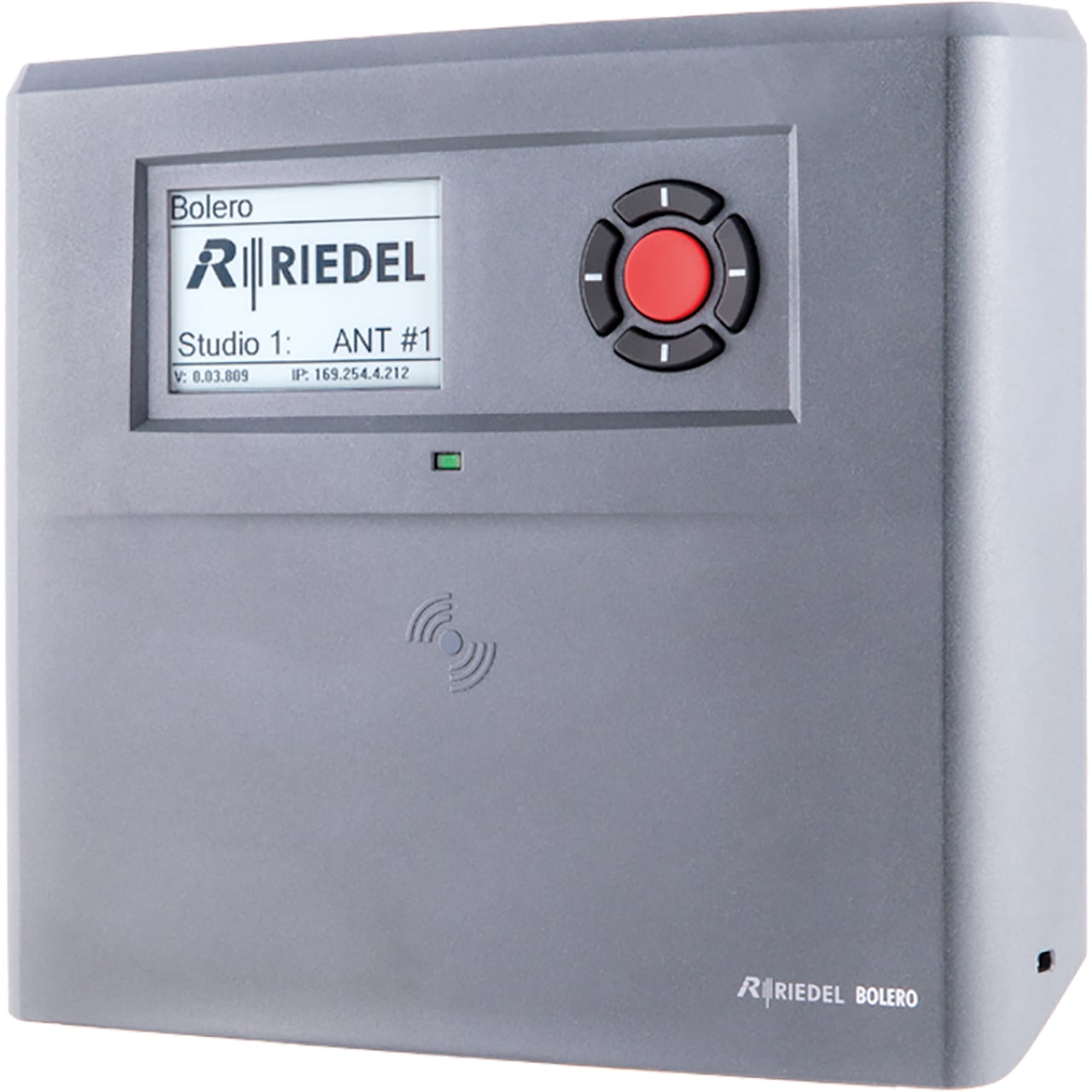

Riedel BL-ANT-1010-19G-US DECT G2F wireless intercom system is capable of supporting up to 250 beltpacks and 100 antennas in a single deployment, Bolero is a true gamechanger. Bolero redefines the wireless intercom category with features such as its ADR (Advanced DECT Receiver) with multi-diversity and antireflection technology for greater RF robustness, "Touch&Go" NFC beltpack registration, and versatile operation as a wireless beltpack, a wireless keypanel, or - in an industry first - a walkie-talkie.

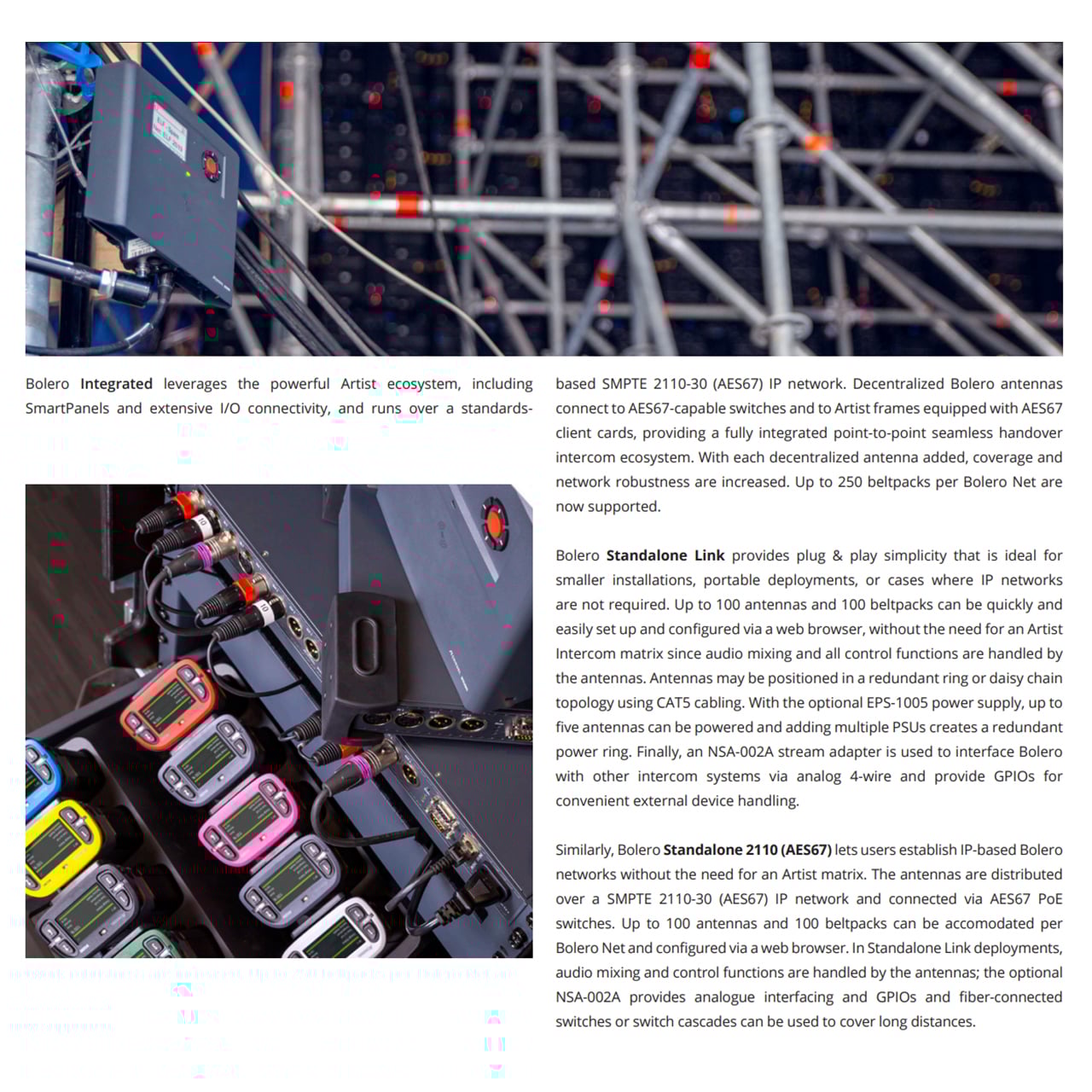

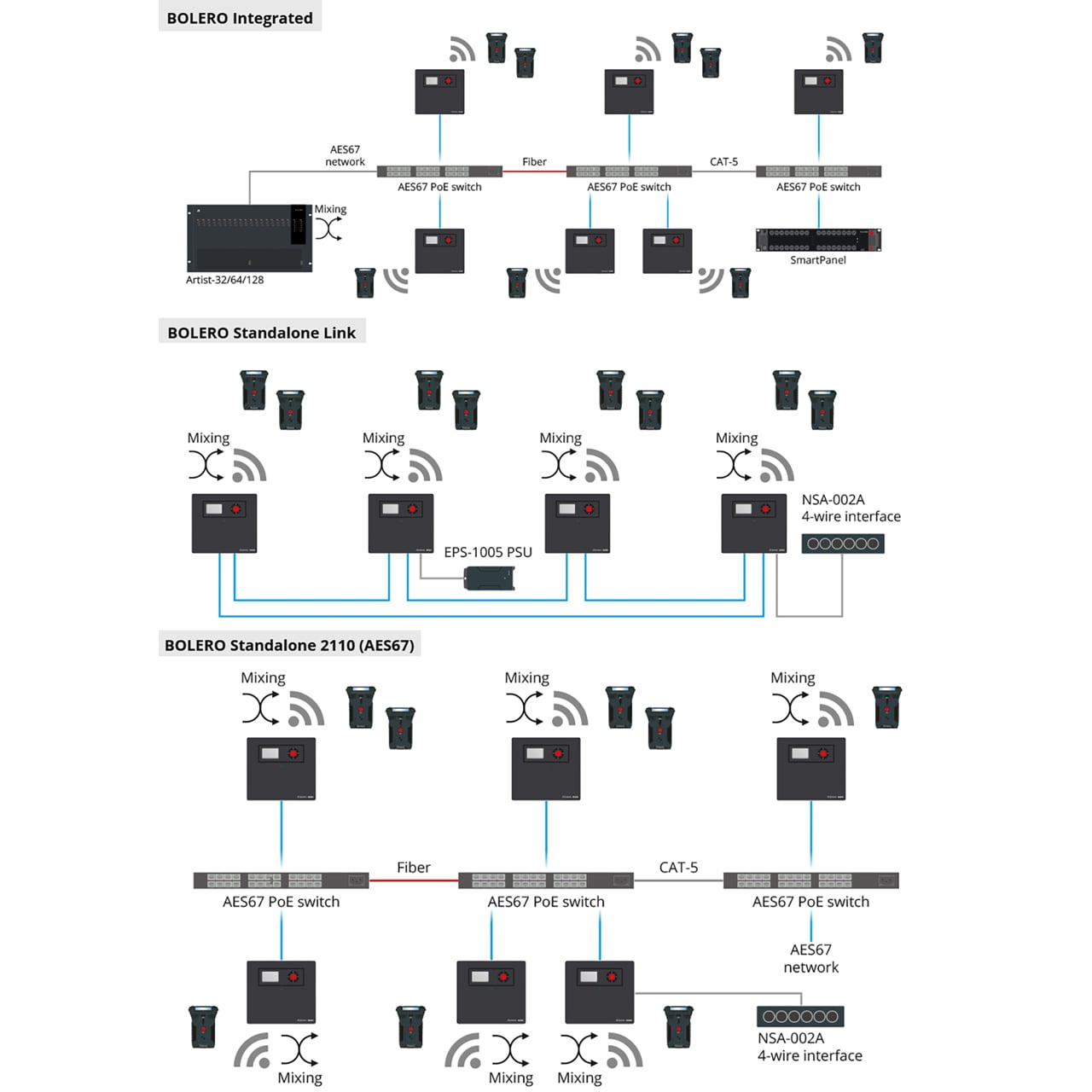

With the addition of the newest Bolero Standalone 2110 (AES67) mode, there are now three network modes available for Bolero systems - each of them dedicated to specific applications. Bolero Integrated leverages the powerful Artist ecosystem, including SmartPanels and extensive I/O connectivity, and runs over a standards based SMPTE 2110-30 (AES67) IP network. Decentralized Bolero antennas connect to AES67-capable switches and to Artist frames equipped with AES67 client cards, providing a fully integrated point-to-point seamless handover intercom ecosystem. With each decentralized antenna added, coverage and network robustness are increased. Up to 250 beltpacks per Bolero Net are now supported.
Bolero Standalone Link provides plug & play simplicity that is ideal for smaller installations, portable deployments, or cases where IP networks are not required. Up to 100 antennas and 100 beltpacks can be quickly and easily set up and configured via a web browser, without the need for an Artist Intercom matrix since audio mixing and all control functions are handled by the antennas. Antennas may be positioned in a redundant ring or daisy chain topology using CAT5 cabling. With the optional EPS-1005 power supply, up to five antennas can be powered and adding multiple PSUs creates a redundant power ring. Finally, an NSA-002A stream adapter is used to interface Bolero with other intercom systems via analog 4-wire and provide GPIOs for convenient external device handling.
