Belden DAUP 010100 23AWG Category 6A 4-Pair Premise Horizontal Unshielded CMP Cable - U/UTP - Black - 1000 Foot

ITEM #: BL-DAUP0101000BK MFG #: DAUP 0101000

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,015.40

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DAUP 0101000 - Overview

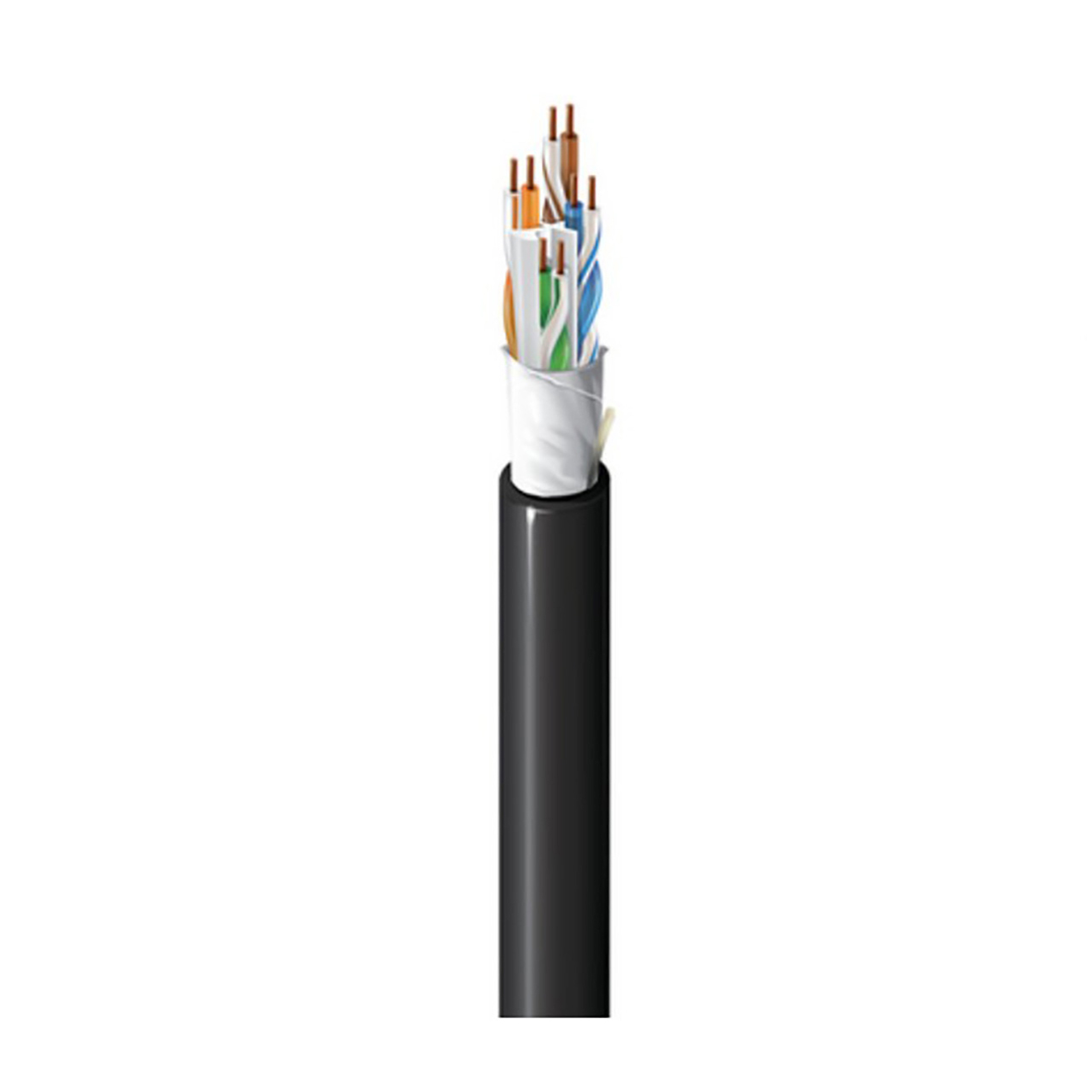

Belden DAUP 0101000 is a Flamarrest® Premise Horizontal Cat6a Cable, 4 Pair, 23AWG, U/UTP, Bare Copper, Solid. It's Plenum, with Dual FRPO/FEP Insulation, and a Ripcord, housed in a Black LS-PVC (limited smoke) Jacket.

Applications
Premise Horizontal Cable, Ethernet 10GBASE-T.

Premise vs Plenum
Premise Cables are the wiring that is used to connect LAN and phone equipment within a building. It is made up of vertical and horizontal cable that runs from a central location such as a server room throughout the building to individual desktops. Plenum specifically refers to cables designed for use in areas that are part of the HVAC airflow like ductwork or spaces used for air circulation requiring higher fire and smoke resistance

  • Features:

    • Reliable Network Performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
    • Best-In-Class System Noise Immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
    • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

  • Specifications:

    • Category: CATEGORY 6A
    • Conductor Size: 23 AWG (AMERICAN WIRE GAUGE)
    • Conductor Type: SOLID
    • Conductor/Pair Count: 4 PAIR
    • Separator: Center Member (Patented X-Spline), EquiBlock. Barrier Technology.
    • Material: PVC - Polyvinyl Chloride.
    • Nom. Diameter: 1/4"
    • Ripcord: YES
    • Fire Rating: PLENUM
    • Jacket Color: BLACK
    • Shielded: U/UTP - UNSHIELDED TWISTED PAIR
    • Type: DATA
    • UNSPSC Code: 26121609
    • Max. Pull Tension: 25lbs (11kg)
    • Bulk Cable Weight: 34lbs/1000ft
    • UL Temperature: 167°F (75°C)
    • Operating & Storage Temp: -4°F - 167°F (-20°C - 75°C)
    • Bend Radius: 1-1/2"
    • Color Code: White & Blue, White & Orange, White & Green, White & Brown.
