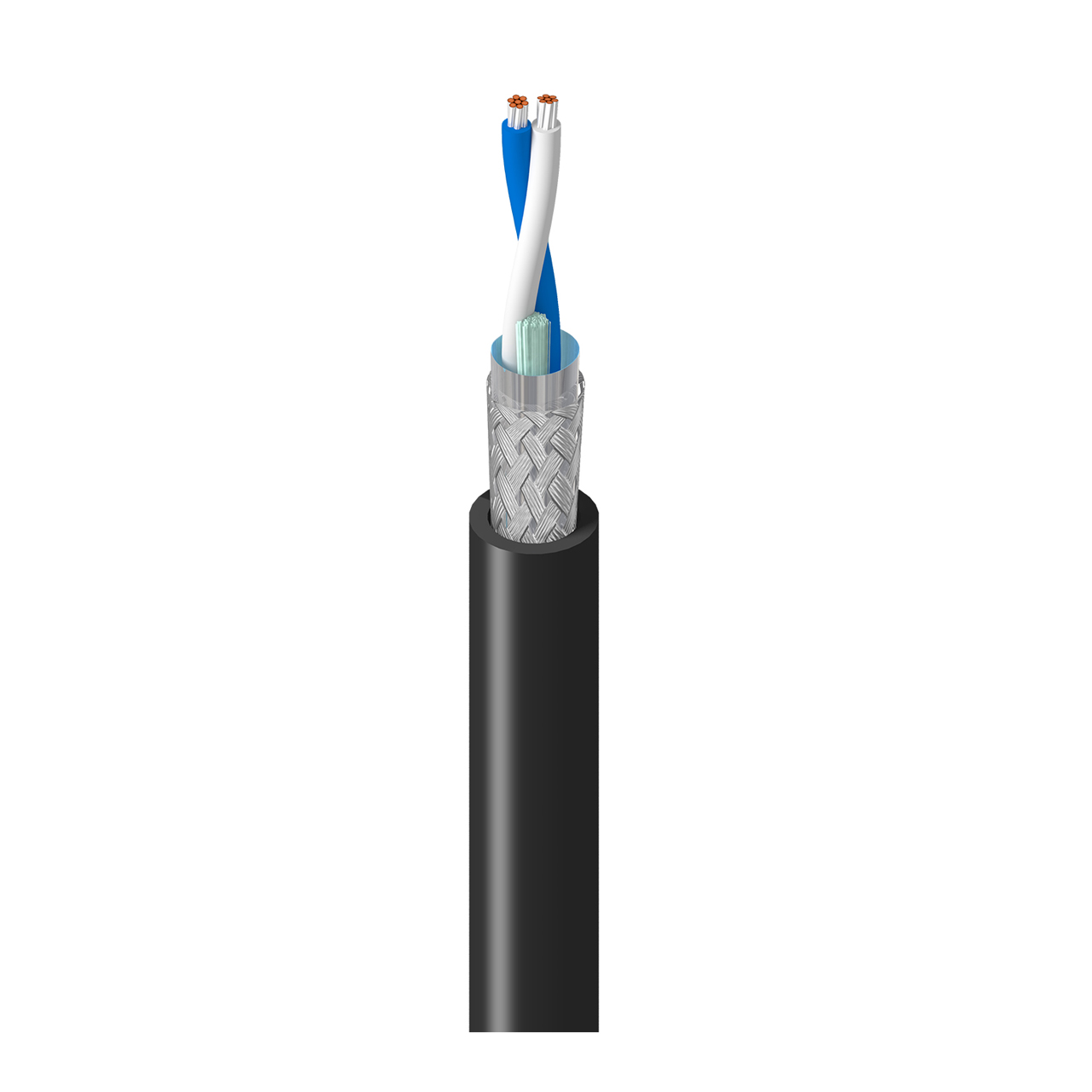

Belden SPE102 DataTuff Industrial SPE Single Pair Ethernet Cable 10Mbps - 22AWG SF/UTP PVC - Black Jacket - 1000 Foot

566-SPE1020101000 - Overview

• Specifications:

  • Conductor Size: 22 AWG
  • Stranding: Stranded
  • Material: TC - Tinned Copper
  • No. of Pairs: 1
  • Insulation Material: PE - Polyethylene (Foam)
  • Nom. Insulation Diameter: 0.067" (1.7mm)
  • Color Code: White & Blue
  • Outer Shield: Tape & Braid
  • Tape Material: Bi-Laminate (Alum+Poly), Coverage100%
  • Braid Material: Tinned Copper (TC), Coverage 90%
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Cable Diameter (Nominal): 0.245" (6.22mm)
  • UL Voltage Rating: 300V (UL 13 PLTC)
  • UL Temperature: 167°F (75°C)
  • Operating Temperature: -22°F - 167°F (-30°C - 75°C)
  • Bend Radius - Installation Min.: 2" (51mm)
  • Max. Pull Tension: 10lbs (4.5kg)
  • Bulk Cable Weight: 38lbs/1000ft
  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance.
  • Flammability/Reaction to Fire: UL 1685 UL Loading
  • NEC/UL Compliance: CM, PLTC
  • IEEE Compliance: IEEE 802.3cg
  • TIA/EIA Compliance: ANSI/TIA-568.5
