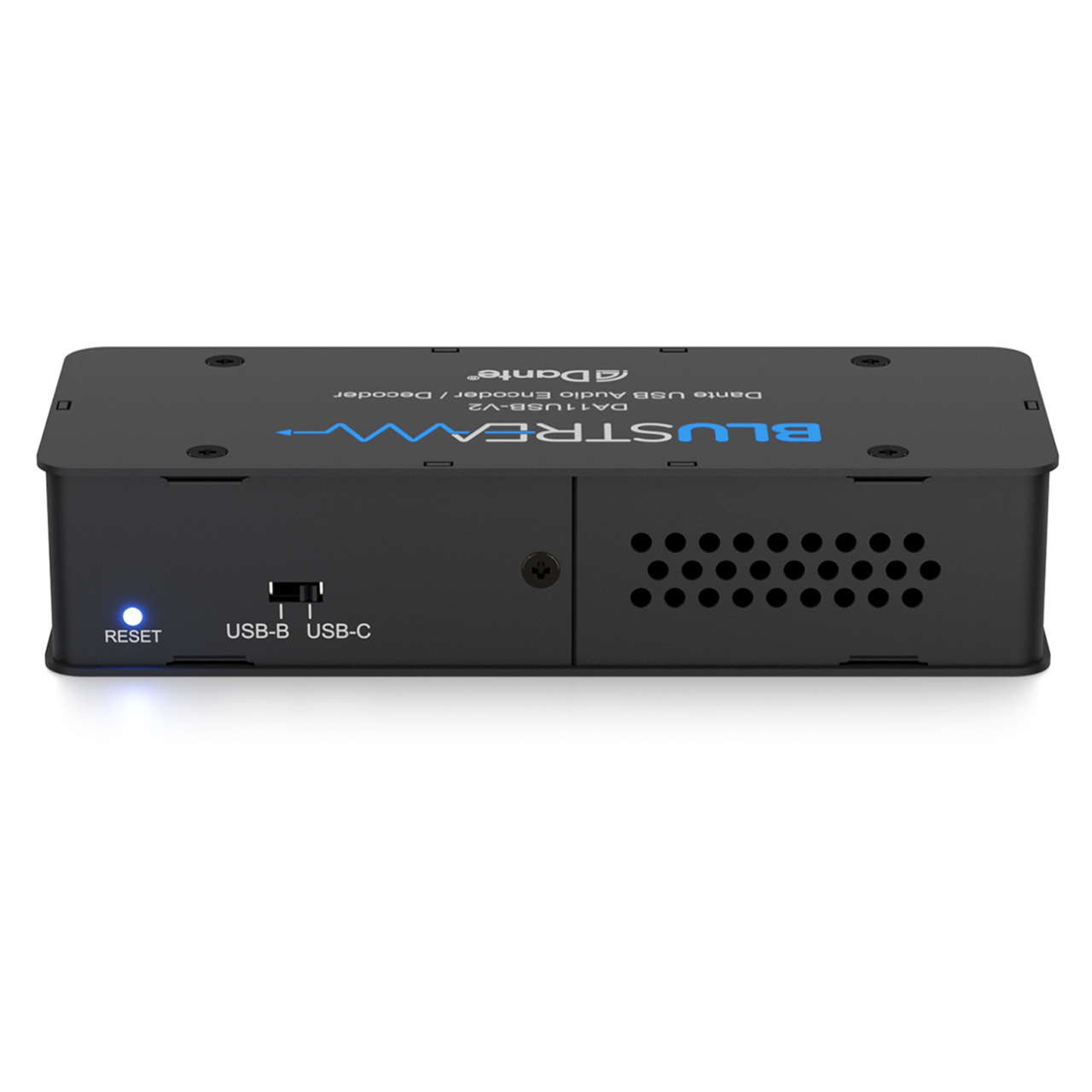

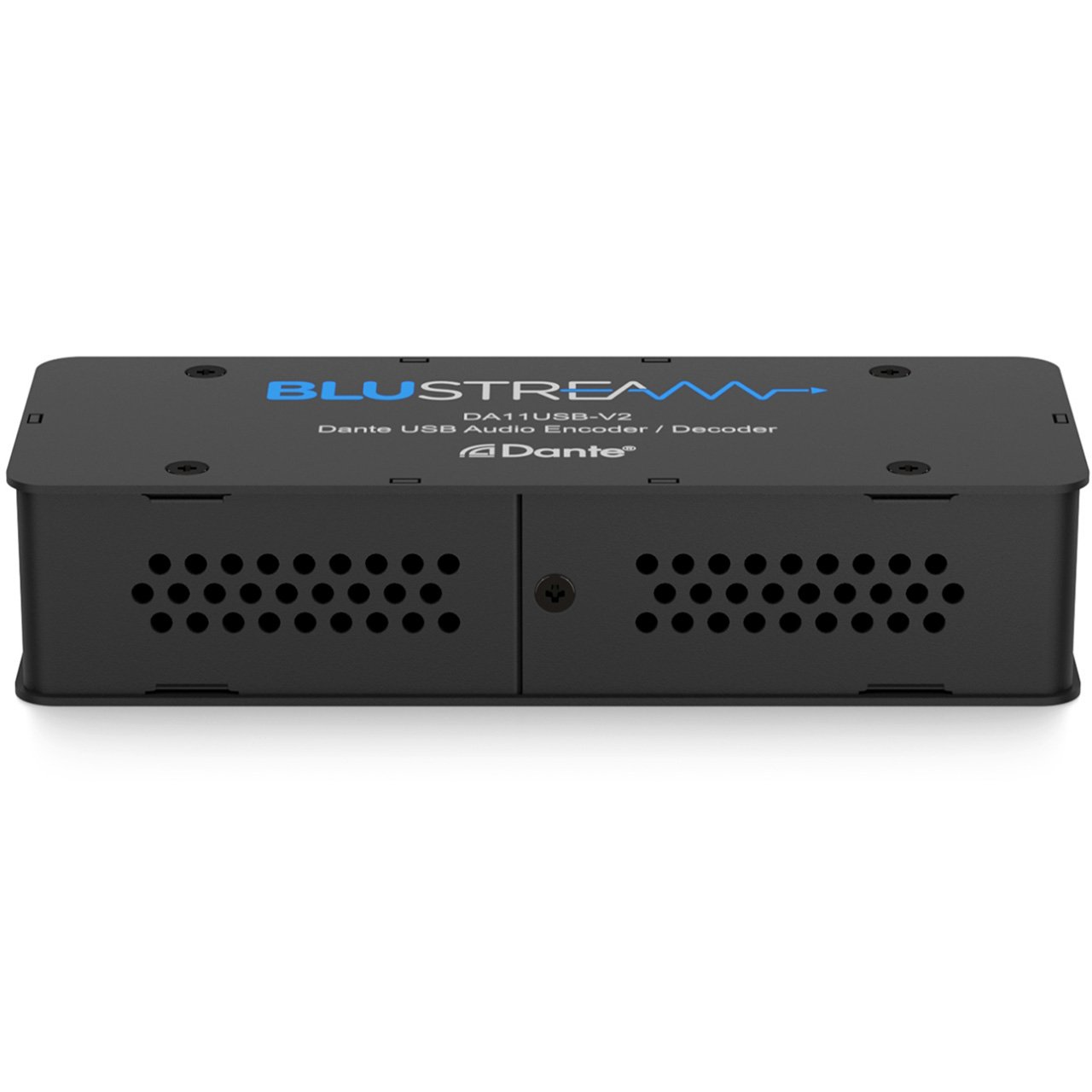

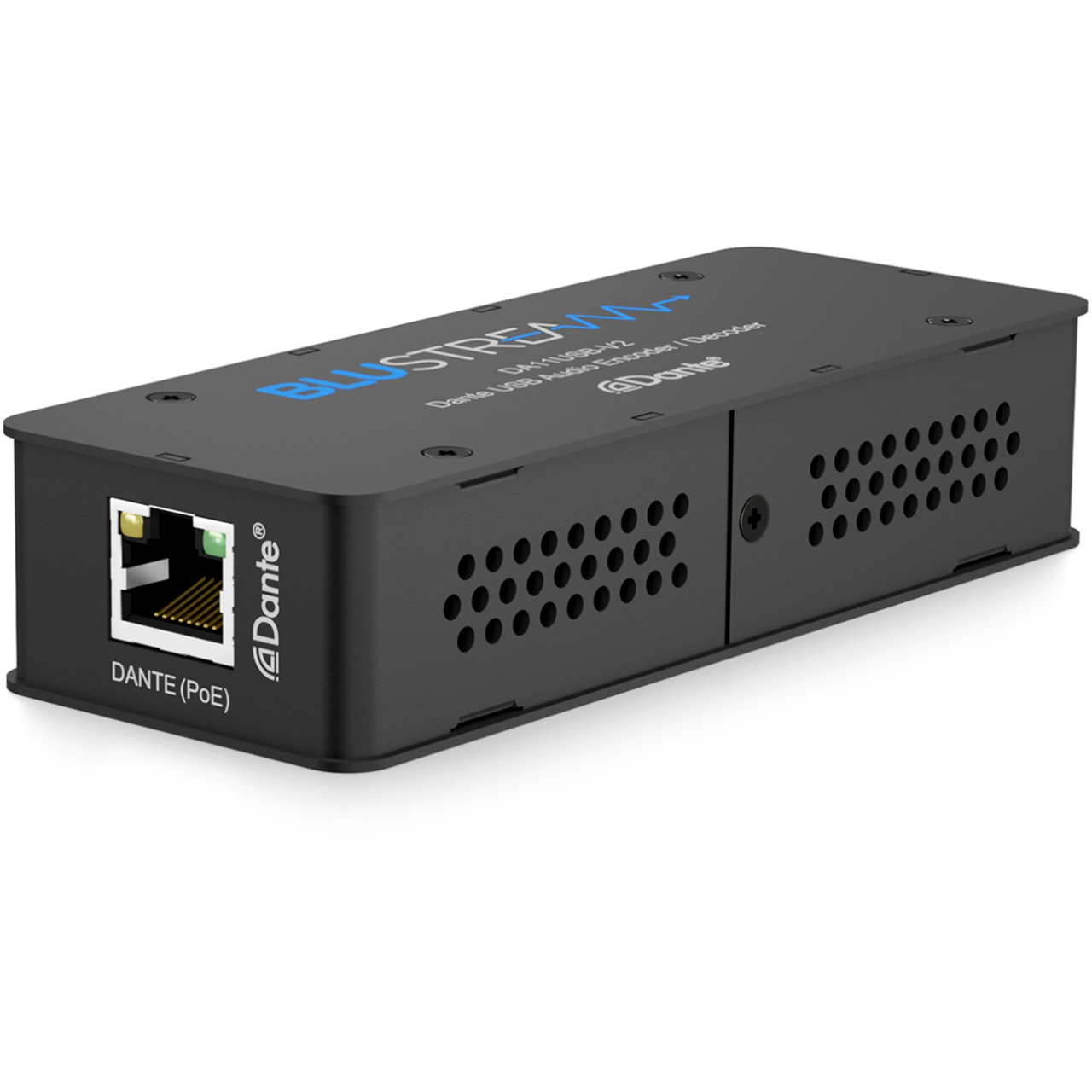

Blustream DA11USB-V2 2-Channel Dante USB Audio Encoder / Decoder

DA11USB-V2 - Overview

• Features:

  • Encodes 2ch USB audio to Dante digital signal
  • Decodes a Dante digital signal to USB audio
  • Selectable USB audio between USB Type-B and USB-C inputs
  • Compliant with USB Audio Device Class Specification V2.0
  • USB Audio Supports 44.1, 48, 88.2, 96, 176.4 & 192 KHz sample rates @ 16, 24 & 32 Bit
  • Dante Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
  • Configurable Dante device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 5V USB for when network switch does not support PoE


• Specifications:

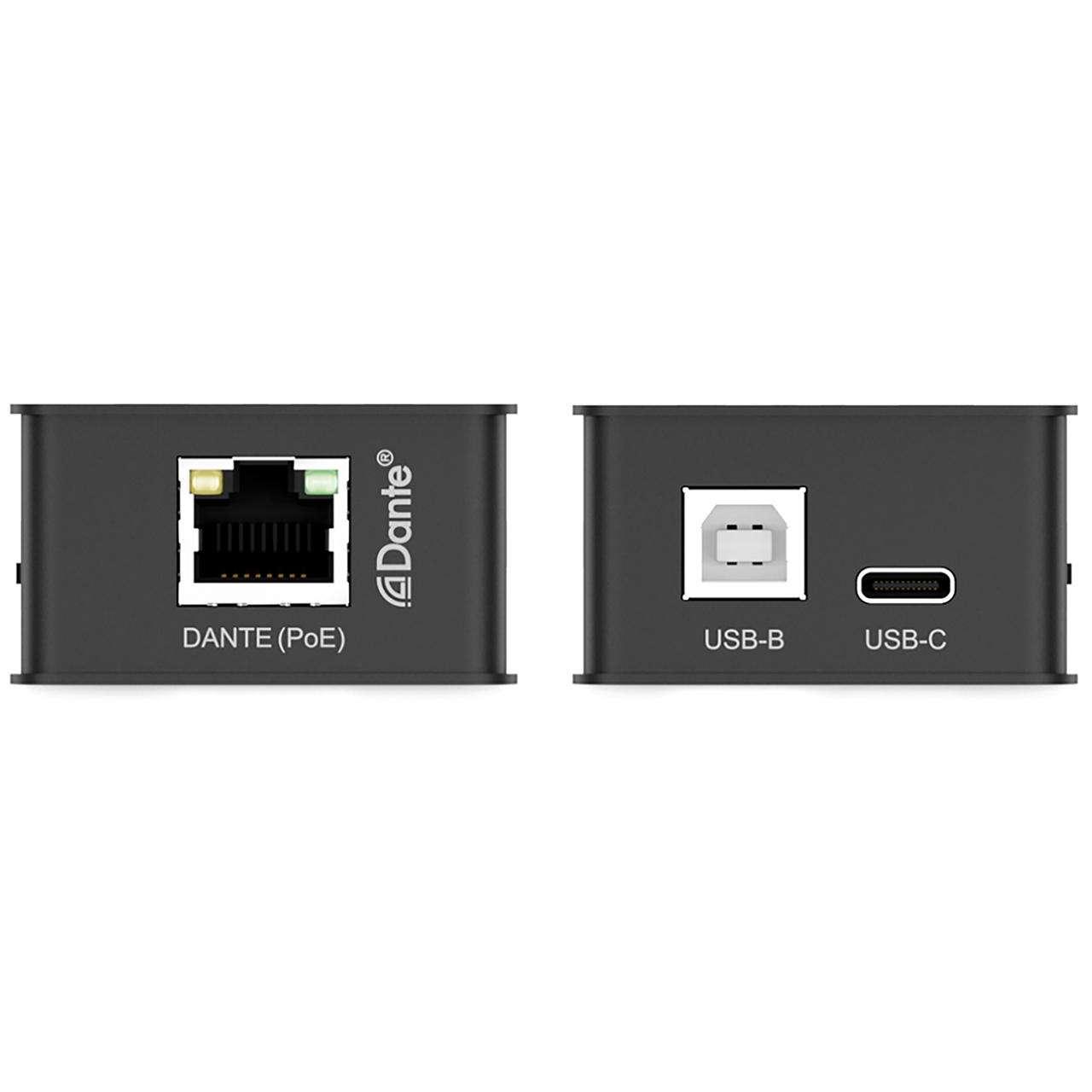

  • Audio Input Connectors:
    - 1x RJ45, Female (100Mbps Dante network)
    - 1x USB Type B Female,
    - 1x USB Type C Female
  • Audio Output Connectors:
    - 1x RJ45, Female (100Mbps Dante Network)
    - 1x USB Type B Female,
    - 1x USB Type C Female
  • Casing Dimensions (WxHxD): 4.7" x 1" x 1.9" (120mm x 26mm x 47mm)
  • Shipping Weight: 0.66lb (0.3kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: Class 3 IEEE 802.3af PoE, or 5V USB


• Item Includes:

  • 1x DA11USB-V2
  • 1x USB-A to USB-B 1m cable
  • 1x USB-C to USB-C 1m cable
  • 1x Quick Reference Guide


• Warranty:

  • 1-Year Limited Warranty
