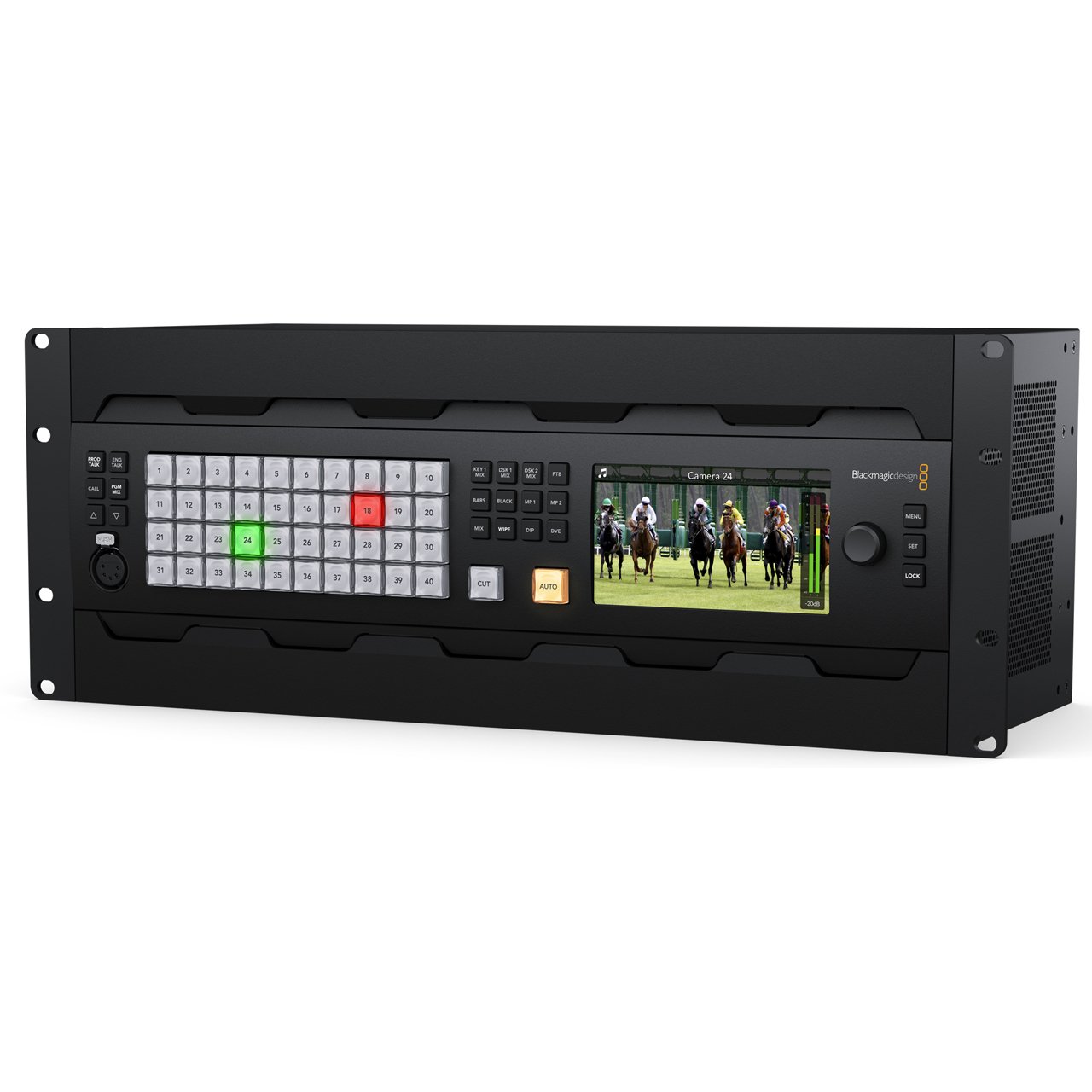

Blackmagic Design SWATEMSCN2/2ME4/4K/P ATEM 4 M/E Constellation 4K Plus Ultra HD 80x48 12G-SDI Live Production Switcher

SWATEMSCN2/2ME4/4K/P - Overview

• Features:

  • 80 standard converted 12G-SDI inputs
  • 48 12G-SDI aux outputs
  • 4 DVEs
  • 6 ATEM Advanced Chroma Keyers
  • 4 media players
  • 4 independent Ultra HD multi-views
  • 2 SuperSource processors
  • Built-in Talkback
  • Professional 156 channel Fairlight audio mixer with EQ and dynamics


• Specifications:

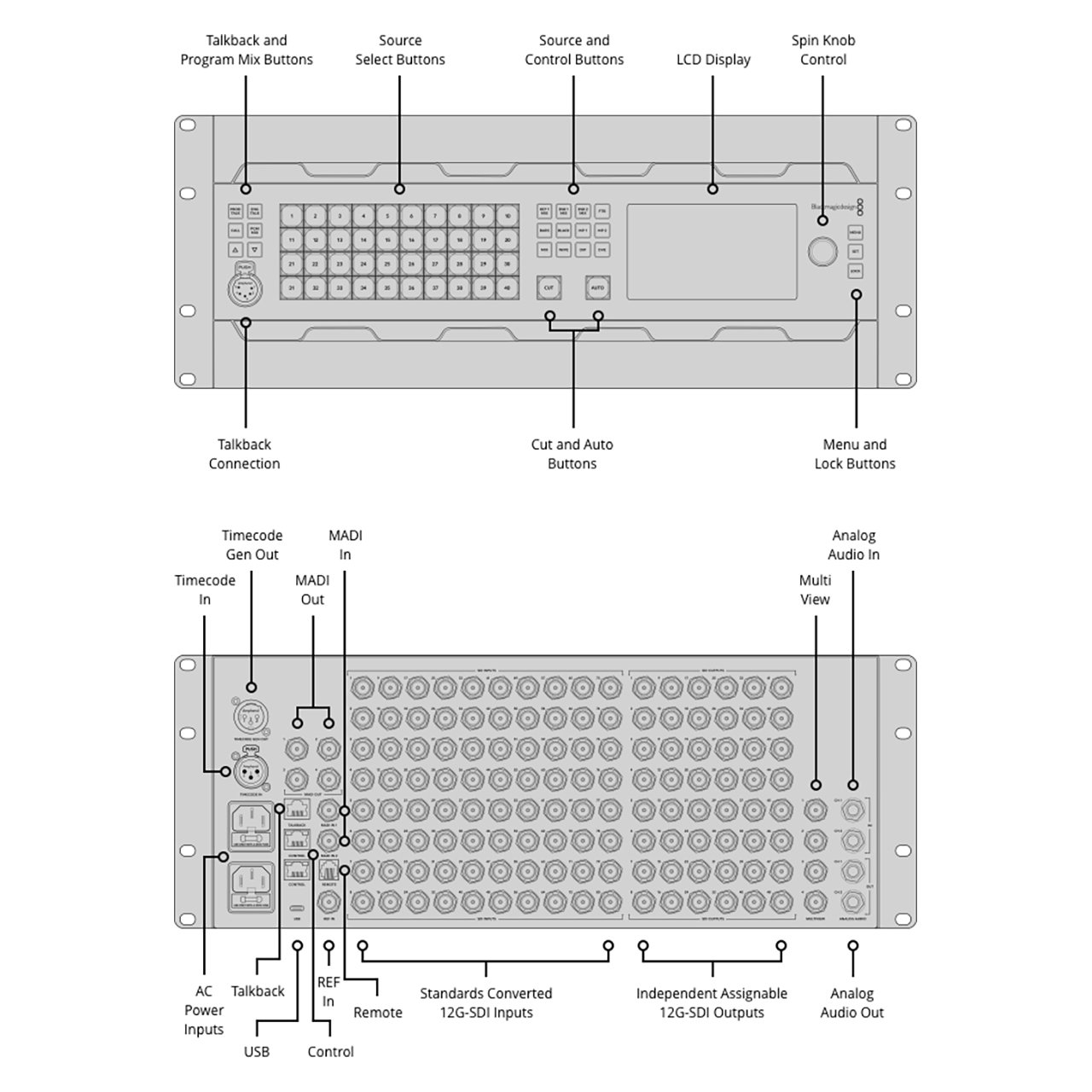

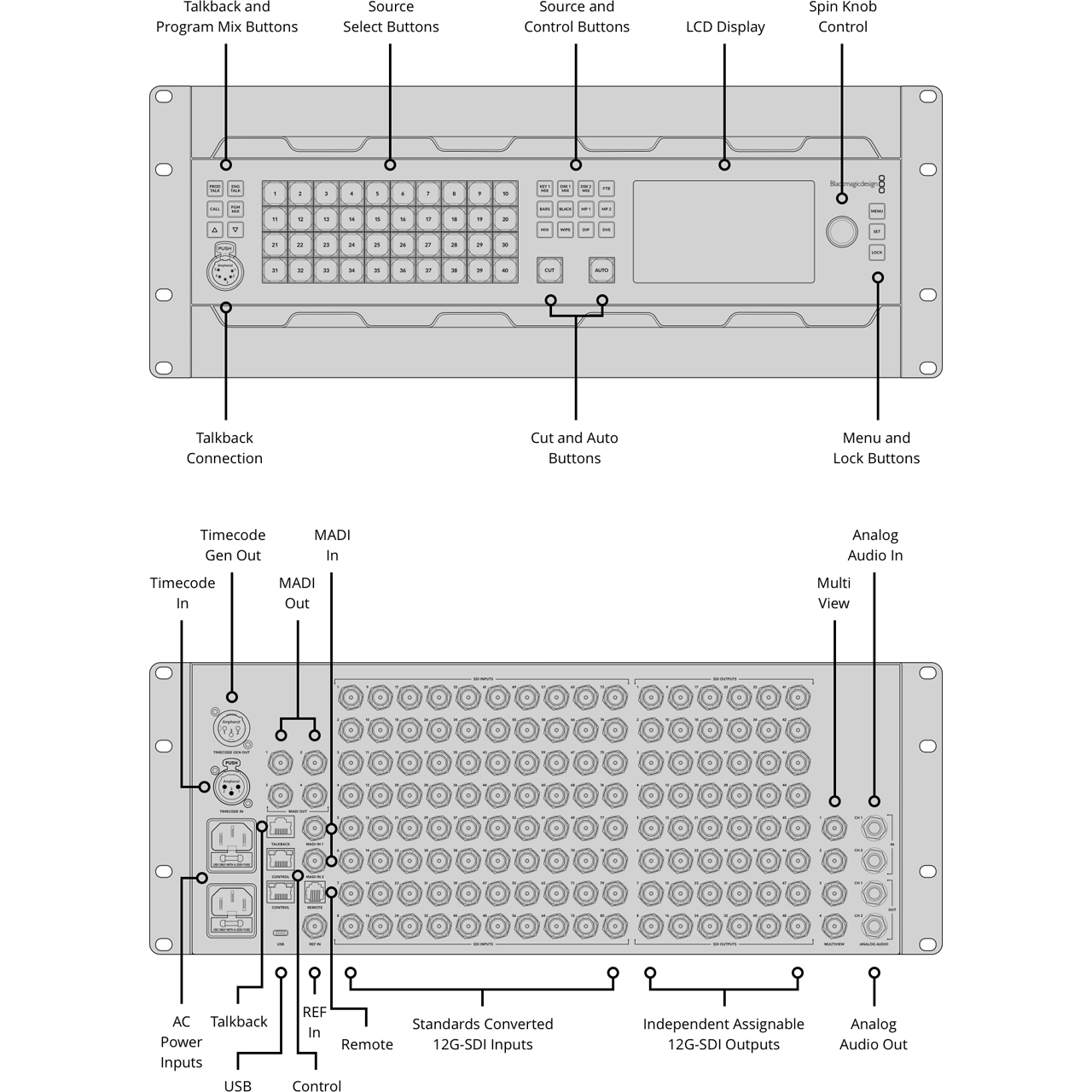

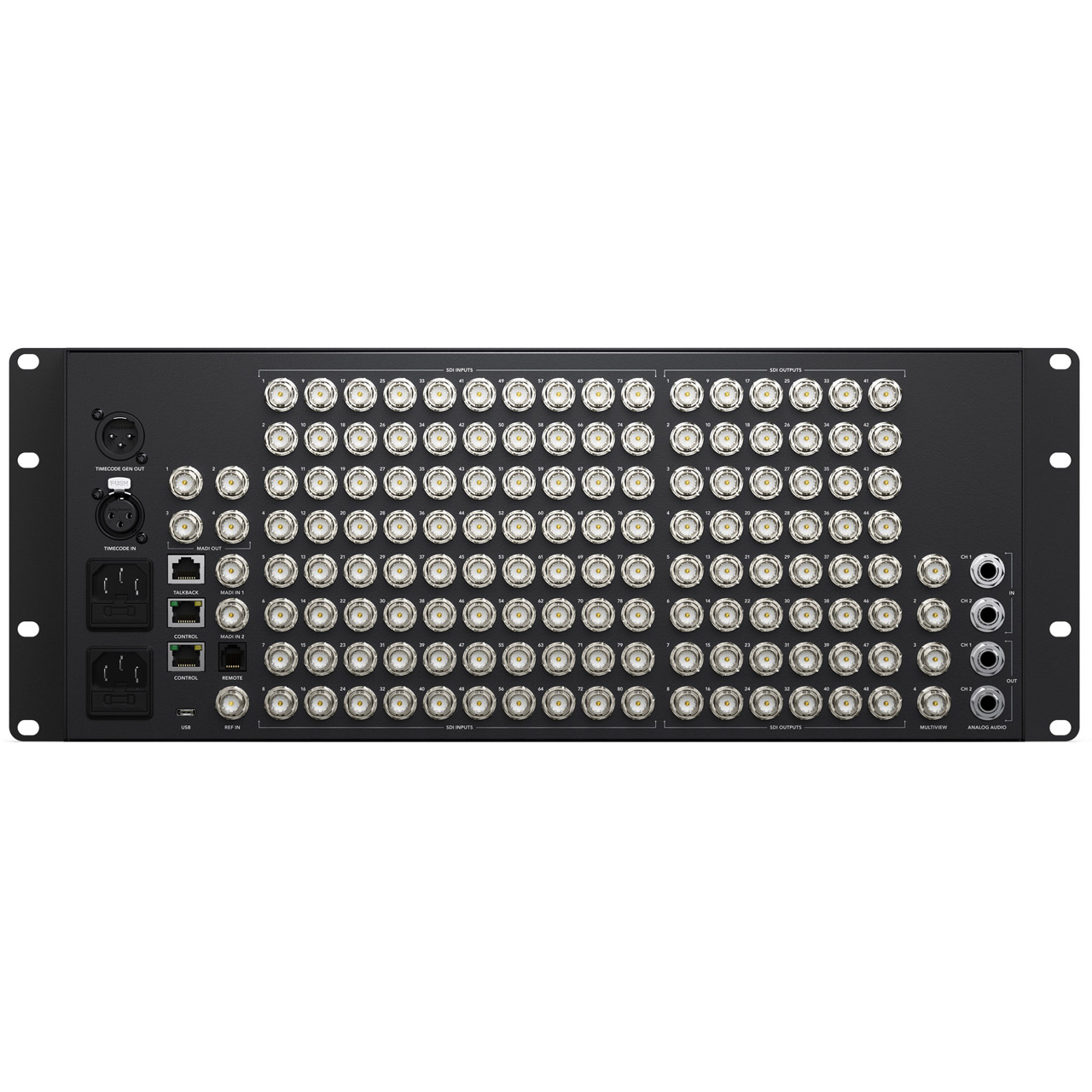

  Connections
  • Total Video Inputs: 80
  • Total Video Outputs: 52
  • Total Aux Outputs: 48
  • SDI Rates: 1.5G, 3G, 6G, 12G
  • Total Audio Inputs:
    - 2x balanced 1/4" jack
    - 2x 64 channel BNC MADI in
    - 1x 5-pin XLR Talkback
  • Total Audio Outputs:
    - 2x balanced 1/4" jack
    - 4x 64 channel BNC MADI out
    - 1x 5-pin XLR Talkback
  • Timecode Connections
    - 1x 3-pin XLR Timecode In
    - 1x 3-pin XLR Timecode Out
  • Reference Input: Tri-Sync or Black Burst
  • Video Input Re-Sync: On all 80 input
  • Frame Rate and Format Converters: On all 80 inputs
  • SDI Video Inputs: 80x 10-bit 720p, 1080i, 1080p, 2160p
  • SDI Audio Inputs: 8 Ch embedded audio on all SDI inputs
  • Extra Audio Inputs: 1x 5 pin XLR Talkback
  • SDI Video Outputs 52x 10-bit 720p, 1080i, 1080p, 2160p
  • SDI Audio Outputs: 16 Ch embedded into SDI output on all outputs
  • Extra Audio Outputs: 1x 5 pin XLR Talkback
  • SDI Program Outputs: Any of the 48 SDI outputs
  • Down Converted SDI Program Outputs: 8
  • SDI Preview Outputs: Any of the 48 SDI outputs
  • SDI Multi View Outputs: 4x dedicated outputs, Up to an extra 48 routable outputs
  • Webcam Output: 1x USB-C supporting 720p or 1080p at program frame rate
  • Remote: RJ12 supports RS-422
  • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
  • Internal Timecode Generator: Yes
  • Talkback: RJ45 for 3rd party talkback systems
  • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). On any of the 48 SDI Outputs
  • Computer Interface: 1x USB-C port

    Standards
  • SD Video: None
  • HD Video: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60. 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Ultra HD Video: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, SMPTE 2082-12
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
  • Color Space: REC 709, REC 2020
  • SDI Auto Switching: Automatically detects between 1.5G-SDI, level A and level B 3G-SDI, 6G-SDI and 12G-SDI

    Product Specifics
  • Upstream Keyers: 16
  • Downstream Keyers: 4
  • Advanced Chroma Keyers: 16
  • SuperSource: 2
  • Talkback Support: Yes
  • Mix Minus Support: Yes
  • Linear/Luma Keyers: 20
  • Transition Keyer (Stinger/DVE): 4 Stinger, 4 DVE
  • Total Number of Layers: 28
  • Pattern Generators: 21
  • Color Generators: 2
  • DVEs: 4
  • Control Panel: Front fascia emergency switching, software or optional hardware panel
  • Routable Windows: 64
  • Tally: Red for program and green for preview indication

    Multi View Monitoring
  • Multi View Monitoring: 4x 16 Multiview pattern options for up to 64 total views
  • Multi View Video Standard: Select HD or Ultra HD

    Media Player
  • Media Players: 4
  • Channels: Fill and key for each media player
  • Media Pool Still Image Capacity: 64
  • Media Pool Clip Capacity: 4
  • Media Player Clip Length in 720 HD: 3200 frames
  • Media Player Clip Length in 1080 HD: 1600 frames
  • Media Player Clip Length in Ultra HD: 400 frames
  • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
  • Media Pool Video File Format: TGA Sequence
  • Media Pool Audio File Format: WAV, MP3 and AIFF

    Display
  • Interface: Minimum monitor resolution of 1366 x 768

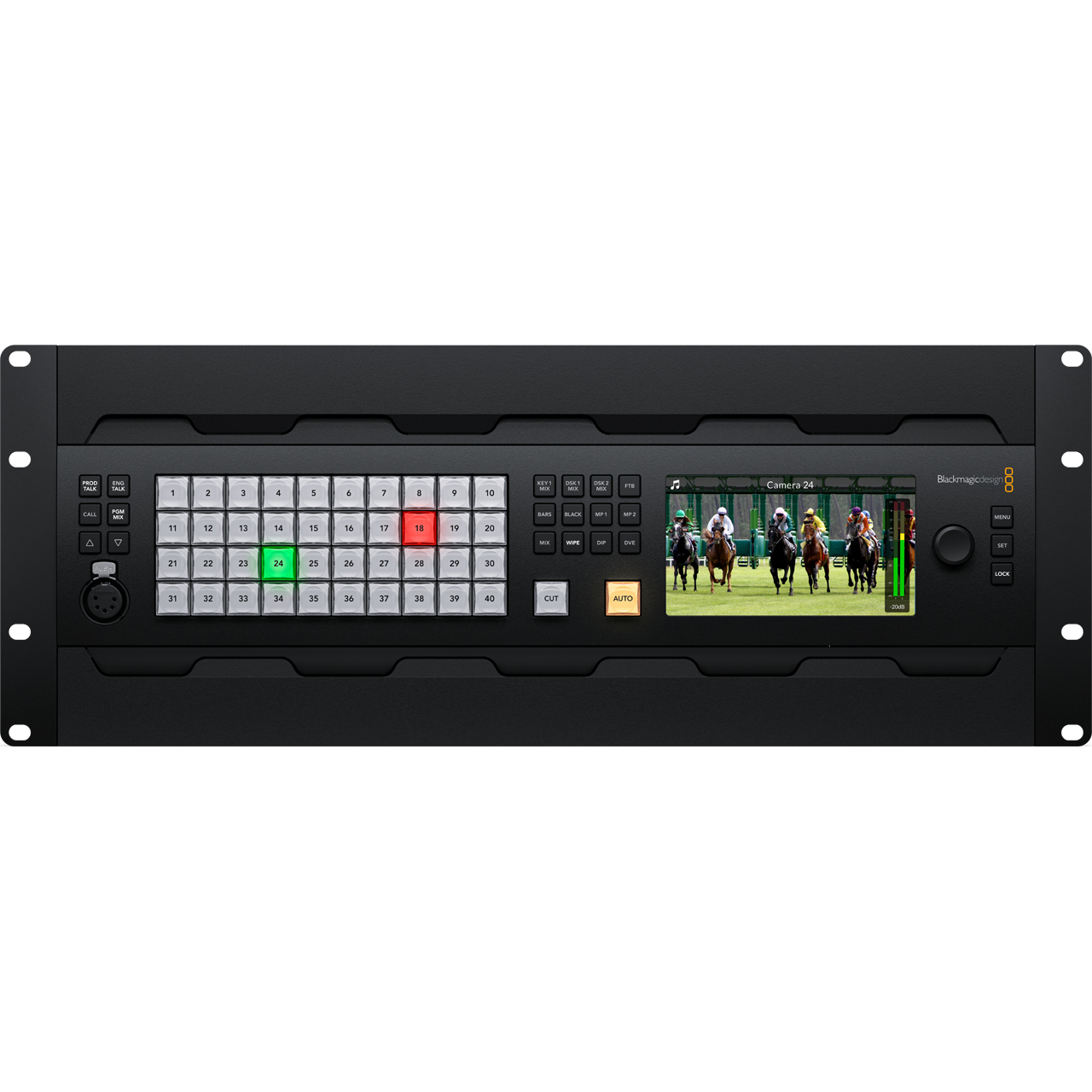

  • Front Panel: Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

    Power Requirements
  • Power Supply: 2x Internal 100V - 240V AC 50/60Hz

    Weight and Dimensions
  • Weight: 26.99lbs
  • Dimensions: 19" x 7" x 8.9"


• Item Includes:

  • 1x ATEM 4 M/E Constellation 4K Plus
  • 1x Welcome wallet with QR code for software download


• Warranty:

  • 1 Year Limited Warranty
