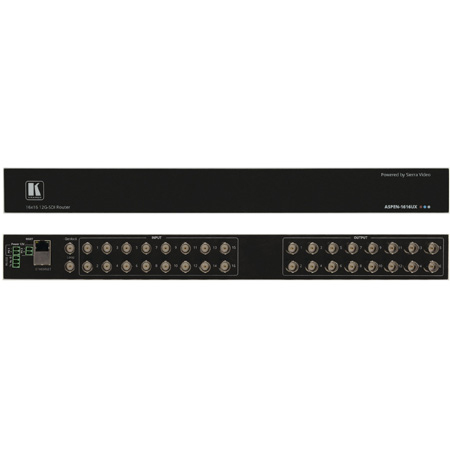

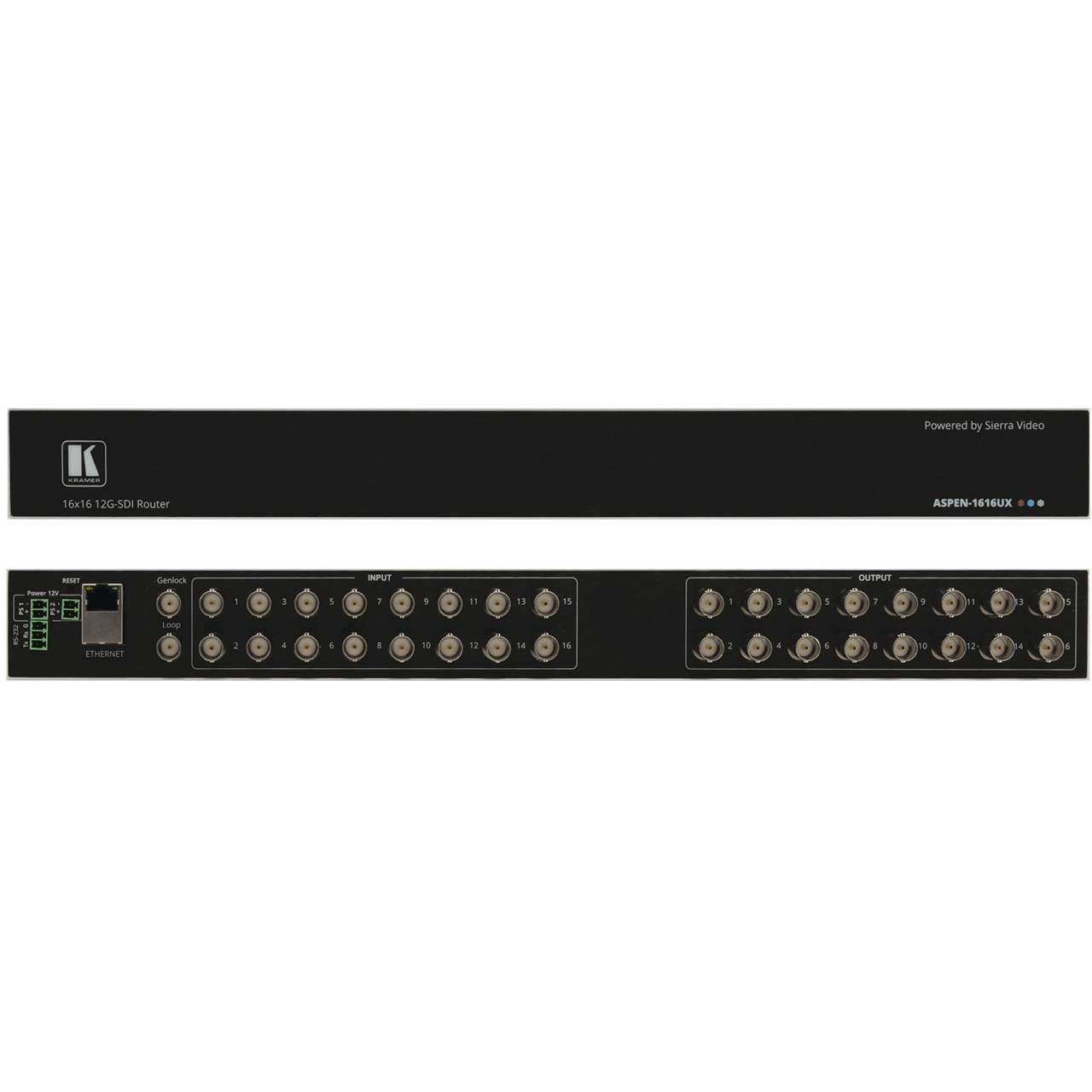

Kramer ASPEN-1616UX 16X16 12G SDI Matrix Switcher

ITEM #: KR-ASPEN-1616UX MFG #: ASPEN-1616UX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,500.00

Our Price:

$2,800.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


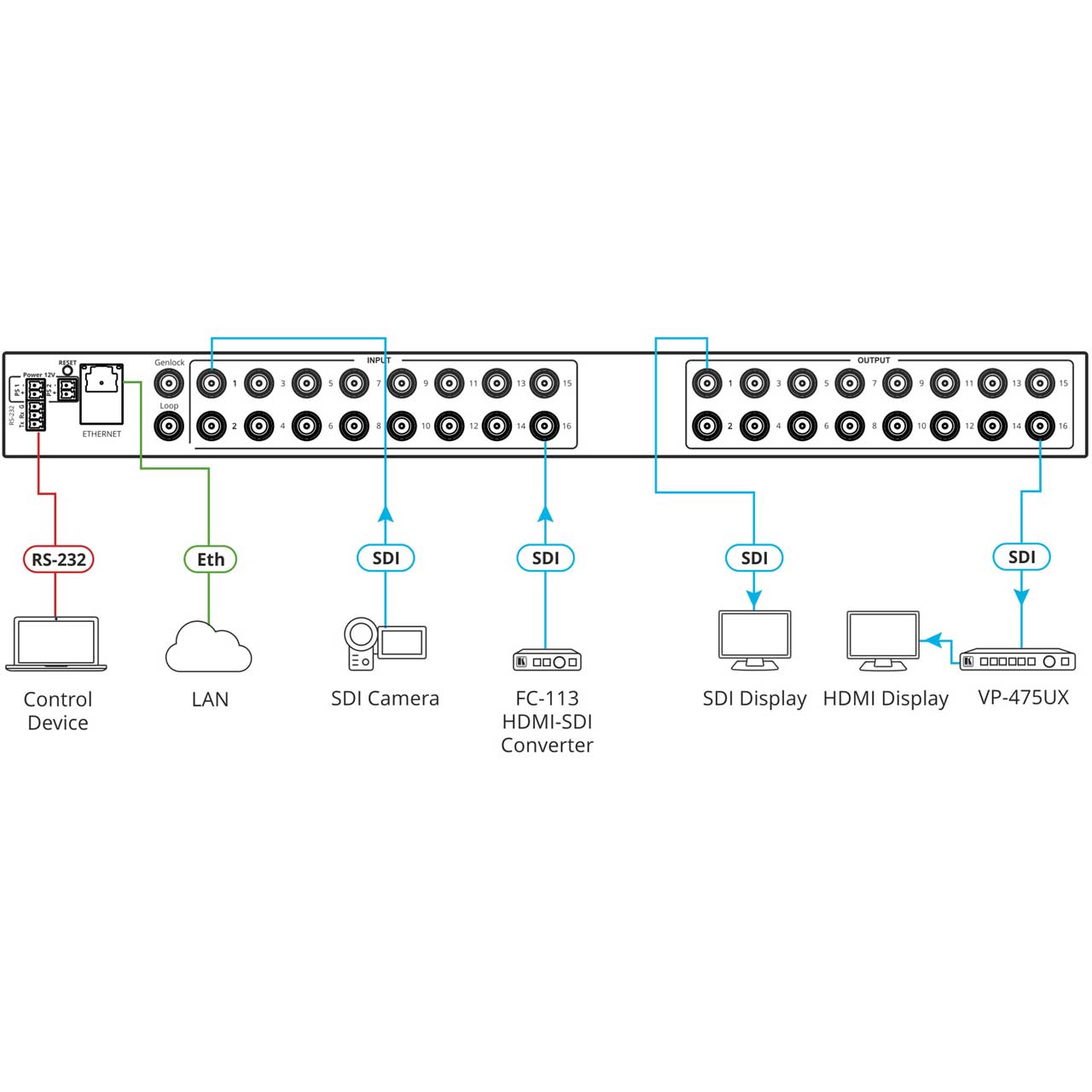

ASPEN-1616UX - Overview

Multi-Standard Operation - SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI

The ASPEN-1616UX by Kramer is a 16x16 matrix switcher for SDI signals of up to 12G. It equalizes the input signal and reclocks the output signal to gain extended-reach signal extension. ASPEN-1616UX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.

Please Note: Kramer recommends Belden 4794R and 4855R 12G SDI coax cables for this switcher.

  • Features:

    • High-Performance Matrix Switcher - Switches 16 12G SDI inputs to 16 12G SDI outputs with a maximum resolution of 4K@60Hz (4:2:2). Features Kramer Equalization & reKlocking™ Technology that rebuilds the digital signal to travel longer distances.
    • HDTV Compatible.
    • SDI Multi Rate Signals - Auto-adapts from 270Mbps to 12Gbps data rates, accepts SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant input signals with video resolution of up to 4K@60Hz (4:2:2) 30bpp. Complying with SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) standards, it supports pass-through of standard embedded audio channels with ancillary ID and metadata information.
    • Extended-Reach Input Extension - Input signal equalization and output signals reclocking to gain extended-reach signal extension. Using high-quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (260ft) for 12G 4K signals. Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using coaxial cables that are not high-quality.
    • Genlock Clean Switching and Versatility - Clean switching when the sources are genlocked to the selected genlock input with a difference of no more than two lines of video. Versatile Genlocking using an analog signal.
    • Convenient and Comprehensive Control - Control the unit using intuitive embedded web pages via the Ethernet or Protocol 3000 API commands via RS-232 serial communication transmitted by a PC, touch screen system or other serial controller. Stores 8 multiple switches as presets to be recalled and executed when needed. Upgrade firmware via the embedded webpages.
    • Compact and Easy to Install - 19" wide and only 4" deep enclosure for rack mounting a unit in a 1U rack space with included rack ears.

  • Specifications:

    • INPUTS
    • 16 12G SDI/HD-SDI/SDI Video: 75Ω on BNC connectors
    • 1 Genlock: Looping on a BNC connector

    • OUTPUTS
    • 16 12G SDI/HD-SDI/SDI Video: 75Ω on BNC connectors
    • 1 Genlock Loop: Passive loop output on a BNC connector

    • VIDEO
    • Standards: 12G-SDI - SMPTE ST-2082-1, 3G HD-SDI - SMPTE 424M, HD-SDI - SMPTE 292M, SDI-SMPTE 259M/344M
    • Max Resolution: 4K@60Hz (4:2:2)
    • Max Bandwidth: 12Gbps

    • EXTENSION LINE
    • SD Signals: Up to 300m
    • 1.5G HD Signals: Up to 200m
    • 3G Signals: Up to 100m
    • 6G Signals: Up to 100m
    • 12G Signals: Up to 80m
    • Coupling: DC

    • USER INTERFACE
    • Controls: Remote RS-232, Ethernet, web pages

    • POWER
    • Consumption: 12V DC, 1.35A
    • Source: 12V DC, 5A

    • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: 0° to +40°C (32° to 104°F)
    • Storage Temperature: -40° to +70°C (-40° to 158°F)
    • Humidity: 10% to 90%, RHL non-condensing

    • STANDARDS COMPLIANCE
    • Safety: CE
    • Environmental: RoHs, WEEE

    • ENCLOSURE
    • Size: 19", 1U
    • Type: Aluminum
    • Cooling: Fan Ventilation

  • Item Includes:

    • ASPEN-1616UX 16x16 12G-SDI Router
    • Power adapter and cord (1)
    • Rack Ears (1 set)
    • Rubber feet (4)

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063086299
